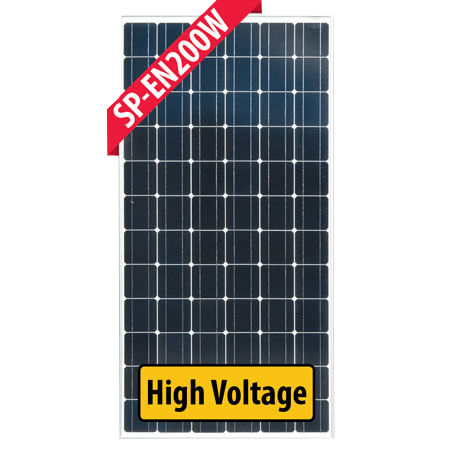

200W Fixed Mono Solar Panel, Available in Silver or Black Frame -
200W Fixed Mono Solar Panel, Available in Silver or Black Frame -
SKU:SP-EN200W
Regular price
$370.00 AUD
Regular price
Sale price
$370.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
Enerdrives 200W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).
PLEASE NOTE: SP-EN200W-24 are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Specifications
| Enerdrive Part Number | SP-EN200W |
|---|---|
| Max Power Pm(W) | 200 |
| Power Tolerance % | - 1% ~ + 3% |
| Max Power Voltage Vm(V) | 37.30 |
| Max Power Current Im(A) | 5.37 |
| Open Circuit Voltage Voc(V) | 43.7 |
| Short Circuit Current Isc(A) | 6.05 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 1580 x 808 x 40 |
| Weight (kg) | 15 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
