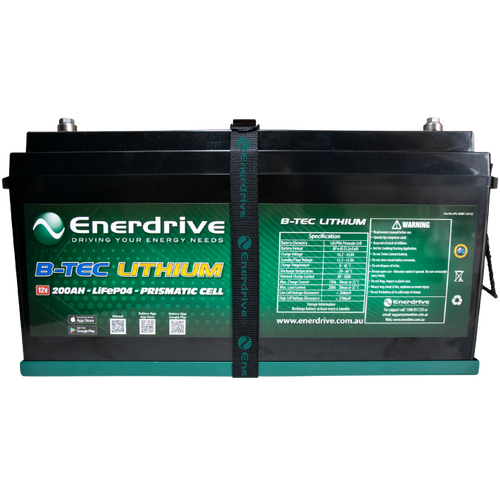

Enerdrive | Dometic B-TEC 12V 200Ah G2 Lithium Battery

Enerdrive ePOWER B-TEC 200Ah Lithium Battery Only

The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 Year full replacement warranty. The ePOWER B-TEC is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Features:

• BMS restart button for easy recovery.
• RS485 communications port for advanced system integration.
• Raised terminals for 360 degree cable connections.
• Re-designed battery case for easy serviceability.
• Battery box and straps INCLUDED - nothing more to buy!
• Product dimensions 505 x 173 x 265 mm

Smart Phone Monitoring System

The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

Battery Management System

The battery is also equipped with an internal LiFePO4 Battery Management System (BMS) that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Size & Weight Savings
Lithium v AGM Capacities;

•

  200Ah Lithium = 360Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The ePOWER B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

Please Note: The B-TEC battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

SKUEPL-200BT-12V-G2

BrandEnerdrive

GTIN9342616019832

Product CategoryBatteries

Battery Voltage12V

Amp Hours (ah)200

Battery Length (mm)505

Battery Width (mm)172.5

Battery Height (mm)265

Battery Weight (kg)25

Cycle Life (DOD – 80% under controlled conditions)≥ 2000 Cycles

Battery Charge Temperature0 ̴ 45°C

Normal Charge Voltage CV/CC14.20 ̴ 14.60V

Standby (Float) Voltage13.50 ̴ 13.80V

Maximum Charge Current150A @ 25°C for 30mins

Recommended Charge Current for Max Life40~100A

Battery Discharge Temperature-20 ̴ 60°C

Battery Output Voltage Range11.00 ̴ 14.60V

Maximum Discharge Current200A @ 25˚C ±5˚C for 30 mins

Pulse Discharge Current450A for 1.0s

Discharge Cut-off Voltage≤11.20V

Over-Charge Protection Per Cell3.90V ± 0.03V

Over-Charge Release Per Cell3.60V ± 0.05V

Over-Charge Release MethodDischarge below release voltage

Over-discharge Protection Per Cell2.80V ± 0.05V

Over-discharge Release Per Cell3.20V ± 0.05V

Over-discharge Release MethodApply Charge/Voltage ≥12.8V

Battery Manual Reset ButtonYes

Discharge Over Current220A for 30s – 450A for 1s

Protection Reset TimeApprox 10s Auto Release

Battery Discharge Over TemperatureProtection to 65°C ± 5°C, Release at 50°C ± 5°C

Battery Charge Over TemperatureProtection to 55°C ± 5°C, Release at 45°C ± 5°C

Short Circuit ProtectionAuto release after 5s

Case ConstructionHi Impact ABS Plastic

Temperature & Humidity Range≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
