enerdrive

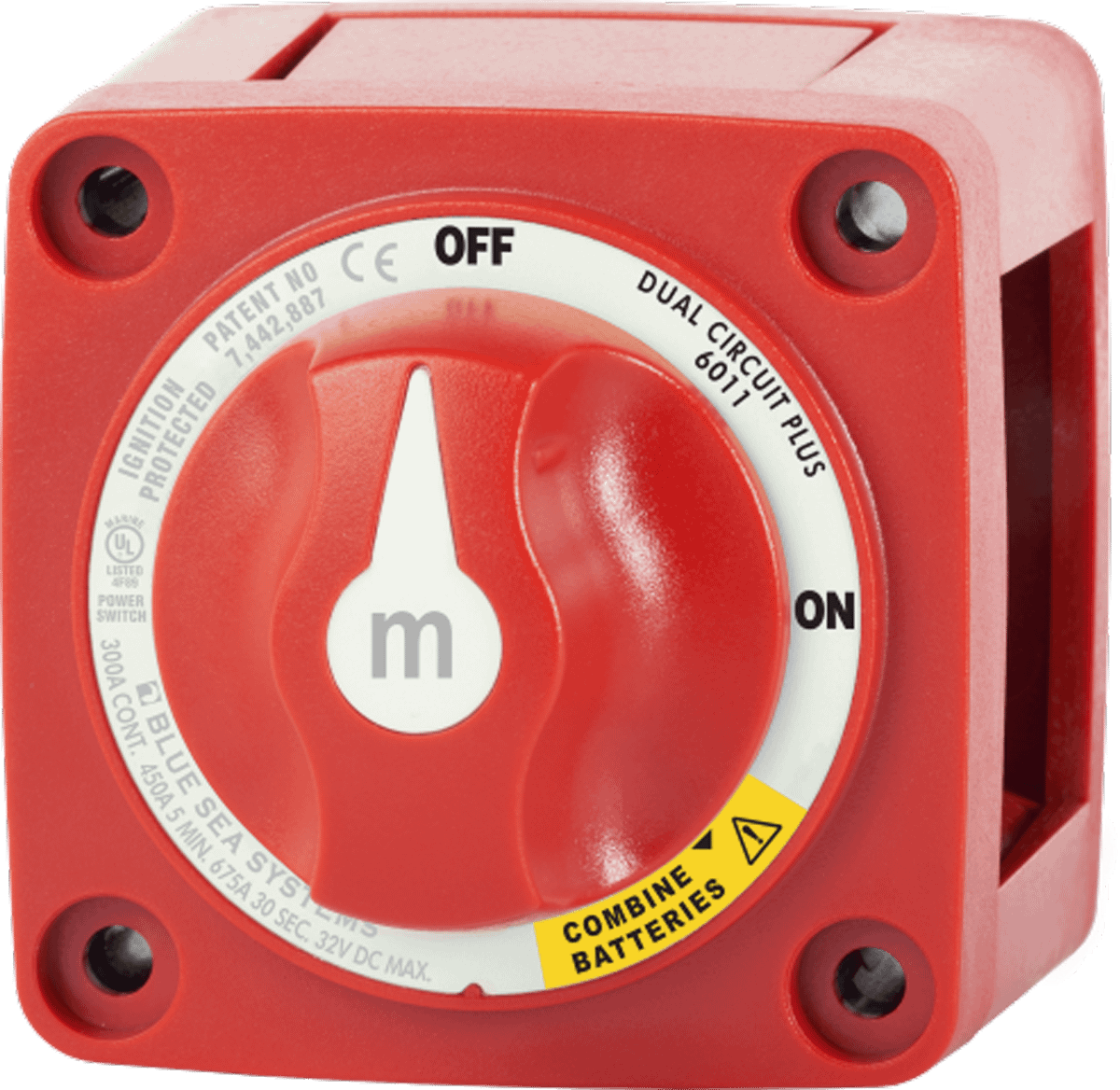

m-Series Mini Dual Circuit Plus™ Battery Switch – Red BS-6011
m-Series Mini Dual Circuit Plus™ Battery Switch – Red BS-6011
SKU:BS-6011
Regular price
$95.00 AUD
Regular price
Sale price
$95.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
m-Series Mini Dual Circuit Plus™ Battery Switch – Red
- Simultaneously switches two isolated battery banks or combines battery banks to all loads
- Make before break contact design allows switching between battery banks without power interruption
Specification
| m-Series Mini Dual Circuit Plus™ Battery Switch – Red | |
|---|---|
| Switch Type | Dual Circuit Plus |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 10 Sec | 1000A |
| Cranking Rating 1 min | 650A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Terminal Stud Size | 3/8″ – 16 (M12) |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.36 kg |
