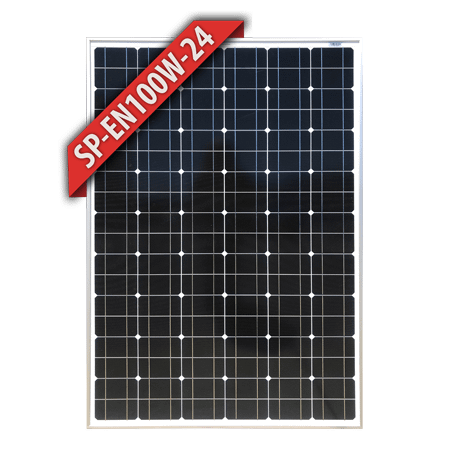

100W-24V Fixed Mono Solar Panel, Available in Silver or Black Frame - SP-EN100W-24

100W-24V Fixed Mono Solar Panel, Available in Silver or Black Frame - SP-EN100W-24

SP-EN100W-24

$190.00 AUD
$190.00 AUD
Sale Sold out

Features

Enerdrives 100W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).

PLEASE NOTE: SP-EN100W-24V are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.

A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.



Specifications

Enerdrive Part Number

SP-EN100W-24

Max Power Pm(W)

100

Power Tolerance %

– 1% ∼ + 3%

Max Power Voltage Vm(V)

36

Max Power Current Im(A)

2.78

Open Circuit Voltage Voc(V)

43.40

Short Circuit Current Isc(A)

3.09

Max System Voltage (VDC)

1000

Dimensions (mm)

1010 x 676 x 35

Weight (kg)

8.1

Test Conditions

1000W/m² , AM1.5 , 25°C

Note: Specifications subject to change without notice.
