enerdrive

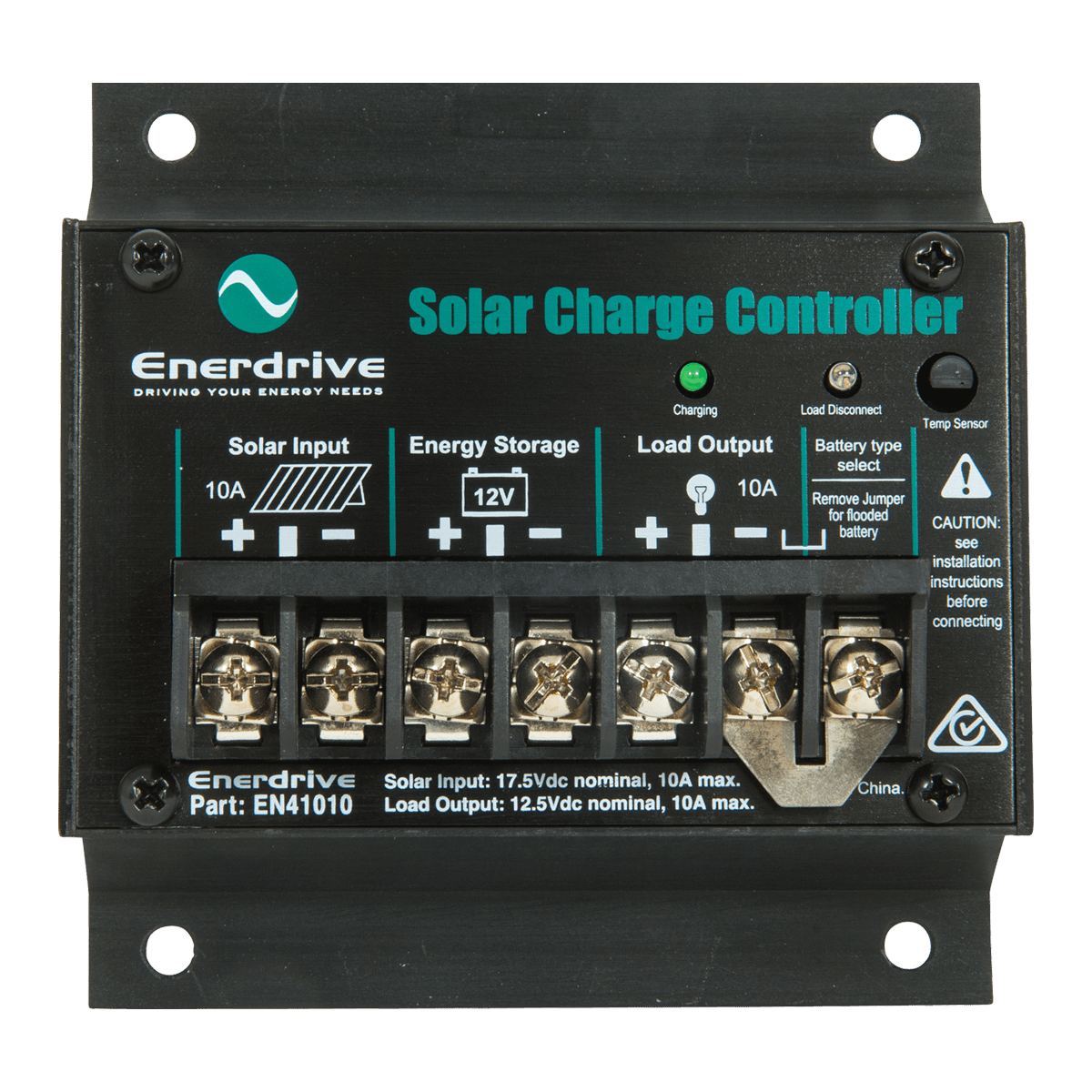

10A Solar Charge Controller EN41010

10A Solar Charge Controller EN41010

EN41010

$98.00 AUD
$98.00 AUD
Sale Sold out

Features

Enerdrive Solar Charge Controller benefits include:

  • Protects battery from overcharge and discharge
  • Only for 12 Volt solar panels and batteries
  • Handles up to 10 Amps of Array Current
  • Handles up to 180 Watts of solar power
  • Maintenance free protection of your solar panel and batteries
  • Maintains battery voltage
  • Maintain 12V batteries in a fully charged state


Product Features:

  • LED status indicator provides quick reference to Charger, Battery and load status
  • Selectable battery type
  • Temperature compensation
  • High precision on voltage set point
  • Wall mountable



Specifications


Enerdrive Part Number

EN41010

EN41020

Battery voltage

12 Vdc

12 Vdc

Max. PV panel open circuit voltage

26 Vdc

26 Vdc

Maximum charge current

10A

20A

Maximum load current

10A

20A

Maximum load current

20 A for 1 minute

40 A for 1 minute

Operational Current (no load & no PV)

<10 mA

<15 mA

Regulated battery charging voltage

Flooded Battery

14.6 Vdc

14.6 Vdc

Sealed Battery

14.2 Vdc

14.2 Vdc

Operational Current (no load & no PV)

<10 mA

<10 mA

Voltage across terminal (PV to Battery)

<0.15 Vdc

<0.15 Vdc

Voltage across terminal (Battery to Load)

<0.10 Vdc

<0.10 Vdc

PV Reverse Polarity Protection

Yes

Battery Overcharge Protection

Flooded Battery

14.6 Vdc

14.6 Vdc

Sealed Battery

14.2 Vdc

14.2 Vdc

Load Overdischarge Protection

<11.5 Vdc

<11.5 Vdc

Load Reconnected Voltage

12.6 Vdc

12.6 Vdc

Battery Chargers Stages

2 Step: Bulk and Float

Recommended Wire Size

#12 AWG

#10 AWG

Operating temperature

-40°C – 60°C

-40°C – 60°C

Dimensions (H x W x L)

3.4 x 10.5 x 10.5 cm

Weight

0.3 Kg

Warranty

2 Years
