enerdrive

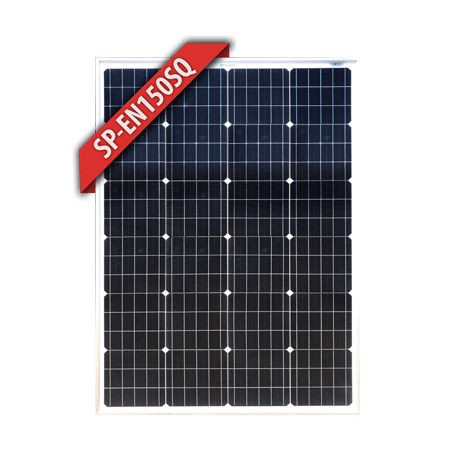

150SQ Fixed Mono Solar Panel, Available in Silver or Black Frame - SP-EN150SQ
150SQ Fixed Mono Solar Panel, Available in Silver or Black Frame - SP-EN150SQ
SKU:SP-EN150SQ
Regular price
$270.00 AUD
Regular price
Sale price
$270.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Specifications
| Enerdrive Part Number | SP-EN150SQ |
|---|---|
| Max Power Pm(W) | 150 |
| Power Tolerance % | ± 3% |
| Max Power Voltage Vm(V) | 18.50 |
| Max Power Current Im(A) | 8.11 |
| Open Circuit Voltage Voc(V) | 22.5 |
| Short Circuit Current Isc(A) | 8.80 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 1210 x 808 x 35 |
| Weight (kg) | 11.5 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
