3875kg Formula 4x4 F4R GVM upgrade kit for Toyota LandCruiser Prado 250 Series 2024-on. This engineered suspension package increases the vehicle's certified GVM and provides a nominal 50mm lift for loaded vehicles.

GVM limits

• GVM: 3875kg (original 3100kg)
• Front axle limit: 1745kg (original 1605kg)
• Rear axle limit: 2130kg (original 1860kg)

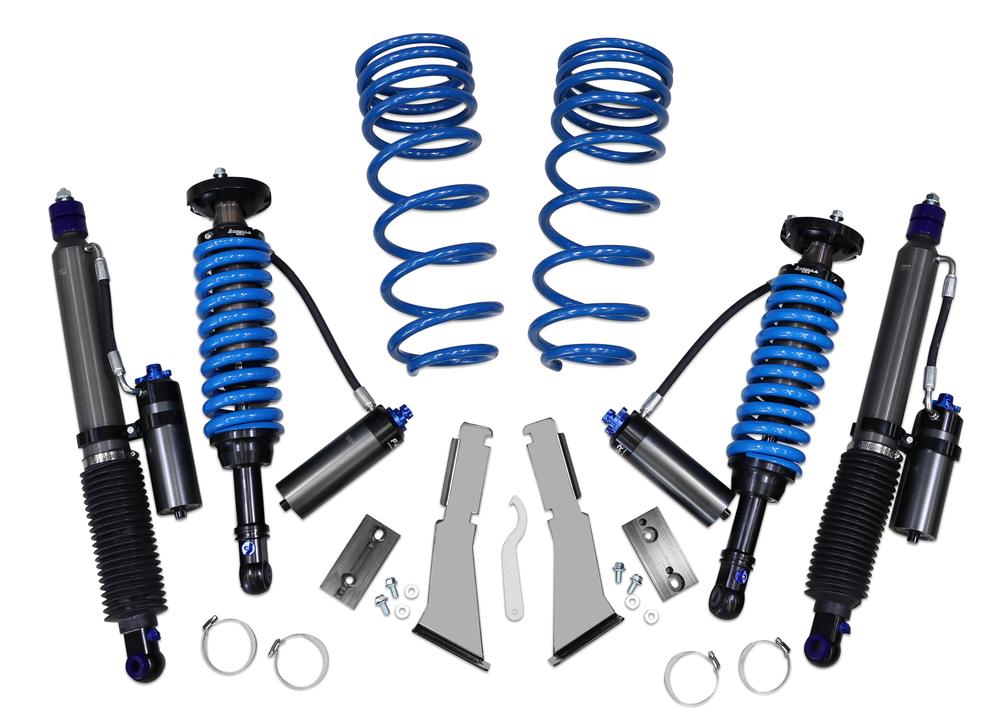

Kit contents

• Formula F4R front shock absorber kit 91029 × 1
• Formula F4R rear shock absorber kit 92029 × 1
• Formula 4x4 coil springs FCS-804-F4R
• Category 6 indicators 77ACMB-LC30022/2KIT × 1
• Tyre placard LC250PLACARD × 1
• Rear differential insert kit LC250DI-K × 1
• Load capacity label LC250LOADCL × 1

Critical installation requirement

This GVM kit requires engineering approval, certification and installation by an authorised workshop. It must only be supplied to the approved installer handling the certification. The post-registration option includes the applicable certification and administrative handling charge.

Key specifications

• Nominal 50mm lift
• 3-way adjustable front and 2-way adjustable rear remote-reservoir dampers
• 8 low-speed compression, 6 high-speed compression and 12 rebound settings
• 22mm damper shafts and 7075 aluminium bodies
• Does not suit adaptive variable suspension
• EAN: 9317746077229

Downloads

Lift Kit Installation Instructions (PDF)

SKU: PRADO-250GVM-F4R Certified GVM: 3875kg Front axle limit: 1745kg Rear axle limit: 2130kg EAN: 9317746077229 Authorised installation and certification required.

Formula F4R front kit 91029 × 1 Formula F4R rear kit 92029 × 1 Formula coils FCS-804-F4R Category 6 indicators Tyre placard Rear differential insert kit Load capacity label.

Warranty: Formula 4x4 lift kit – 5 years / unlimited kilometres, subject to manufacturer terms.
