Product Overview
s P40 Series Valves With Middle-High Pressure Monoblock Construction Is Developed Based On Europe Technology. Load Drop Check Valve For Each Spool. Inner Relief Valve: The Relief Valve Inside The Valve Body Is Able To Adjust The Hydraulic System Working Pressure. Oil Way: Parallel Circuit, Power Beyond Option Control Way: Manual Control, Pneumatic Control, Hydraulic And Electric Control For Optional. Valve Construction: Monoblock Construction, 1-6 Levers. Spools - Double Acting A & B Ports Blocked In Neutral (Other Spools On Request) Control Type - Manual And Detent, Pneumatic Control, Electric And Pneumatic Control, Hydraulic And Electric Control Available On Request. Technical
Specifications
| Type |
P40 |
| series Hydraulic valves Nominal Flow |
40L/min |
| Max Flow |
50L/min |
| Rated Pressure |
200bar |
| Max Pressure |
250bar |
| Ports |
P and T Ports = 1/2" (BSPP), A and B Ports = 3/8" (BSPP) |
| Control Type |
Manual - Spring Centred (Detent, pneumatic, hydraulic, |
| electro-hydraulic on request) Spool function |
Closed Centre (A & B Blocked in Neutral) (Motor |
| Spool and Single Acting Spools on request) Circuit type |
Parallel |
| Structure |
Monoblock structure, 1-6 |
| sections Spool stroke |
±5mm Specifications Body - Cast Iron Relief Valve Setting - 180Bar (250Bar Max) Temperature Range - 15deg C to + 80 Deg C Features Individually Tested 1 To 6 Spool Options Levers Can Be Rotated To Multiple Positions. Adjustable Relief Valve Other Options Available Pressure Beyond Option Single Acting Spool Motor Spool Single Detent Double Detent Cable Control Joystick Option (1mtr to 5mtr lengths) Multi Axis Joystick Lever Option (Mounts Directly Onto The Valve) |
Vehicle Fitment

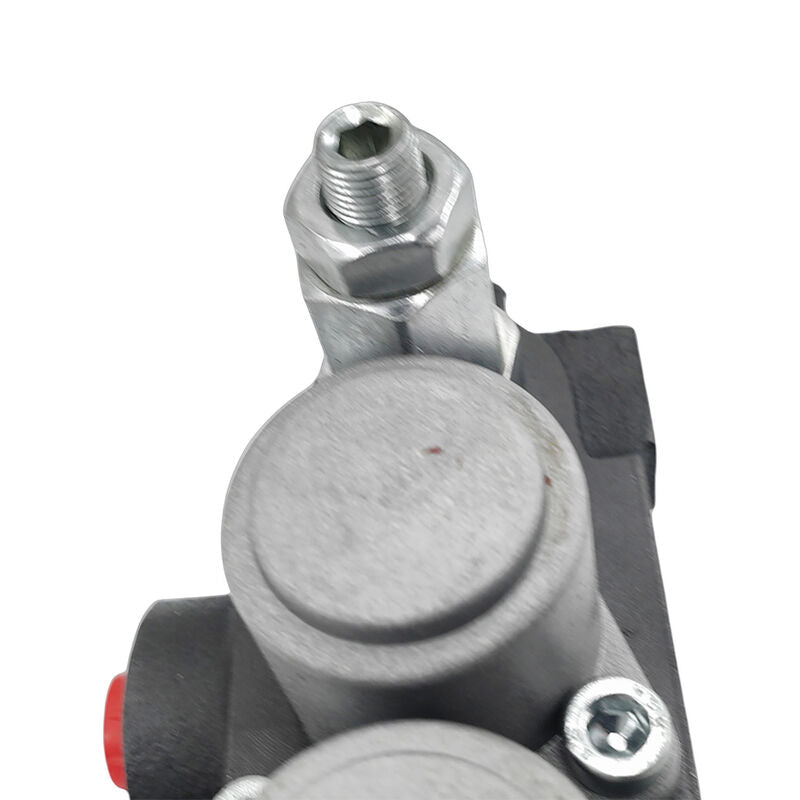

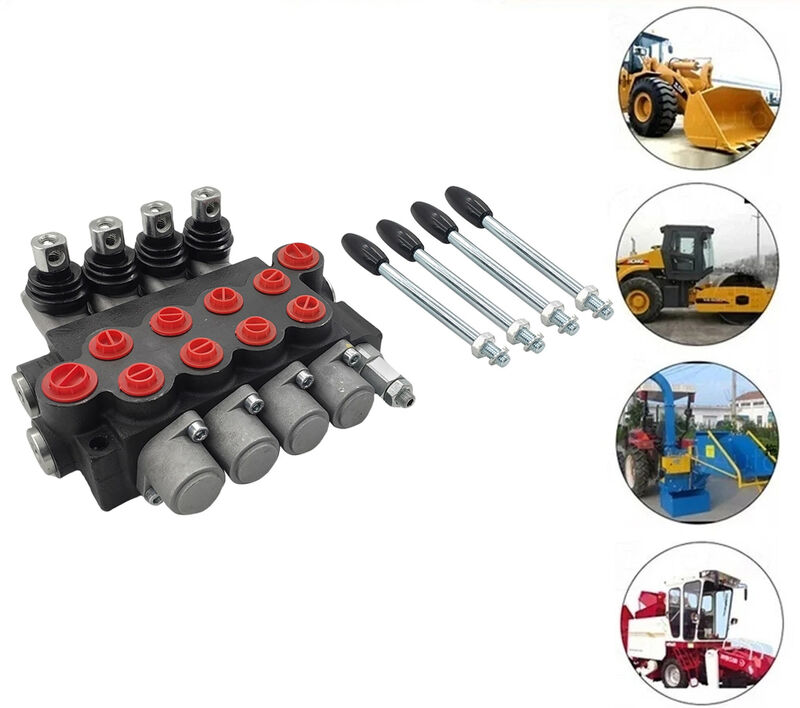

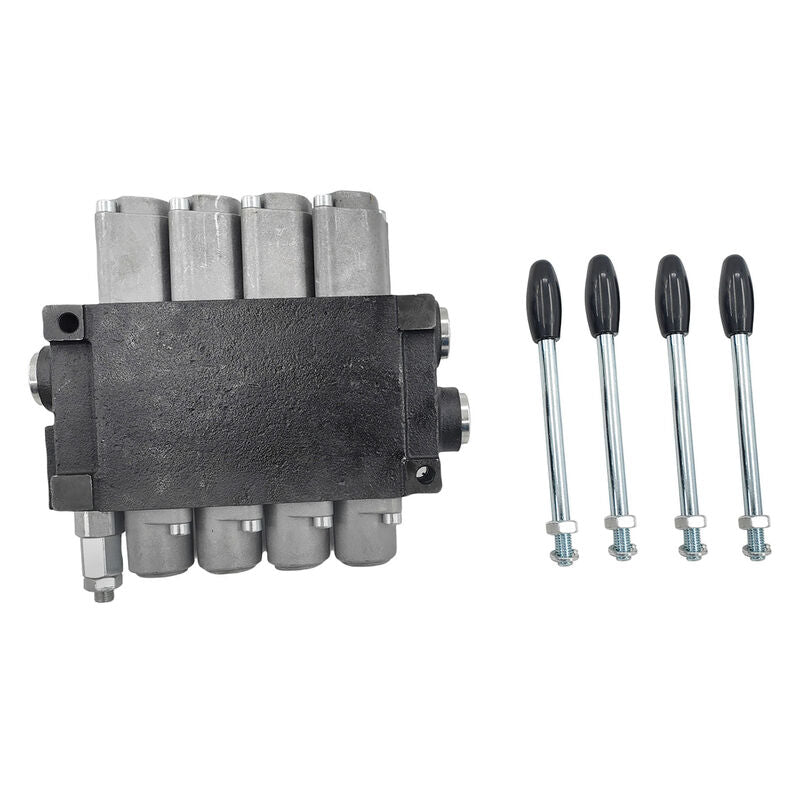

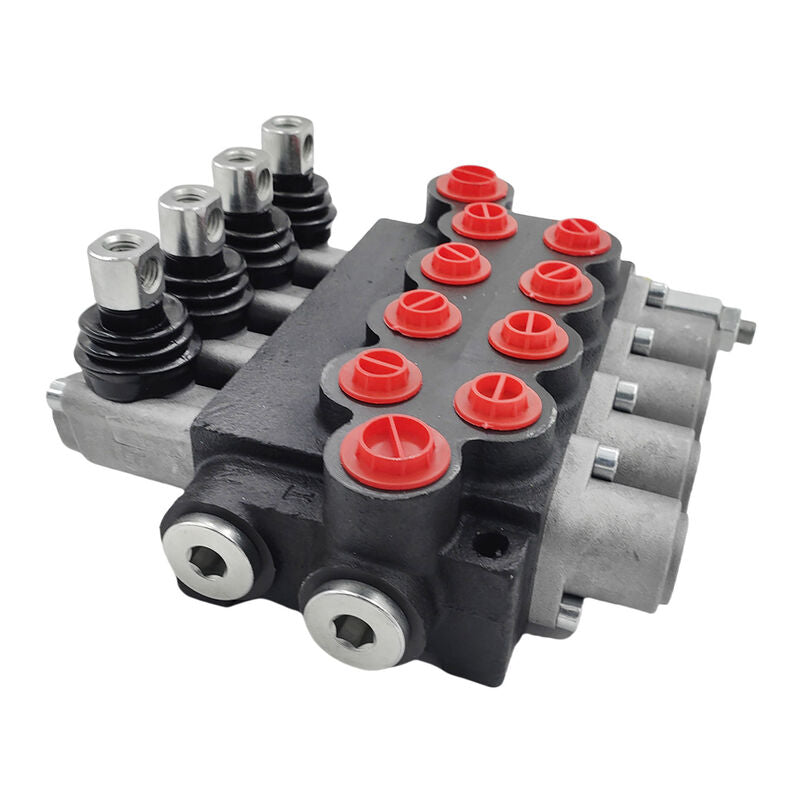

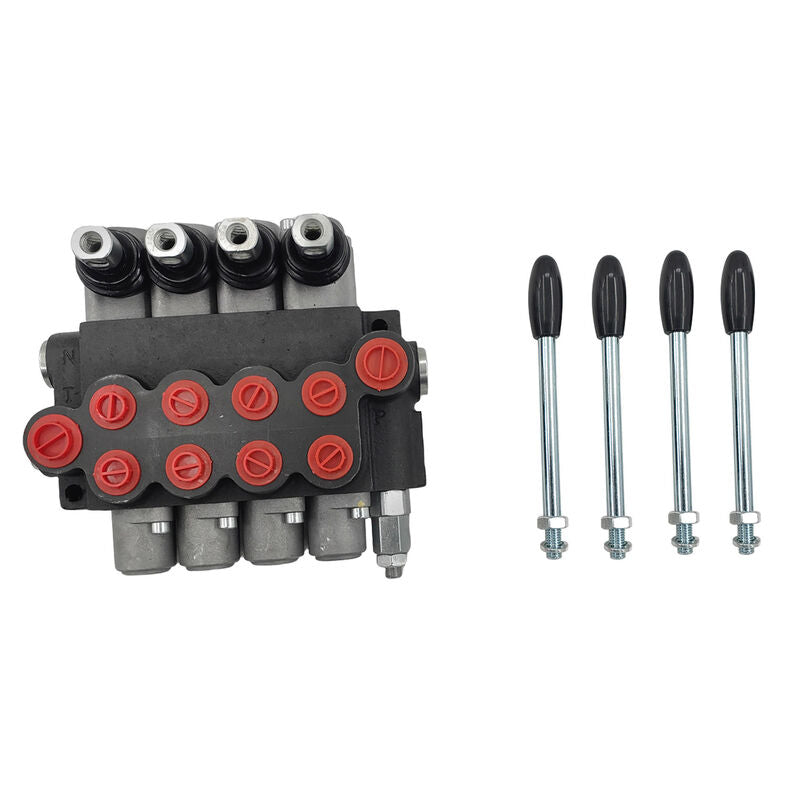

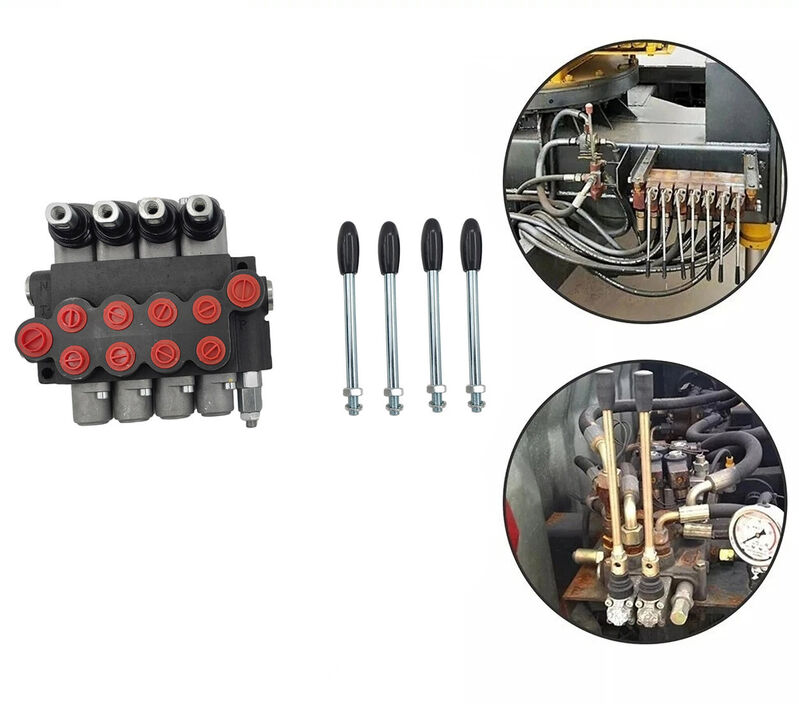

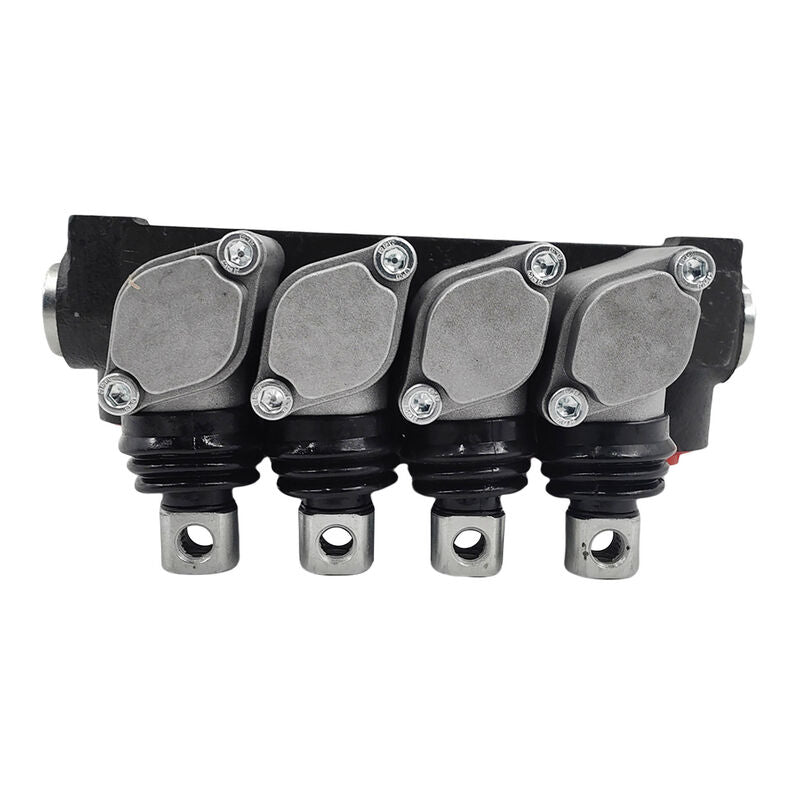

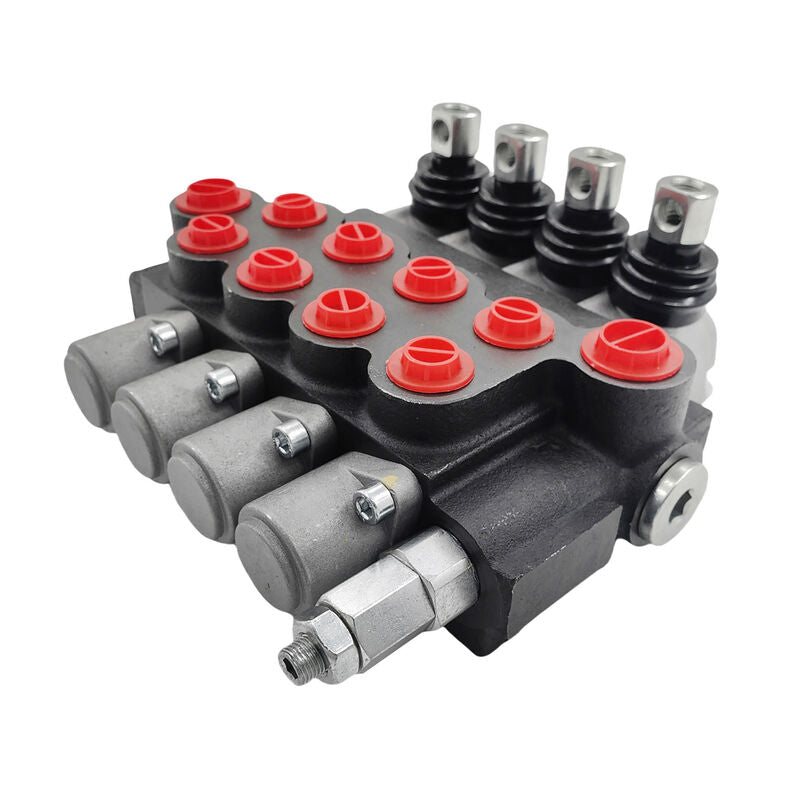

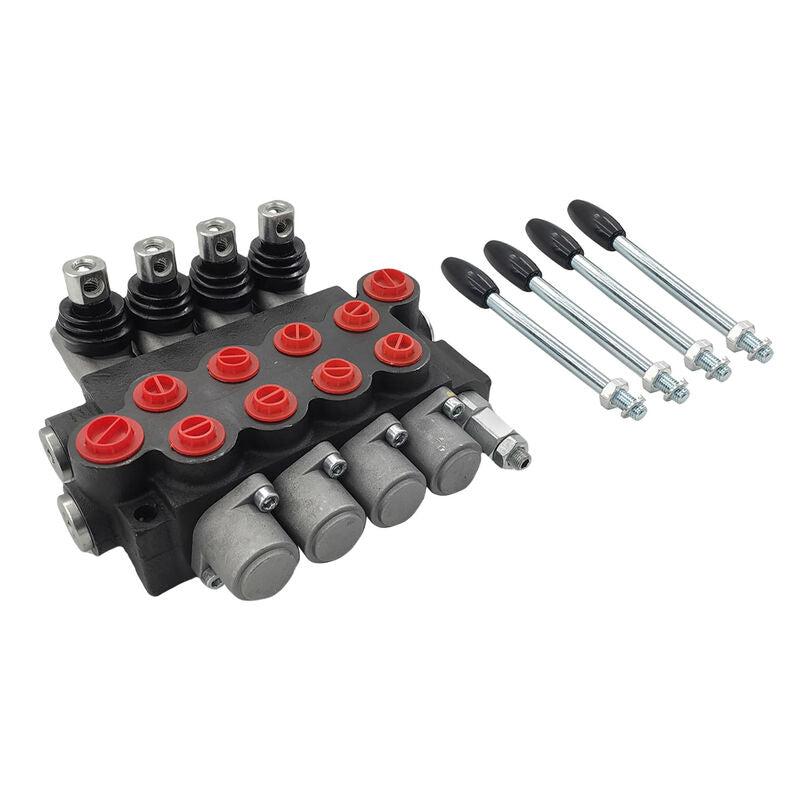

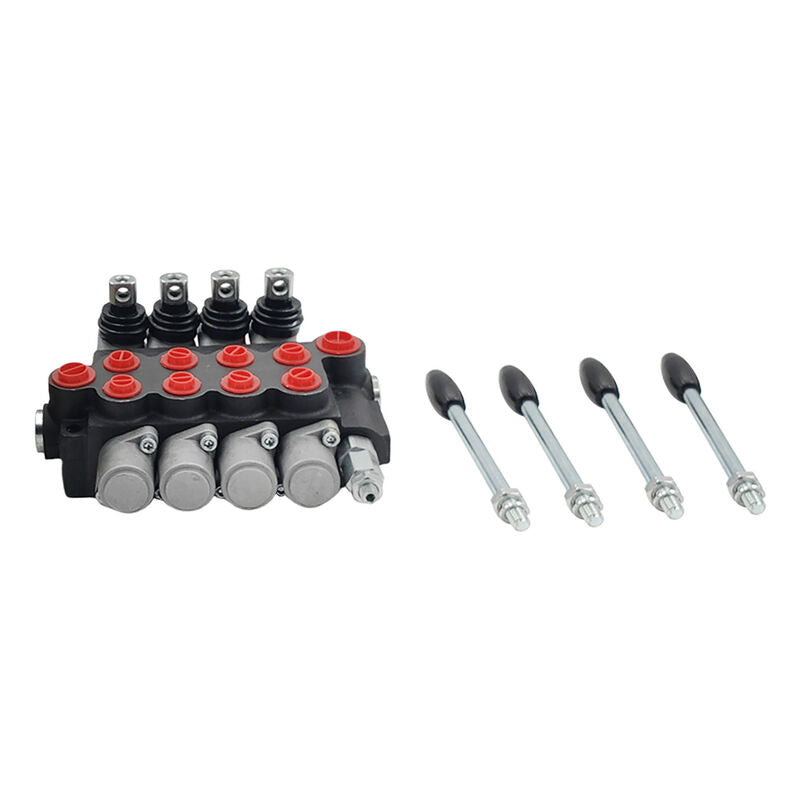

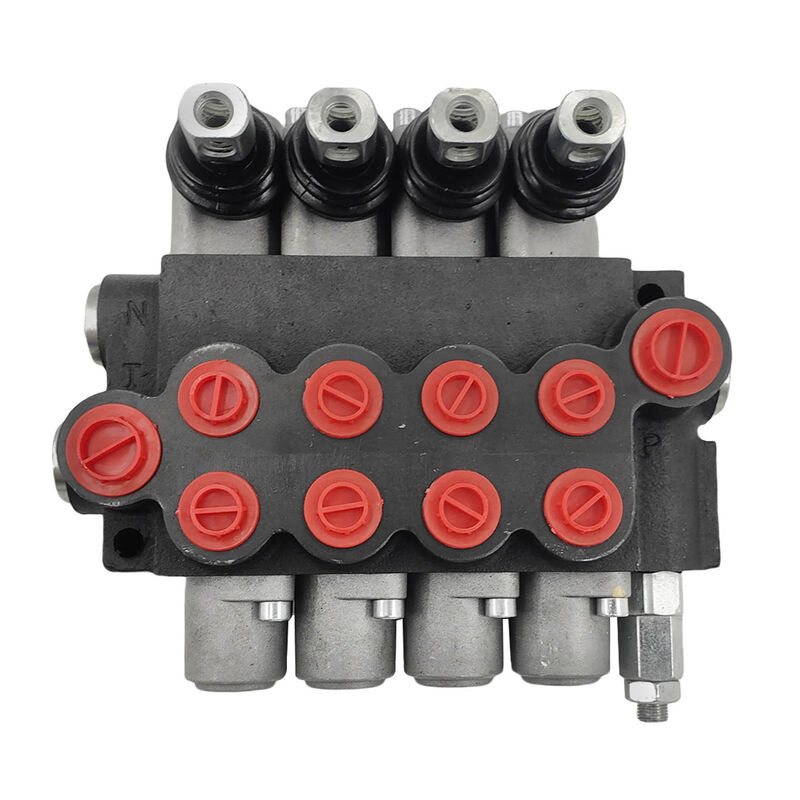

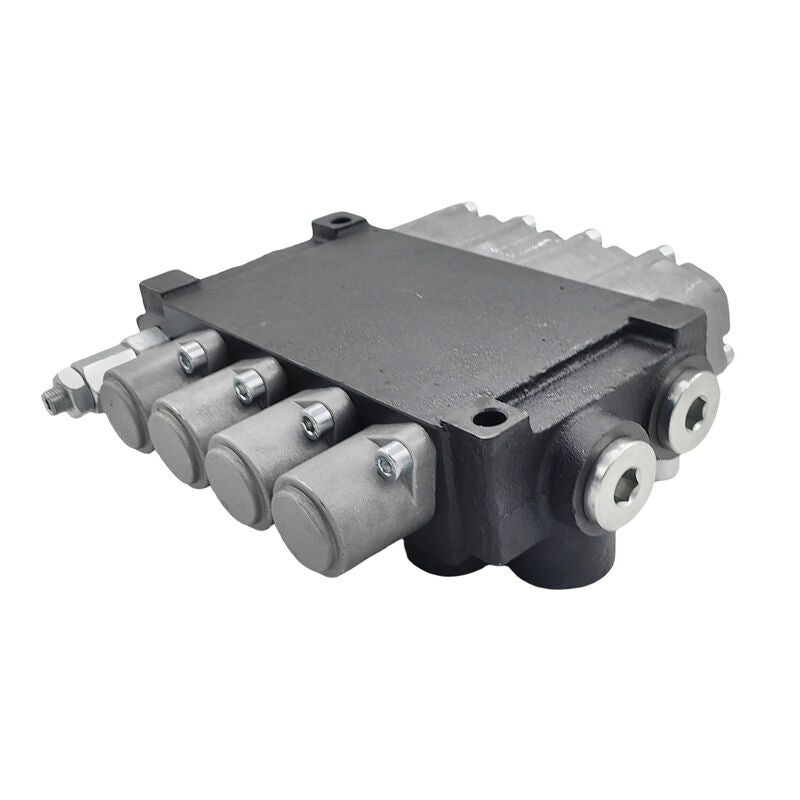

- 4 Spool P40 Hydraulic Directional Control Valve
- Fit For Tractor Loader Wood Chipper Excavator Forklift
Package Details
-
Package size (L × W × H): 25 × 24 × 11 cm
-
Packaged weight: 8.3 kg
-
Shipping volume: 0.0066 m³
