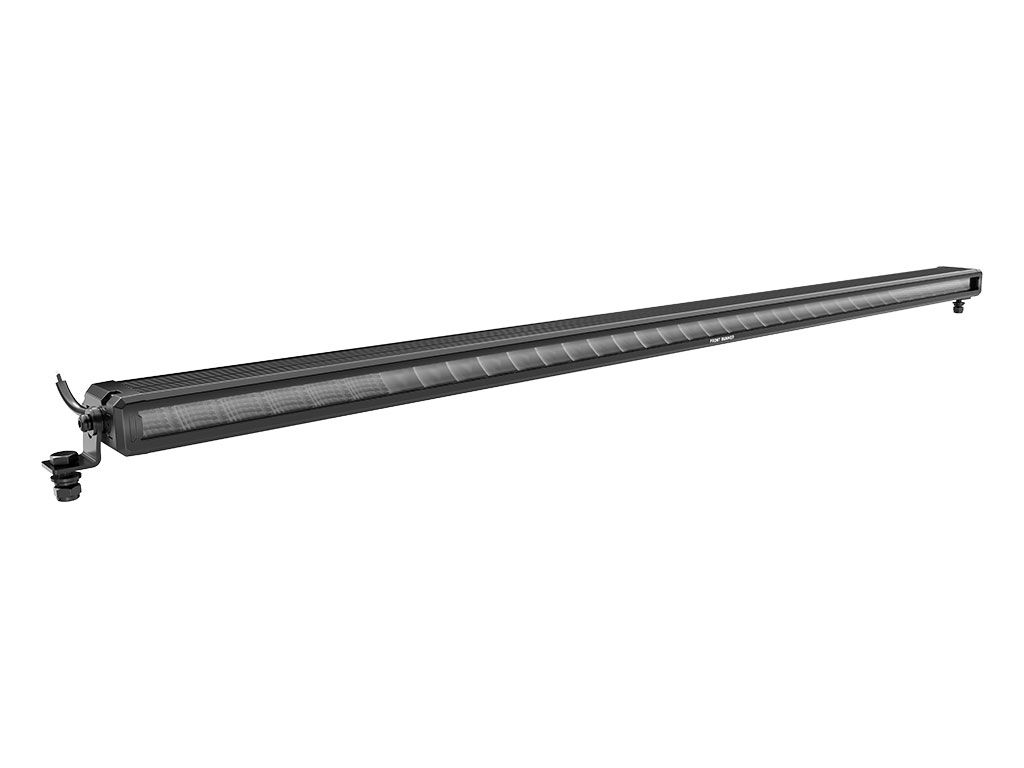

Extend your adventures into the night with a high-quality light bar. This 40” LED Light Bar features 36 intense, high-performance LEDs and is a versatile tool for driving tricky off-road trails at night (check your local regulations) and for lighting up a campsite. It mounts easily to your Front Runner Roof Rack and comes equipped with an integrated driver and thermal management system, which regulates the temperature of the LEDs, eliminating the risk of overheating.

• A 40” LED Light Bar featuring 36 intense, high-performance LEDs, with OSRAM technology, that reaches a distance of 525m and delivers 6000 lumens.
• The 5700 Kelvin, light intensity is distributed as a combo beam pattern- near and far-field illumination.
• The intelligent reflector design diverts the light from the LEDs so that oncoming traffic is only indirectly exposed to the light.
• To accommodate its wide range of uses, the searchlight is equipped with a durable polycarbonate lens.
• The integrated driver and thermal management system, measures and regulates the temperature of the LED, eliminating the risk of overheating and aiding in the longevity of its lifespan.
• Full LED polarity protection automatically breaks the circuit in the event of excess voltage, which ensures a long lifespan.
• Individual installation is possible due to the VX1000-CB SM's double ECE certification.
• The 12V/24V LED light bar is ECE-compliant and versatile in application and is not limited to automotive use only.
• Special regulations and legislation within each country should be taken into consideration before use.

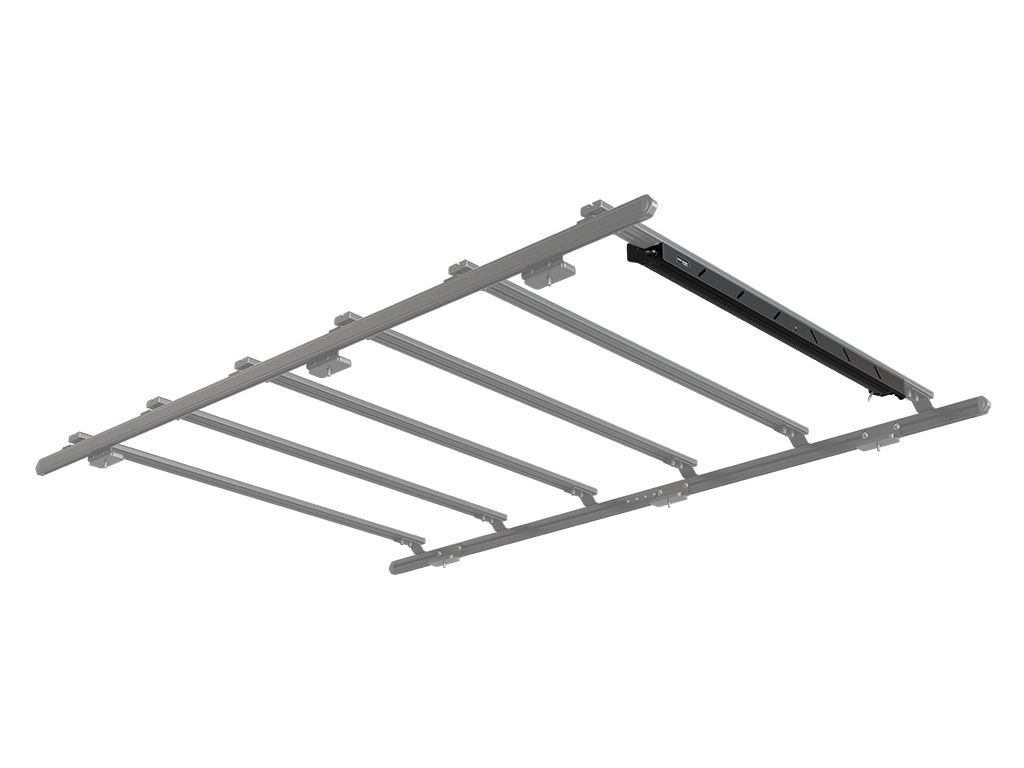

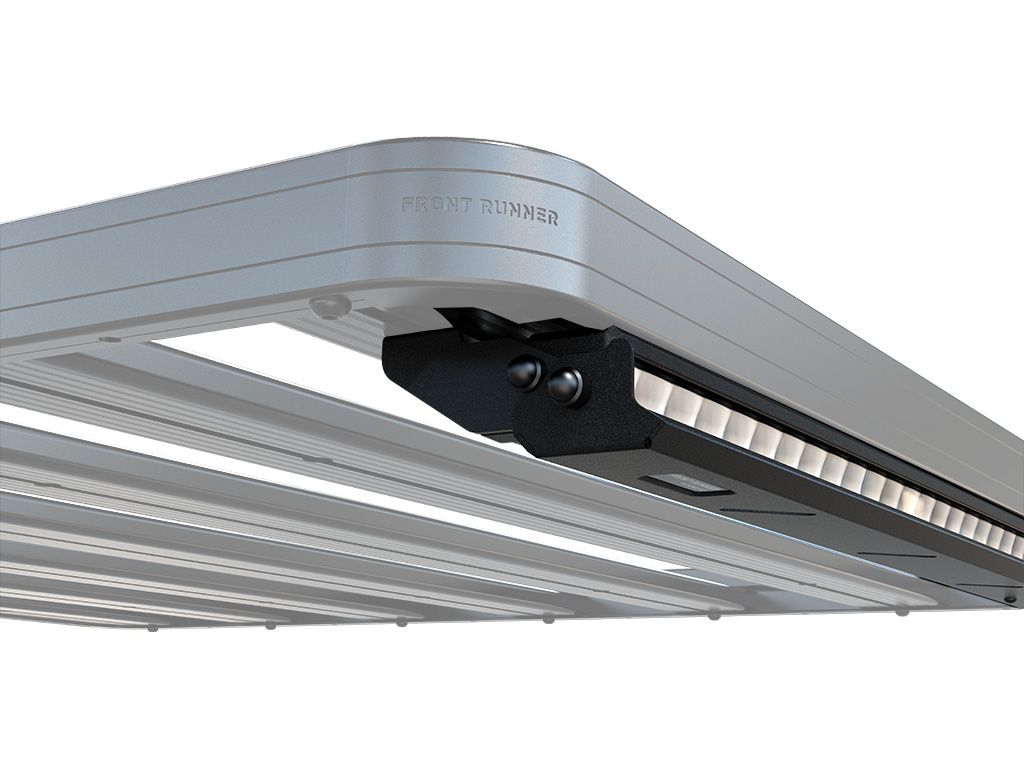

• Secures to your Front Runner Roof Rack with supplied 40" LED Light Bar VX1000-CB SM Mounting Bracket.

Consists of:
1 x Lightbar
1 x Set of Front Mount Brackets (1 Left Hand side & 1 Right Hand side)
1 x Set of Underneath Mount Brackets (1 Left Hand side & 1 Right Hand side)
1 x Front Cover
Installation Hardware
Fitting Instructions

Materials used:
Black powder coated steel and aluminium mounting brackets

Product Dimensions:
Light Bar:
1031mm (40.6") L x 67mm (2.6") D x 35mm (1.4") H

Light Bar with Bracket:
1070mm (42.1") L x 102mm (4") W x 58mm (2.3") H

Weight:
5.56kg (12.3lbs)

Special Notes:
Product type: On-road and off-road
SKU: VX1000-CB SM
LED supplier: OSRAM
Lumens: 6000
12/24V
Color temperature: 5700 K
Lifespan Tc: 5000 h
Guarantee: 5 years
Double ECE-Certification: 2x R112
Reference Number: (37,5 + 37,5)

Installation Instructions for RRAC217 (EN)

Installation Instructions PDF
