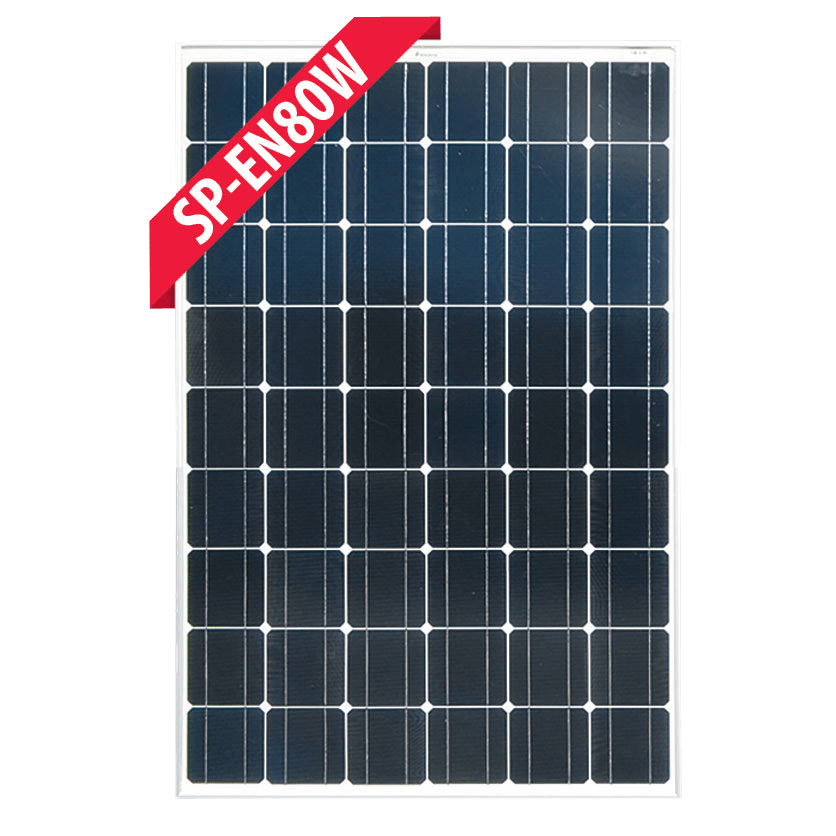

80W Fixed Mono Solar Panel, Available in Silver or Black Frame - SP-EN80W
80W Fixed Mono Solar Panel, Available in Silver or Black Frame - SP-EN80W
SKU:SP-EN80W
Couldn't load pickup availability
Features
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Specifications
|
Enerdrive Part Number |
SP-EN80W |
|---|---|
|
Max Power Pm(W) |
80 |
|
Power Tolerance % |
– 1% ∼ + 3% |
|
Max Power Voltage Vm(V) |
17.50 |
|
Max Power Current Im(A) |
4.58 |
|
Open Circuit Voltage Voc(V) |
22.40 |
|
Short Circuit Current Isc(A) |
5.10 |
|
Max System Voltage (VDC) |
1000 |
|
Dimensions (mm) |
780 x 676 x 35 |
|
Weight (kg) |
7.9 |
|
Test Conditions |
1000W/m² , AM1.5 , 25°C |
