enerdrive

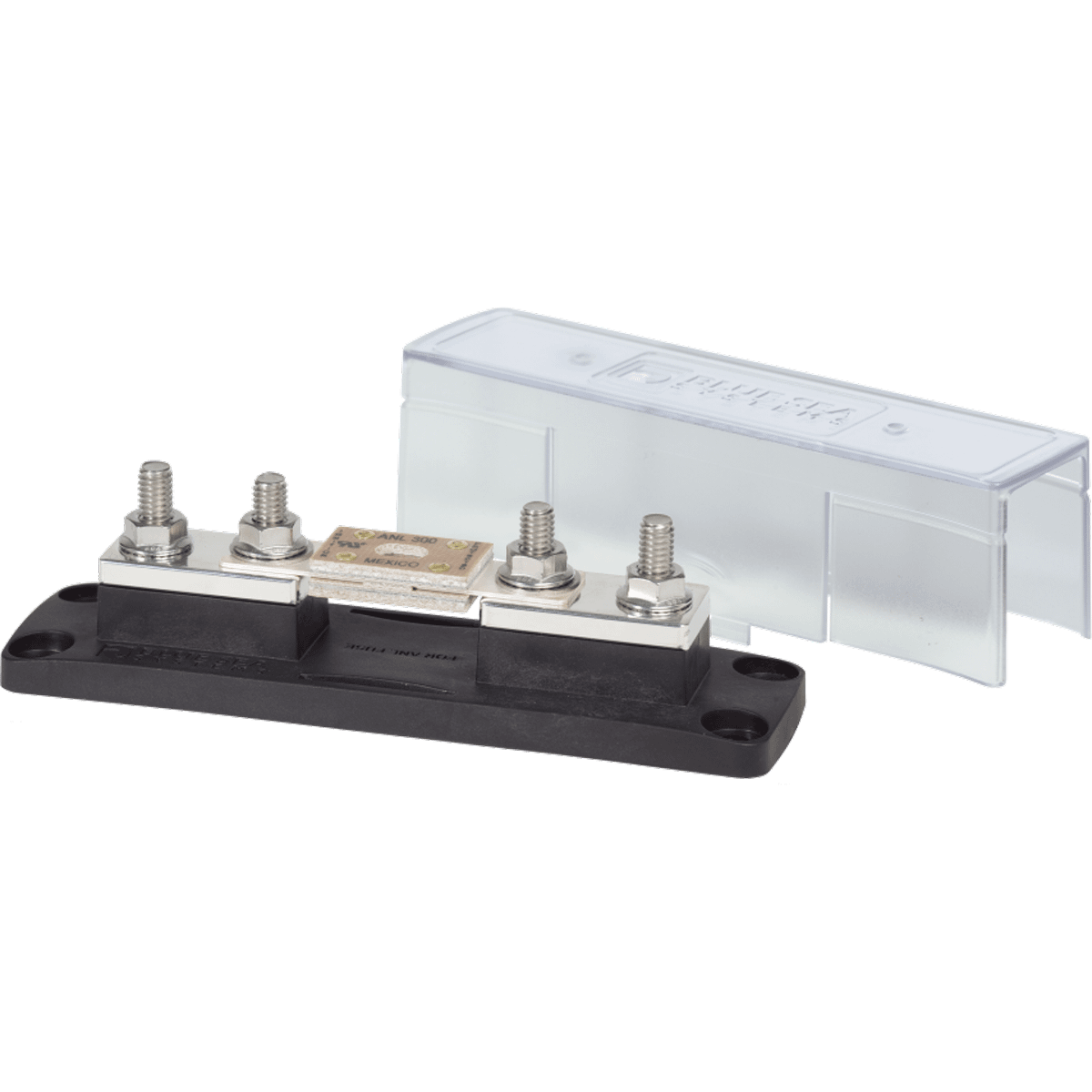

ANL Fuse Block with Insulating Cover – 35 to 750A BS-5503
ANL Fuse Block with Insulating Cover – 35 to 750A BS-5503
SKU:BS-5503
Regular price
$99.00 AUD
Regular price
Sale price
$99.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
ANL Fuse Block with Insulating Cover – 35 to 750A
- Cover included
- Accepts 5/16″ (M8) ring terminals
- For use on systems up to 32 Volts DC
- Swing out design allows replacement of the fuse without removing fasteners
- Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
- UL 94-V0 base resists high heat
- Insert molded studs ensure secure fuse mounting
- Insulating cover satisfies ABYC/USCG requirements
- Cover breakouts allow wire access in any direction
- Fuse sold separately
Specifications
| ANL Fuse Block with Insulating Cover – 35 to 750A | |
|---|---|
| Maximum Voltage | 32V DC |
| Base Material | Reinforced Polycarbonate |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Maximum Cable Size | 4/0 AWG |
| Maximum Torque | 170 in-lb (12.09 Nm) |
| Terminal Stud Size | 5/16″ – 18 (M8) |
| Weight | 0.48 kg |
