enerdrive

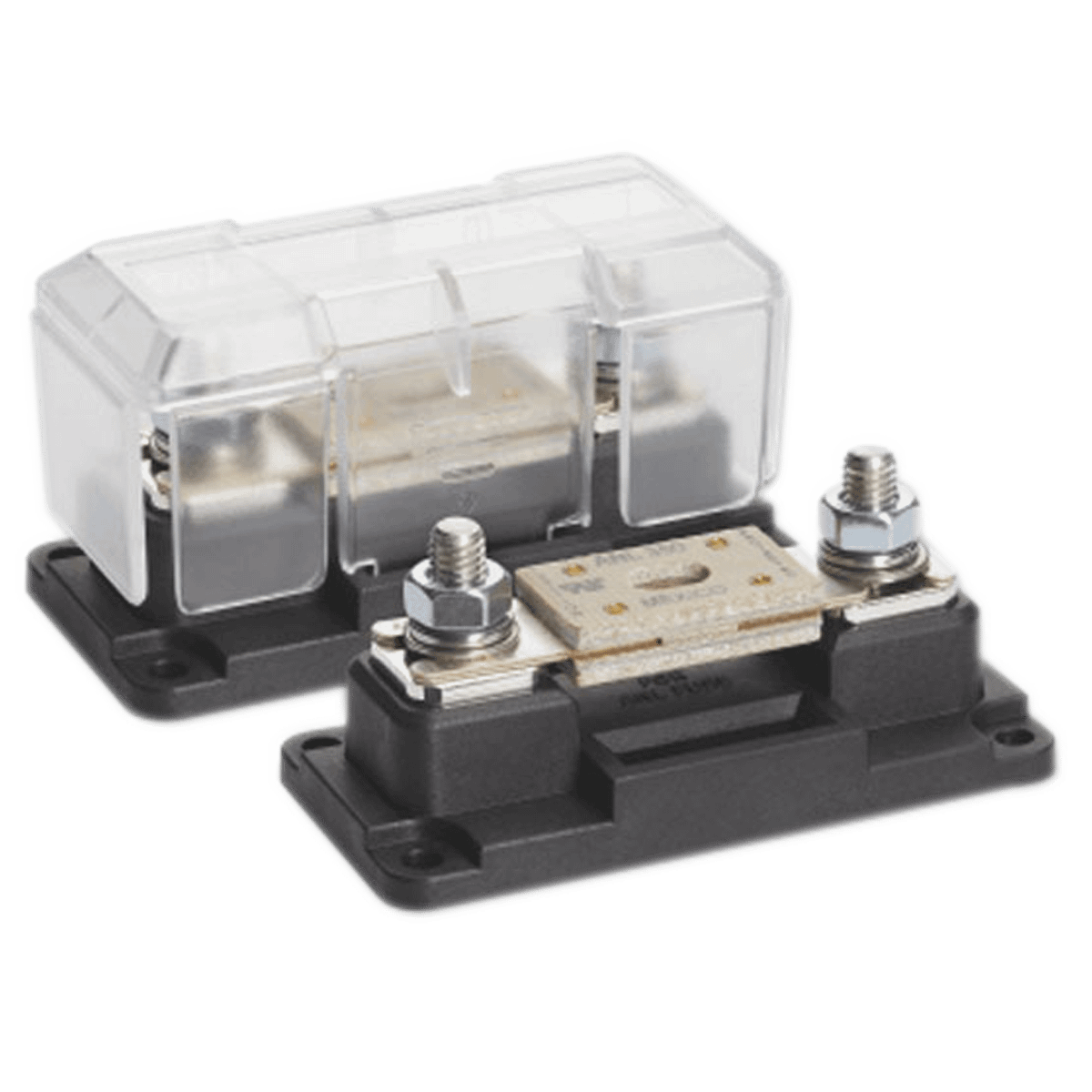

ANL Fuseholder (600A) DCM-5073550

ANL Fuseholder (600A) DCM-5073550

DCM-5073550

$86.00 AUD
$86.00 AUD
Sale Sold out

Features

  • Stainless steel studs, nuts and washers for optimal corrosion resistance
  • Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
  • Special fiber reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
  • Unique grid optimized footprints allow space saving arrangements of multiple products
  • Common interconnection heights for easy combining of multiple products using link plates (except Mega and ANL (300A) fuseholders)
  • Robust transparent covers with breakouts to allow wire access from any direction
  • Smart terminal design allows dual mirrored cable lug connections
  • Easy in-system connection access due to top locked covers (except Mega and ANL (300A) fuseholders)

Specifications

Model Part No. Grid size1) Fuse range2) Max. Voltage Connection stud size
DCM ANL Fuseholder (600A) DCM-5073550 1 x 2 35 .. 600A 50V M10

1) Compatible with Littelfuse® ‘CNN’ and ‘CNL’ plus Cooper Bussmann® ‘ANL’ and ‘ANN’ fuses
2) Higher voltages may require additional safety measures
