ATI EXTENDED BRAIDED BRAKE LINE KIT

COMPATIBILITY:

• FORD RANGER 2011 - 2022
• MAZDA BT50 2011 - 2020

It is common for the brake lines of most vehicles to become tight when lifted above 2 inches, if not extended they are left prone to fatigue and failure. The ATI braided brake lines will not expand under high pressure and temperature, this allows a consistent line pressure giving a firmer and more efficient brake system operation, eliminating that 'spongy' pedal feel.

Features:

• Improved safety with enhanced performance
• Eliminates spongy pedal feel under heavy braking
• Can reduce braking distance during a panic stop
• Compatible with all approved brake fluids
• Abrasion and corrosion resistant
• ADR 42/04 compliant
• 5 year warranty

Specifications:

• Length: 560mm (rear) 710mm (front)
• Hose Inner Material: PTFE Teflon
• Hose Outer Material: 304 stainless steel with PVC outer cover
• Fitting Material: Steel
• Temperature Range: -70°C to 260°C
• Inside Diameter: 3.2mm
• Outside Diameter: 7.5mm
• Maximum Working Pressure: 3500PSI
• Burst Pressure: 12550-13500PSI

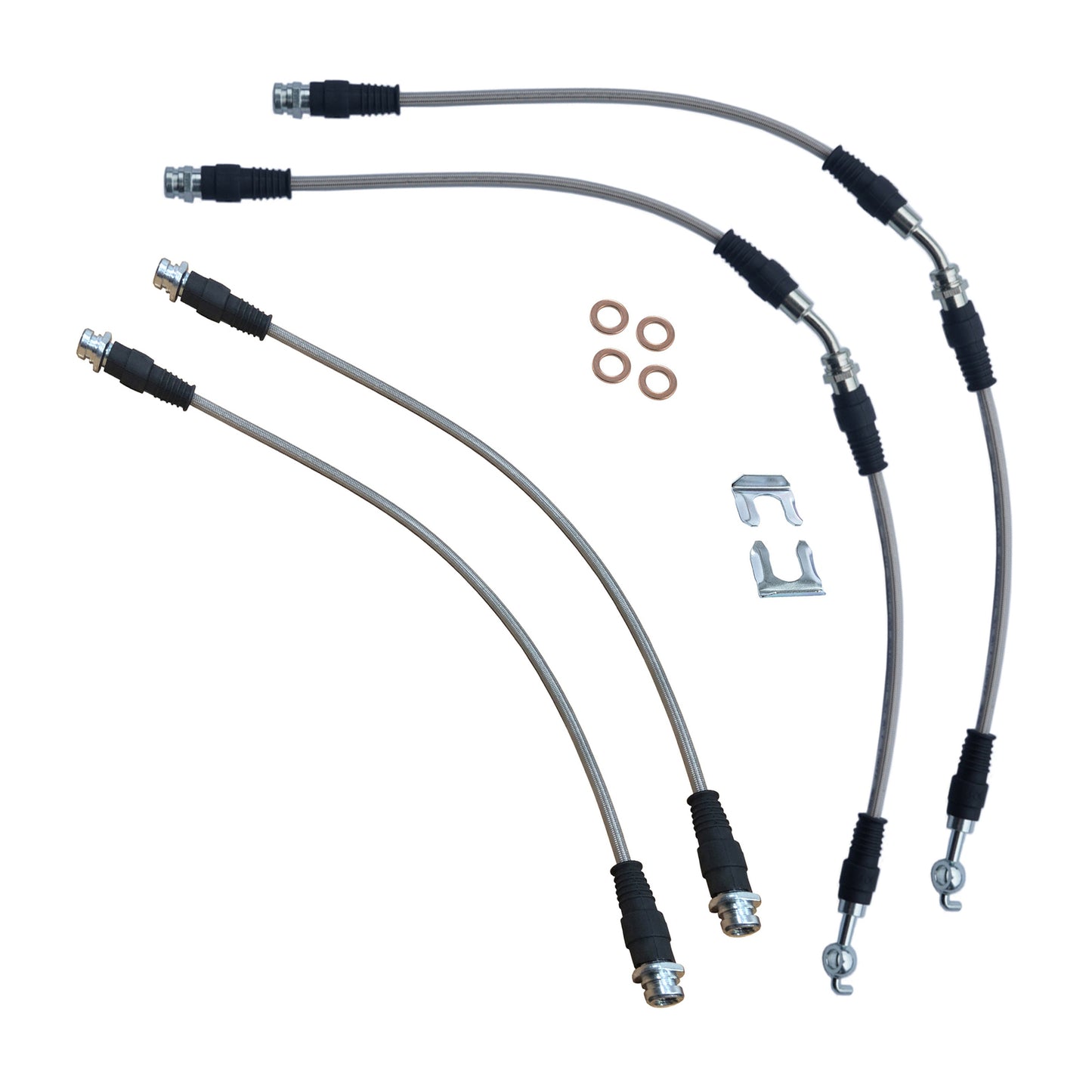

Kit Includes:

• 2 rear braided brake lines
• 2 front braided brake lines
• 4 copper washers
• 2 retaining clips
