ATI SPACER/SHACKLE LIFT KIT

LIFT HEIGHT:

• 2.5" FRONT, 2" REAR


COMPATIBILITY:

• MITSUBISHI TRITON ML/MN 2005 - 2015

The ATI spacer/shackle lift kit comprises of front strut spacers, rear extended shackles and is an economical way to lift your vehicle approximately 60mm over the factory height.

Our 32mm Strut spacers will lift the front of your vehicle aproximately 60mm over standard. Designed to mount onto of the standard strut and create lift without limiting wheel travel or affecting ride quality. ATI's strut spacers are machined from high quality billet alloy, anodised to protect against the elements and supplied with all required hardware.

Our extended shackle kit features greasable pins both top and bottom and nipples fitted to either side of the pins for ease of access when servicing. The shackles have two adjustable height options to give approximately 25 or 50mm of lift over the OE units and can be fitted with rubber or urethane bushes.

Features:

• Aproximately 60mm of lift at the front wheels
• 25mm or 50mm rear lift option
• Maintains factory ride quality
• Heavy duty components
• Greasable shackle design
• Lifetime warranty

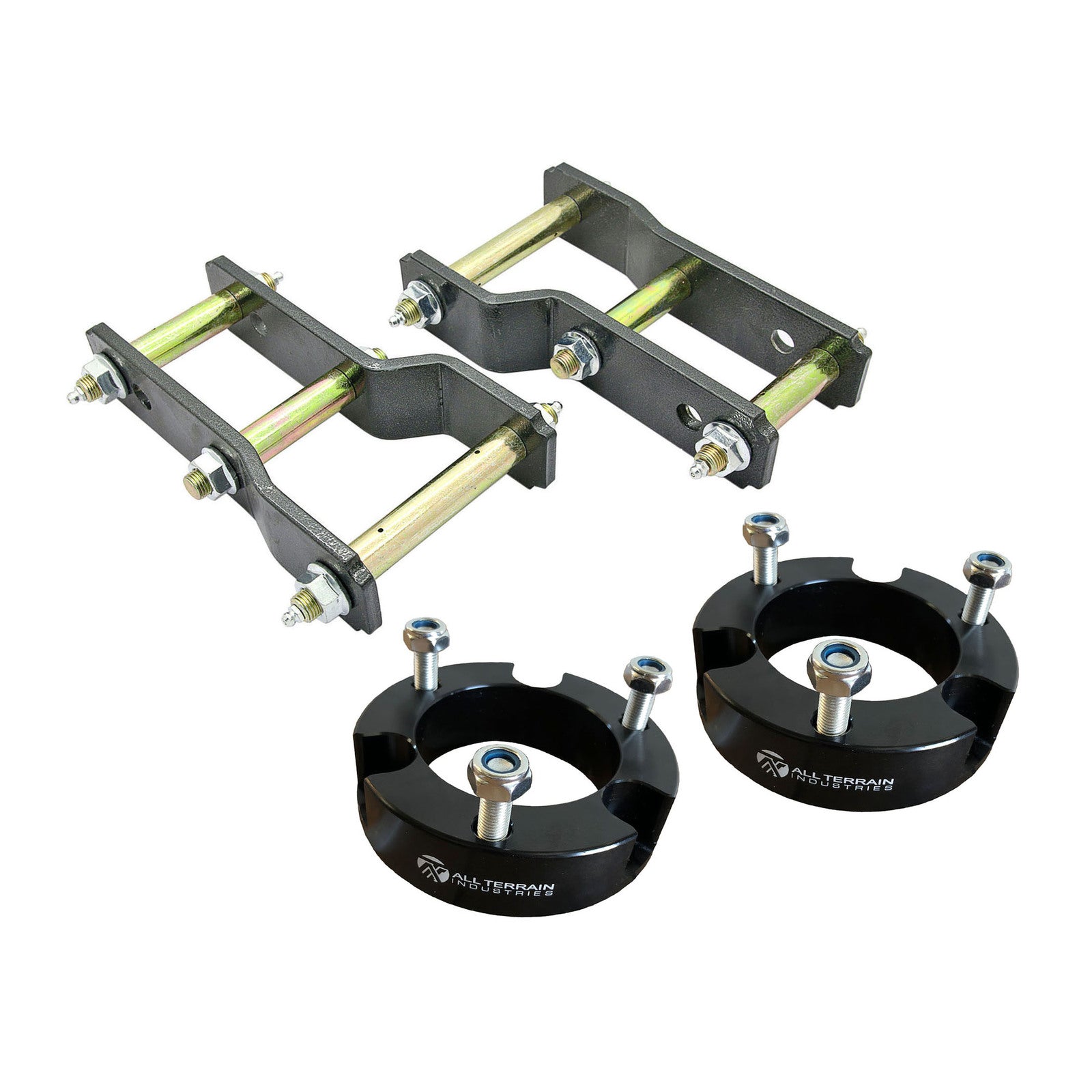

Kit Includes:

• 2 x 32mm Strut spacers
• 6 x Nyloc nuts
• 4 x Shackle plates
• 4 x Greasable shackle pins
• 2 x Centre non greasable pins
• 12 x Shackle nuts
• 8 x Grease nipples
