Complete Bilstein suspension lift package for Mitsubishi Triton MV 4WD 2023-on and Nissan Navara D27 4WD 2026-on. It combines pre-assembled Bilstein front ReadyStruts, matching Bilstein B6 rear shock absorbers, two rear leaf springs and all listed installation hardware.

Choose your setup

Select the engine, permanent rear load, and any Airbag Man or Polyair load-assist and SuperPro upper-control-arm upgrade. Pricing changes automatically and remains exactly 2% below the equivalent current supplier configured retail price.

Features

• Approximately 50mm lift with spring rates selected to suit the vehicle's constant load.
• Bilstein gas-pressure damping for controlled road, touring and off-road performance.
• Pre-assembled front ReadyStruts streamline installation.
• Rear 0–100kg and 300–500kg constant-load spring choices.
• Optional raised-height Airbag Man RR4744 or Polyair 88239 bellows.
• Optional SuperPro TRC6760 offset upper control arms for lifted-vehicle geometry correction.

Fitment: Confirm the vehicle, engine, drivetrain and permanent rear load before supply. Professional installation and a post-fit wheel alignment are recommended. Final lift height can vary by approximately ±15mm with vehicle condition and actual load.

Downloads

• Lift kit fitting instructions (PDF)

SKU: TRI-029R Components per product: 1 complete kit Sub-brand: Bilstein / Formula 4x4 Lift height: approx. 50mm Rear spring choices: 0–100kg or 300–500kg constant load EAN: 9317745082491

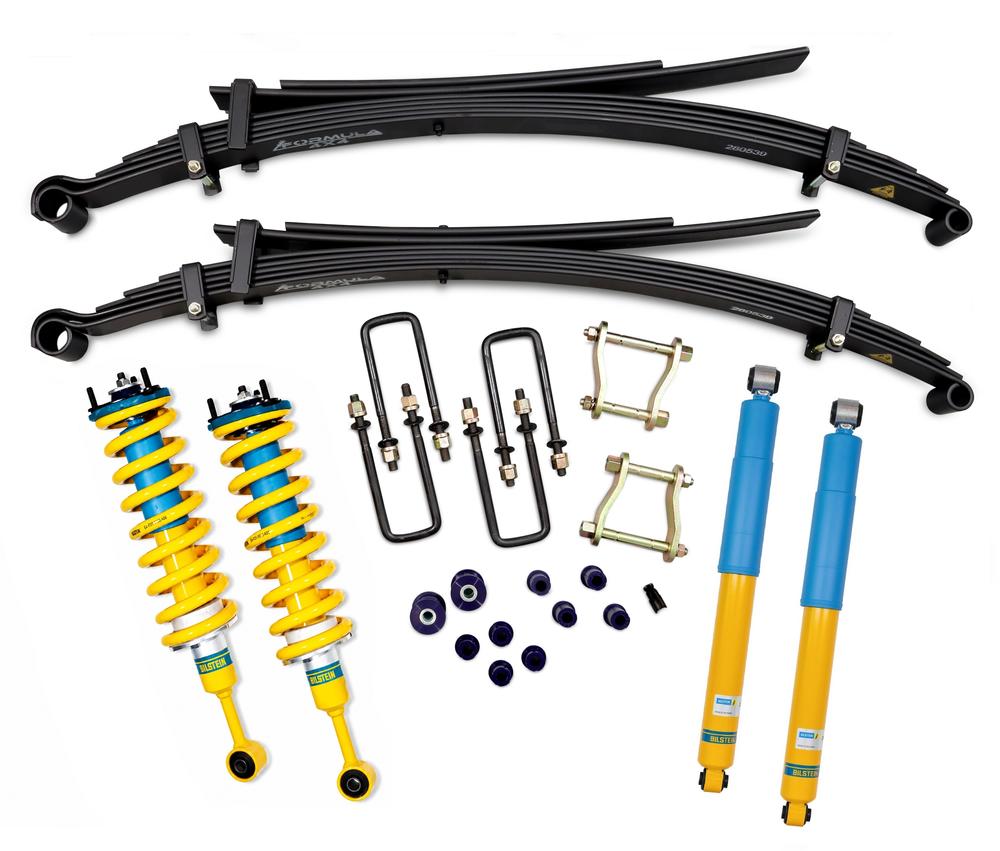

1 × TRIT056-BIL Bilstein ReadyStrut kit 2 × 24-354462 Bilstein B6 rear shock absorbers 2 × FLS-166L Formula 4x4 rear leaf springs (or selected 300–500kg spring rate) 4 × FUB-006 U-bolts 1 × KIT262K SuperPro shackle and bush kit 1 × SPF4954K brake-line spacer kit Selected optional airbag and upper-control-arm upgrades where chosen

Warranty: Bilstein lift kit 5 years when activated, subject to manufacturer terms, correct application and professional installation.
