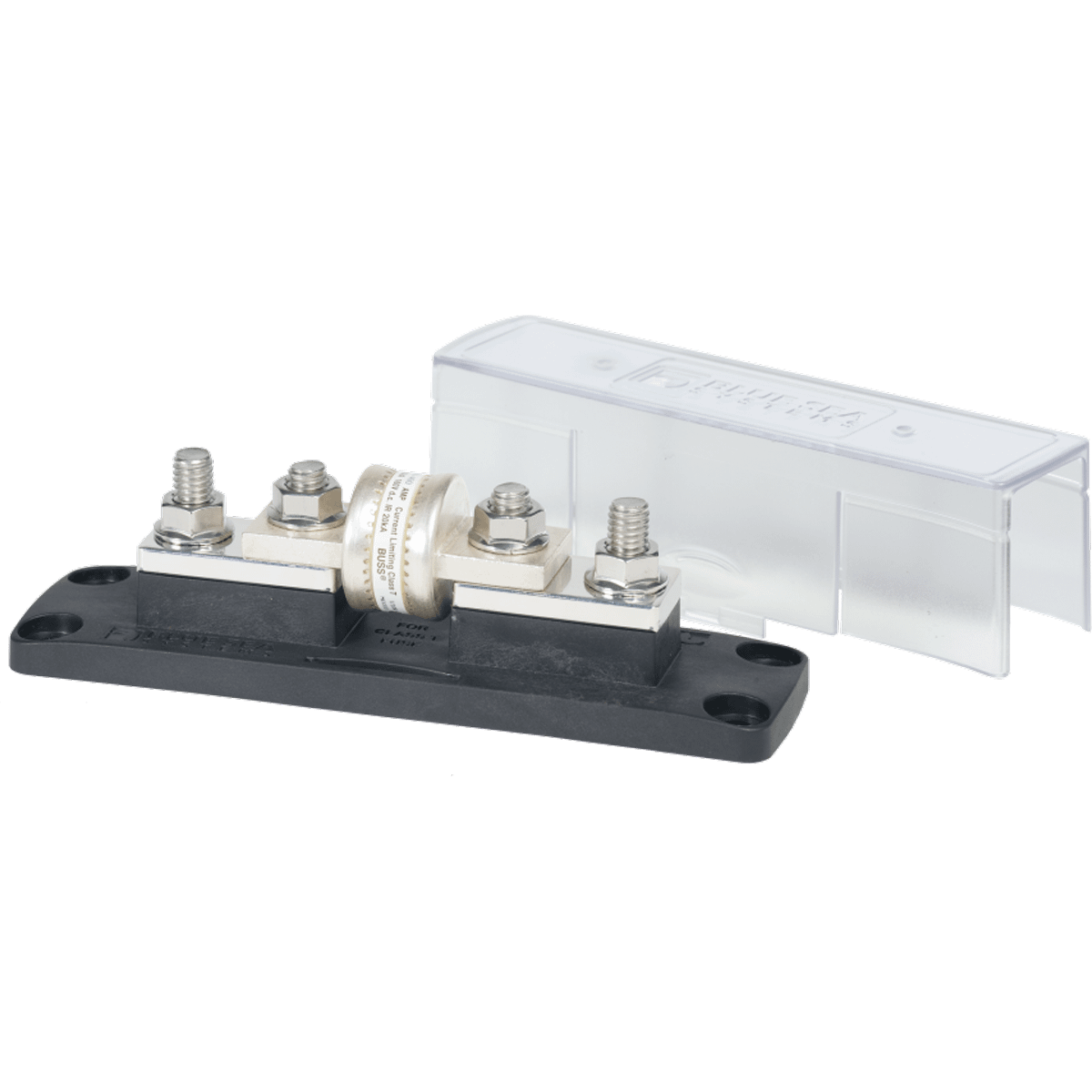

Class T Fuse Block with Insulating Cover – 225 to 400A BS-5502

Class T Fuse Block with Insulating Cover – 225 to 400A BS-5502

BS-5502

$99.00 AUD
$99.00 AUD
Sale Sold out

Features

Class T Fuse Block with Insulating Cover – 225 to 400A

  • The fuse system recommended by most inverter manufacturers for high speed response to short circuits
  • Clear insulating cover, satisfies ABYC/USCG requirements
  • For use on systems up to 160 Volts DC
  • Large 3/8″-16 stud terminals accept ring terminals for wire up to 4/0 AWG
  • Large heat dissipating tin-plated copper mounting blocks
  • Two # 8 accessory terminals located on each end
  • Fuse sold separately

Specifications

Class T Fuse Block with Insulating Cover – 225 to 400A
Maximum Amperage 400A
Maximum Voltage 160V DC
Fuse Mounting Blocks Tin-Plated Copper
Maximum Cable Size 4/0 AWG
Maximum Torque 190 in-lb (21.47 Nm)
Mounting Holes Accept 1/4 (M6) Screw
Terminal Stud Size 3/8″ – 16 (M10)
Weight 0.05 kg
