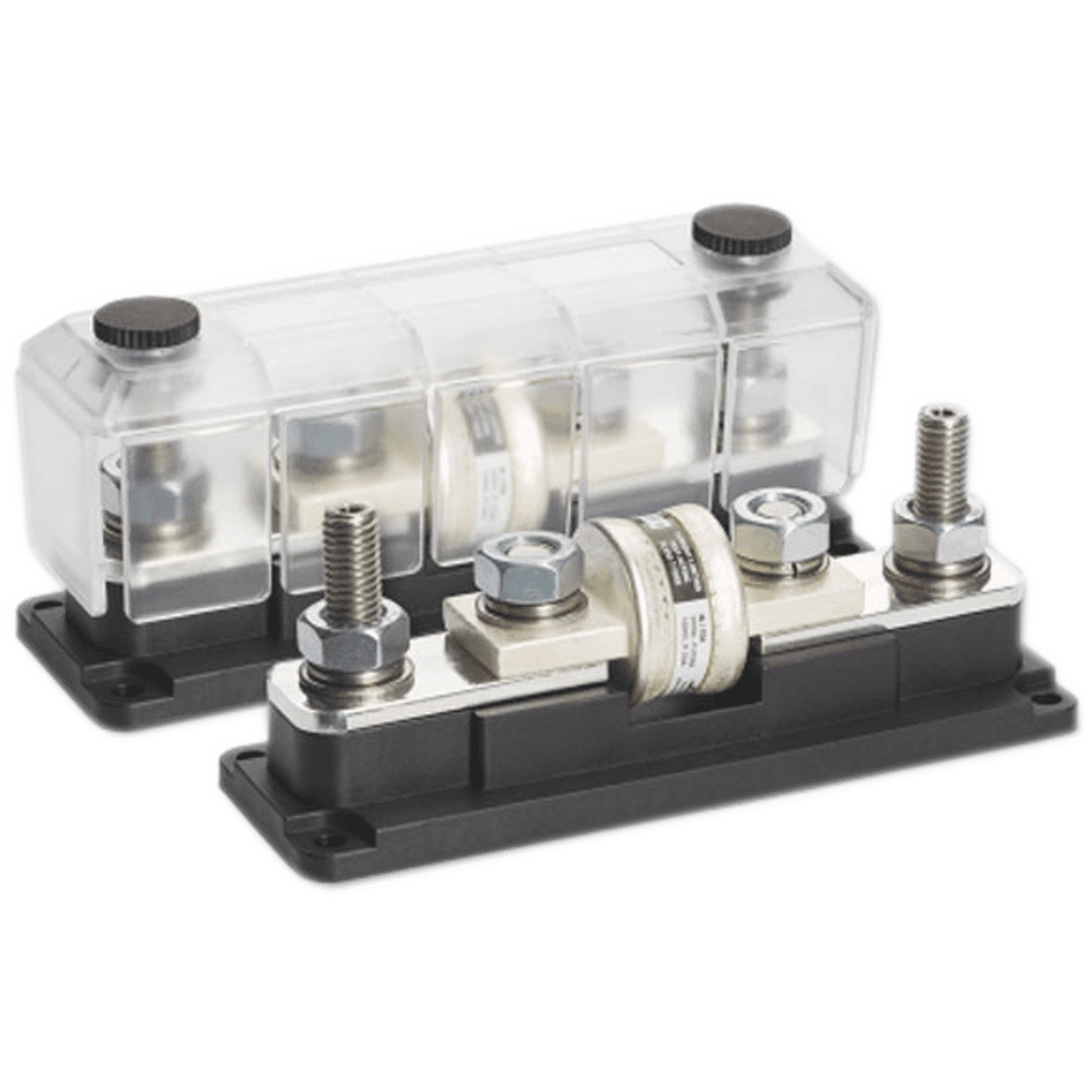

Class-T Fuseholder (225-400A) DCM-5073850

Class-T Fuseholder (225-400A) DCM-5073850

DCM-5073850

$88.00 AUD
$88.00 AUD
Sale Sold out

Features

  • Stainless steel studs, nuts and washers for optimal corrosion resistance
  • Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
  • Special fiber reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
  • Unique grid optimized footprints allow space saving arrangements of multiple products
  • Common interconnection heights for easy combining of multiple products using link plates (except Mega and ANL (300A) fuseholders)
  • Robust transparent covers with breakouts to allow wire access from any direction
  • Smart terminal design allows dual mirrored cable lug connections
  • Easy in-system connection access due to top locked covers (except Mega and ANL (300A) fuseholders)

Specifications

Model Part No. Grid size1) Fuse range2) Max. Voltage Connection stud size
DCM Class-T Fuseholder (400A) DCM-5073850 1 x 3 225 .. 400A 50V M10

1) Compatible with Littelfuse® ‘JLLN’, Cooper Bussmann® / Edison® ‘JJN’ and ‘TJN’ and Mersen® ‘A3T’ fuses
2) Higher voltages may require additional safety measures
