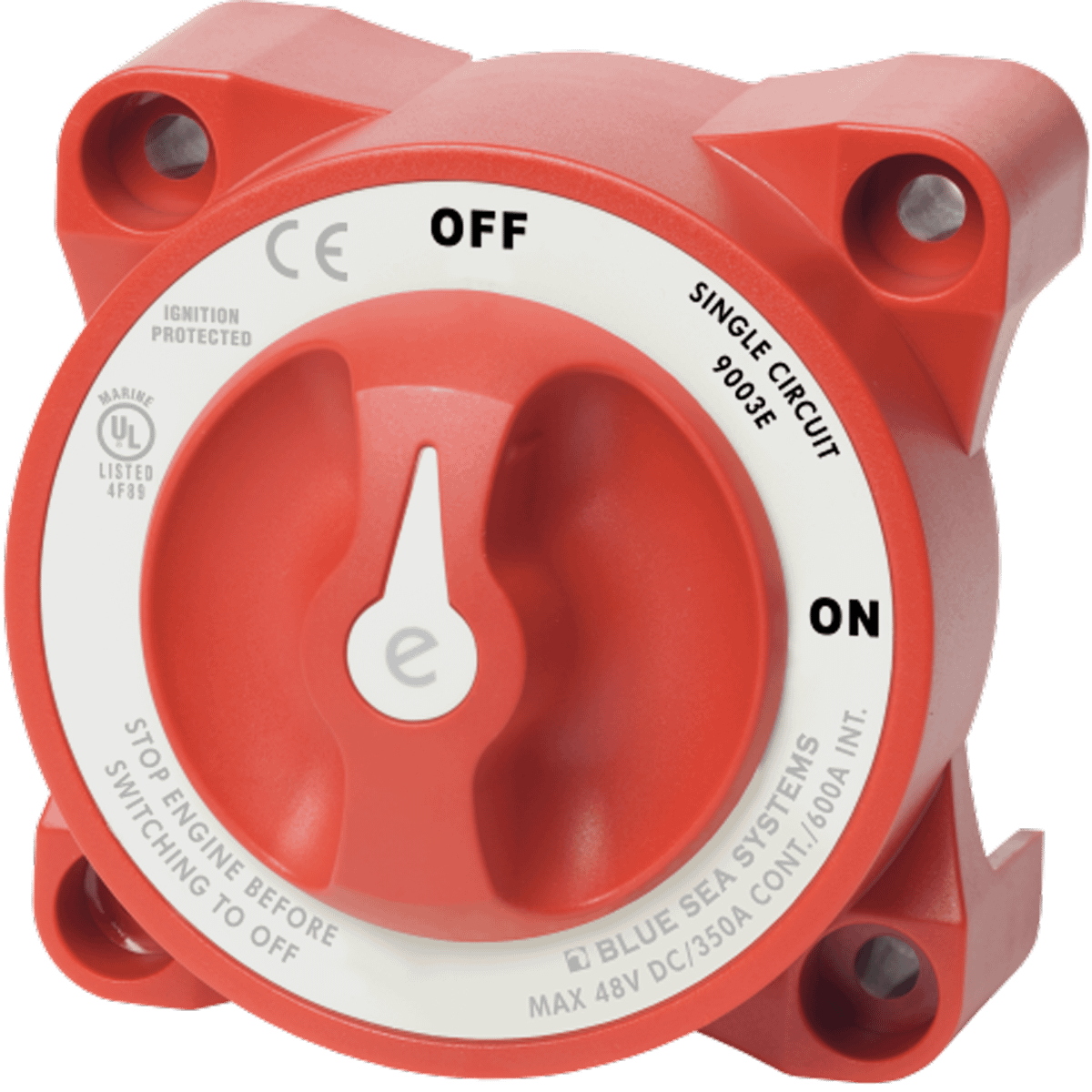

e-Series On Off Battery Switch
-
Ignition protected—safe for installation aboard gasoline powered boats
-
Case design allows surface or rear panel mounting
Specifications
|
e-Series On-Off Battery Switch |
|
|---|---|
|
Switch Type |
Single Circuit ON-OFF |
|
Color |
Red |
|
Switch Positions |
2 |
|
Battery Combine |
No |
|
Alternator Field Disconnect |
No |
|
Maximum Voltage |
48V DC |
|
Terminal Stud Torque |
140 in-lb (15.82 Nm) |
|
Continuous Rating |
350A |
|
Intermittent Rating |
600A (5 min) |
|
Cranking Rating 10 Sec |
2000A |
|
Cranking Rating 1 min |
1000A |
|
Battery Inputs |
1 |
|
Cable Clearance For 4/0 AWG Cables |
1.10in (27.94 mm) |
|
Cable Size to Meet Ratings |
4/0 AWG (120mm²) |
|
Mounting Holes |
Accept 1/4″ (M6) Screw |
|
Terminal Stud Size |
3/8″ – 16 (M12) |
|
Weight |
0.59 kg |
