enerdrive

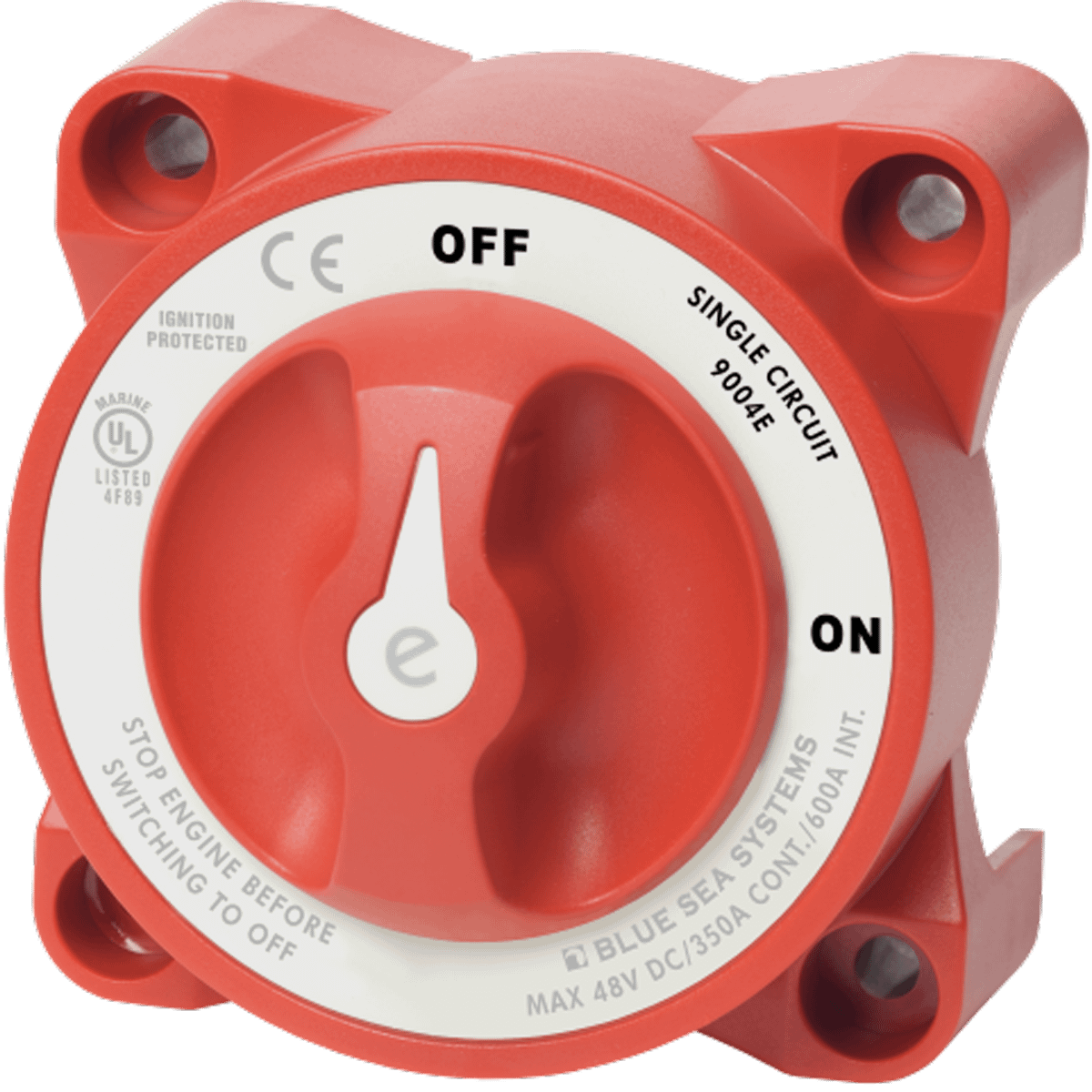

e-Series On-Off Battery Switch with AFD BS-9004e
e-Series On-Off Battery Switch with AFD BS-9004e
SKU:BS-9004e
Regular price
$120.00 AUD
Regular price
Sale price
$120.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
e-Series On Off Battery Switch with AFD
- Includes AFD (Alternator Field Disconnect)
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications
| e-Series On-Off Battery Switch with AFD | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | Yes |
| Maximum Voltage | 48V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 600A (5 min) |
| Cranking Rating 10 Sec | 2000A |
| Cranking Rating 1 min | 1000A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4″ (M6) Screw |
| Terminal Stud Size | 3/8″ – 16 (M12) |
| Weight | 0.59 kg |
