enerdrive

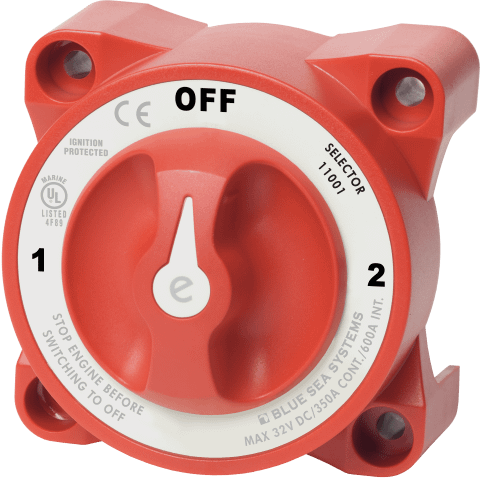

e-Series Selector 3 Position Battery Switch with AFD BS-11001
e-Series Selector 3 Position Battery Switch with AFD BS-11001
SKU:BS-11001
Regular price
$102.00 AUD
Regular price
Sale price
$102.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
e-Series Selector 3 Position Battery Switch with AFD Line
- Includes AFD (Alternator Field Disconnect)
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications
| e-Series Selector 3 Position Battery Switch with AFD | |
|---|---|
| Switch Type | Selector 3 Position |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | No |
| Alternator Field Disconnect | Yes |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 600A (5 min) |
| Cranking Rating 10 Sec | 2000A |
| Cranking Rating 1 min | 1000A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4″ (M6) Screw |
| Terminal Stud Size | 3/8″ – 16 (M12) |
| Weight | 0.59 kg |
