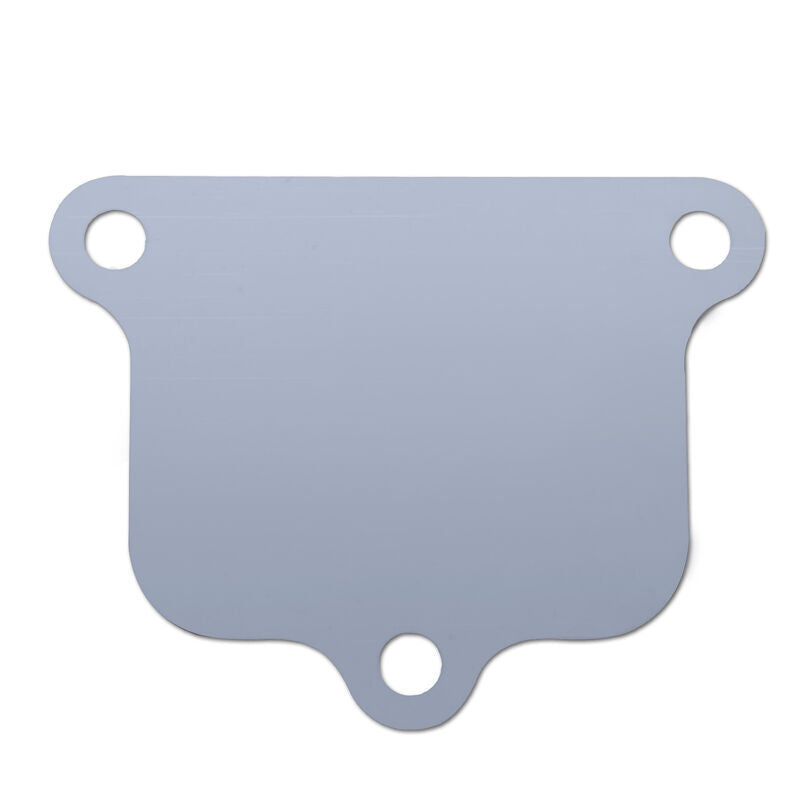

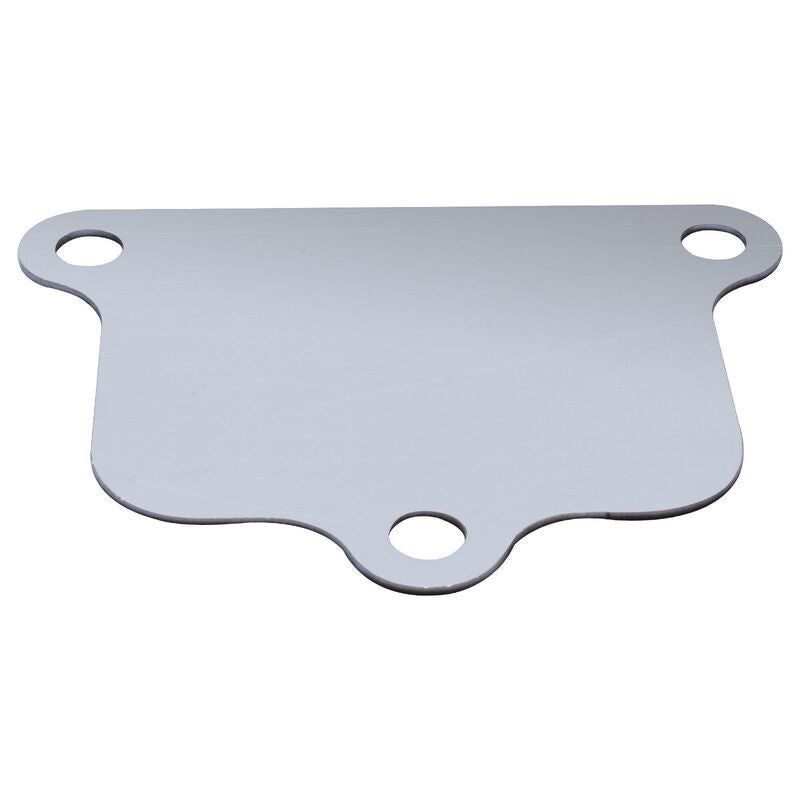

Feature

- Brand new high quality EGR blanking plate

- Material: 304 stainless steel

- It fits on the exhaust manifold; the side of the gasket on the EGR cooler flange

- Prevents loss of coolant out the exhaust pipe in event of EGR cooler failure

- Direct replacement; High performance part

Fitment

- Ford PX 1 & PX 2 Ranger

- Mazda BT-50

- From late 2011 to 2015

- 2.2L 4cyl & 3.2L 5cyl engines

Package

1 x Plate

Installation Guide

1. See the images (above) for the location of the EGR cooler and where to insert the plate.

2. Remove the 3 bolts connecting the EGR cooler to the exhaust manifold

3. Loosen the mounting bolt/s of the EGR cooler

4. Apply silicon sealant around the edges of the EGR plate

5. Slide the EGR plate in onto the cooler side of metal gasket

6. Replace the 3 bolts and tighten - Factory recommends torque to be 23 nm

7. Tighten the mounting bolt - 23 nm
