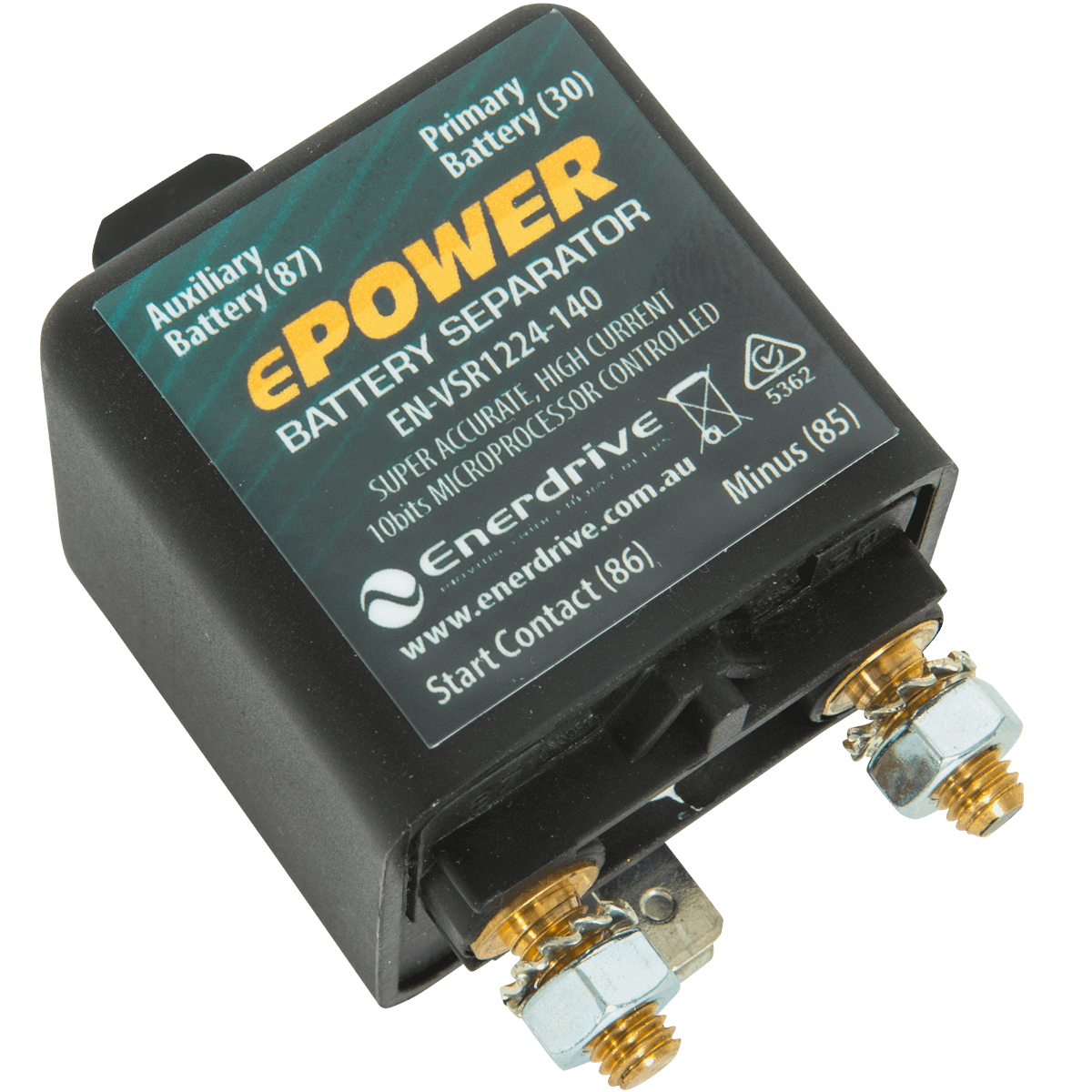

Enerdrive 140A 12/24v Voltage Sensitive Relay EN-VSR1224-140

Enerdrive 140A 12/24v Voltage Sensitive Relay EN-VSR1224-140

EN-VSR1224-140

$107.00 AUD
$107.00 AUD
Sale Sold out

Features

When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.


Additionally, the ePOWER VSR range offers features like :

  • No voltage loss
  • Intelligent battery monitoring to prevent unwanted switching
  • Starter battery priority
  • Bipolar switching
  • Voltage dependent switching

Applications

  • Marine
  • Caravans
  • Camper vans
  • RV’s

Specifications

Specifications

EN-VSR1224-140 10-bits precise µProcessor
Power supply Auto detect 12 / 24V
Connection batteries M6
Other connections 6.3mm faston
Cable suggestion 20mm2
Current consumption in OFF state 12V 1.5mA / 24V 1.5mA
Current consumption in ON state 13.5V 360mA / 27V 160mA
Minimum Charge time 60 sec.
Fast OFF < 11.8V (12V) / < 23.6V (24V) after 4 sec.
IP Rating IP54
Weight (kg) 0.11
Dimensions L x W x H (mm) 46 x 46 x 80
