Features

P.I.R. Sensor Motion Switch

The DCMotion can be used in a number of situations like yacht or ship engine rooms, undercover truck loading bays or RV applications.

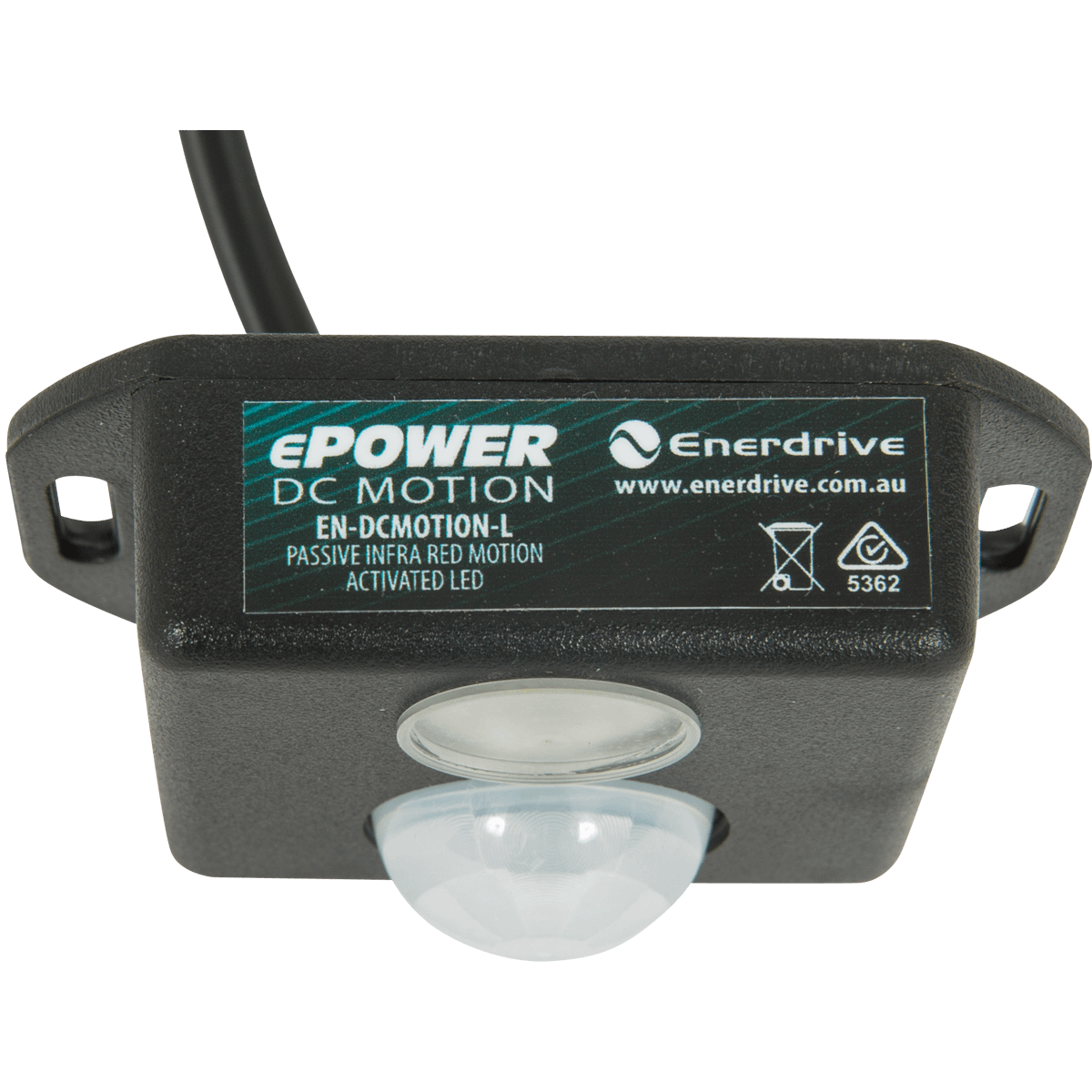

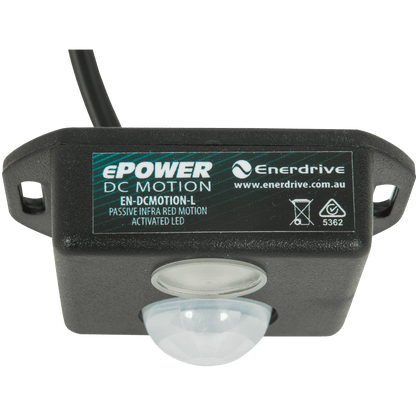

The ePOWER DCMotion-L is a motion activated LED lamp for 12v and 24v systems for which a Passive Infra-Red Detector (PIR) is used. This unit has a built in high efficiency Power CREE LED (1 Watt). The DCMotion-L switches the load as soon as motion is detected. If no motion is detected any more the DCMotion-L switches off with a delay. The delay time can be set by way of an internal potentiometer. This is done in steps of 5 seconds. The minimum delay time is 5 seconds and the maximum delay time is 60 seconds. Default is a delay time of about 30 seconds. The load will be disconnected 30 seconds after the last motion is detected.

Applications

• Recreational vehicles
• Industrial systems
• Service vehicles
• Maritime applications

Specifications

Specifications
