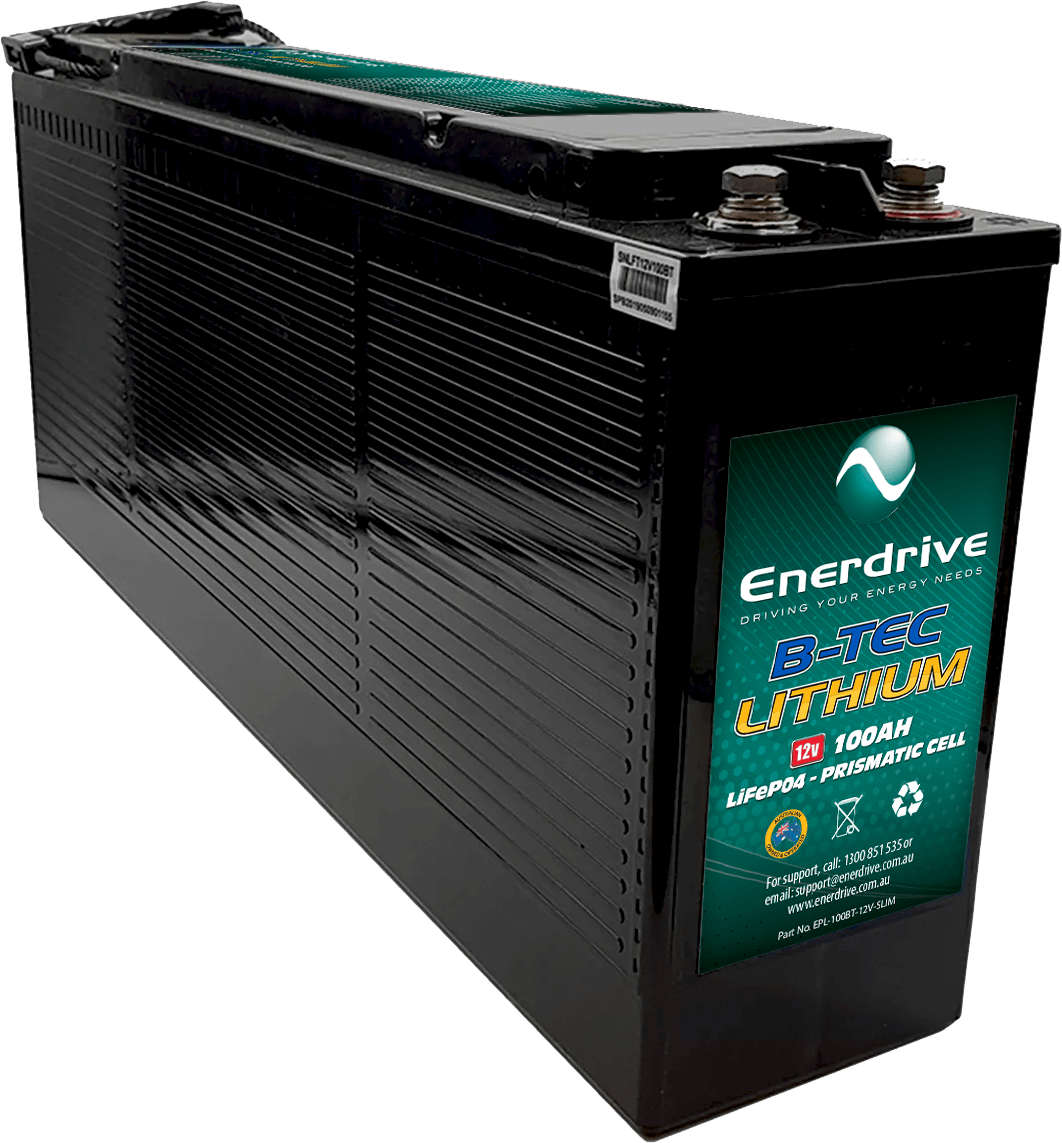

Enerdrive ePower B-TEC 12V 100Ah Slim Lithium Battery

Enerdrive B-TEC 100AH Slim Battery is an ideal solution for those who are limited for space. The battery provides the same DNA as of all other Enerdrive B-Tec batteries. With the high-quality prismatic cells, the 100Ah battery is suitable for up to 1000 Watt inverter. Additionally, it provides the best aftersales support program in Australia. It fits perfectly positioned behind the back seat of most dual cab utes and narrow spaces in other locations.

Smart Phone Monitoring System

The Enerdrive Enerdrive B-TEC  G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Size & Weight Savings

Lithium v AGM Capacities;

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium = 320Ah AGM
• 300Ah Lithium = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 3000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note: The B-TEC battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The 100Ah battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

SKUEPL-100BT-12V-SLIM

BrandEnerdrive

GTIN9342616001028

Product CategoryBatteries

Battery Voltage12V

Amp Hours (ah)100

Battery Length (mm)551

Battery Width (mm)109

Battery Height (mm)239

Battery Weight (kg)12.5

Cycle Life (DOD – 80% under controlled conditions)≥ 2000 Cycles

Battery Charge Temperature0 ̴ 45°C

Normal Charge Voltage CV/CC14.20 ̴ 14.60V

Standby (Float) Voltage13.50 ̴ 13.80V

Maximum Charge Current80A @ 25°C for 30mins

Recommended Charge Current for Max Life20A-50A

Battery Discharge Temperature-20 ̴ 60°C

Battery Output Voltage Range11.00 ̴ 14.60V

Maximum Discharge Current100A @ 25˚C ±5˚C for 30 mins

Pulse Discharge Current250A for 1.0s

Discharge Cut-off Voltage≤11.20V

Over-Charge Protection Per Cell3.90V ± 0.03V

Over-Charge Release Per Cell3.60V ± 0.05V

Over-Charge Release MethodDischarge below release voltage

Over-discharge Protection Per Cell2.80V ± 0.05V

Over-discharge Release Per Cell3.20V ± 0.05V

Over-discharge Release MethodApply Charge/Voltage ≥12.8V

Discharge Over Current110A for 30s – 250A for 3s

Over Current Release MethodDisconnect Load

Battery Discharge Over TemperatureProtection to 65°C ± 5°C, Release at 50°C ± 5°C

Battery Charge Over TemperatureProtection to 55°C ± 5°C, Release at 45°C ± 5°C

Short Circuit ProtectionAuto release after 5s

Case ConstructionHi Impact ABS Plastic

Temperature & Humidity Range≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
