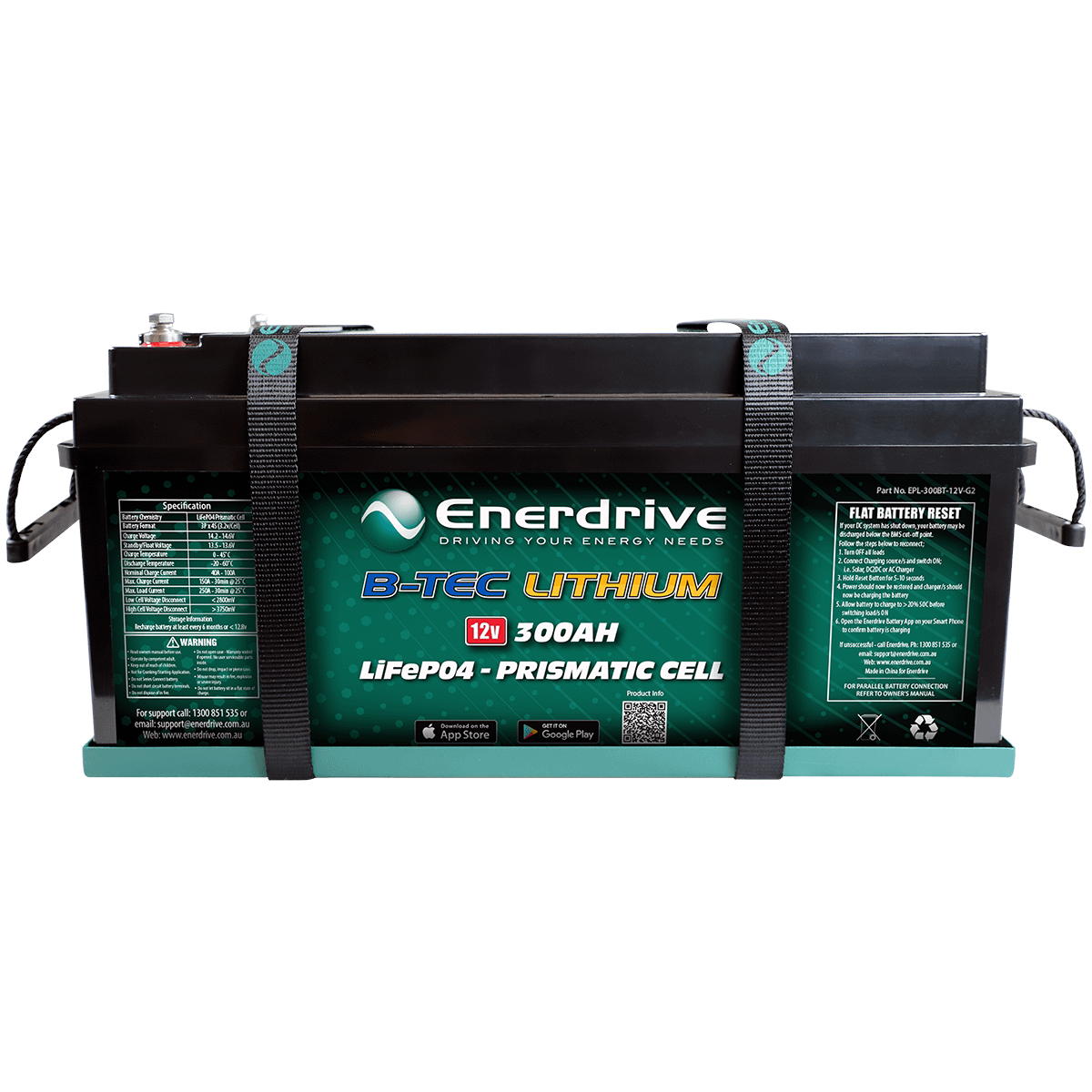

Enerdrive ePOWER B-TEC 300Ah Lithium Battery

Available in 12v 300Ah capacity, the Enerdrive B-TEC G2 lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Key Features:

• New design BMS
• Max discharge current 250A (15mins) - 200A continuous
• Max charge current 190A (30mins)
• Can be connected in parallel (up to 4 batteries)
• Built in flat battery reset button
• Includes mounting tray and 2 straps
• Communication ports (RS485) for future integration
• 5 year warranty & lifetime tech support

Smart Phone Monitoring System
The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings

Lithium v AGM Capacities:

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium G2 = 320Ah AGM
• 300Ah Lithium G2 = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

The New Generation 2 B-TEC

So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look.
Dimension     Original     Generation 2

Also included for free is a metal battery tray and hold down strap to complete the installation process.

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.

The New Enerdrive Generation 2 (G2) B-TEC 300Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered.

With over 8 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 4000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note: The B-TEC battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The G2 300Ah battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than the Enerdrive B-TEC G2 battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

SKUEPL-300BT-12V-G2

BrandEnerdrive

GTIN9342616019924

Product CategoryBatteries

Battery Voltage12V

Amp Hours (ah)300

Battery Length (mm)521

Battery Width (mm)280

Battery Height (mm)238

Battery Weight (kg)38.2

Cycle Life (DOD – 80% under controlled conditions)≥ 2000 Cycles

Battery Charge Temperature0 ̴ 45°C

Normal Charge Voltage CV/CC14.20 ̴ 14.60V

Standby (Float) Voltage13.50 ̴ 13.80V

Maximum Charge Current190A @ 25°C for 30mins

Recommended Charge Current for Max Life60~120A

Battery Discharge Temperature-20 ̴ 60°C

Battery Output Voltage Range11.00 ̴ 14.60V

Maximum Discharge Current250A @ 25˚C ±5˚C for 15 mins

Pulse Discharge Current450A for 1.0s

Discharge Cut-off Voltage≤11.20V

Over-Charge Protection Per Cell3.90V ± 0.03V

Over-Charge Release Per Cell3.60V ± 0.05V

Over-Charge Release MethodDischarge below release voltage

Over-discharge Protection Per Cell2.80V ± 0.05V

Over-discharge Release Per Cell3.20V ± 0.05V

Over-discharge Release MethodApply Charge/Voltage ≥12.8V

Battery Manual Reset ButtonYes

Discharge Over Current280A for 25s – 400A for 3.5s

Protection Reset TimeApprox 10s Auto Release

Over Current Release MethodDisconnect Load

Battery Discharge Over TemperatureProtection to 65°C ± 5°C, Release at 50°C ± 5°C

Battery Charge Over TemperatureProtection to 55°C ± 5°C, Release at 45°C ± 5°C

Short Circuit ProtectionAuto release after 5s

Case ConstructionHi Impact ABS Plastic

Temperature & Humidity Range≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
