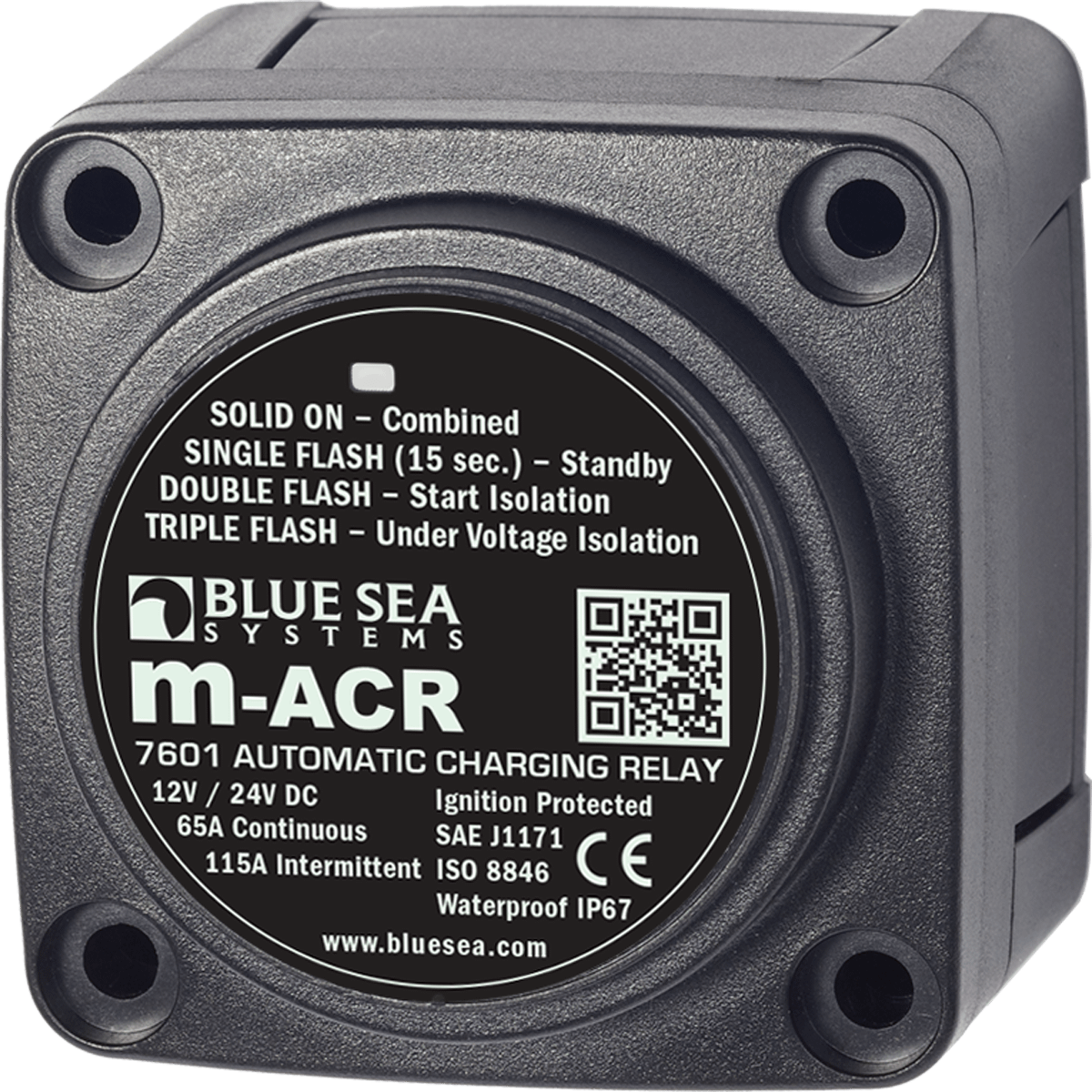

Enerdrive m-Series Automatic Charging Relay – 12/24V DC 65A BS-7601

Enerdrive m-Series Automatic Charging Relay – 12/24V DC 65A BS-7601

BS-7601

$147.00 AUD
$147.00 AUD
Sale Sold out

Features

m-Series Automatic Charging Relay – 12/24V DC 65A

  • Senses charging on two battery banks
  • Pull off and snap on insulating cover
  • LED indicates ACR status
  • 1 ∕4″ x .032″ male quick connect terminal for ground

Specifications

m-Series Automatic Charging Relay – 12/24V DC 65A
Nominal Voltage 12V DC
24V DC
Start Isolation Yes
Amperage Operating Current 90mA (Combine)
15mA (Open)
Terminal Stud Torque 60 in-lb (6.78 Nm)
Continuous Rating 65A
Intermittent Rating 115A (5 min)
Cable Size to Meet Ratings 6 AWG
Maximum Cable Size 1/0 AWG
Terminal Stud Size 1/4″ – 20 (M6)
Relay Contact Position
Combine 30 sec 13.6V DC
Open 10 sec 12.35V DC
Open 30 sec 12.75V DC
Open High 16.0V
Under Voltage Lockout 9.5V
Weight 0.43 kg
