Ford Ranger MK3 08/2018-On PSR TTG 4" Lift Kit

Ford Ranger MK3 08/2018-On PSR TTG 4" Lift Kit

SKU:

Regular price $3,865.00 AUD
Regular price Sale price $3,865.00 AUD
Sale Sold out

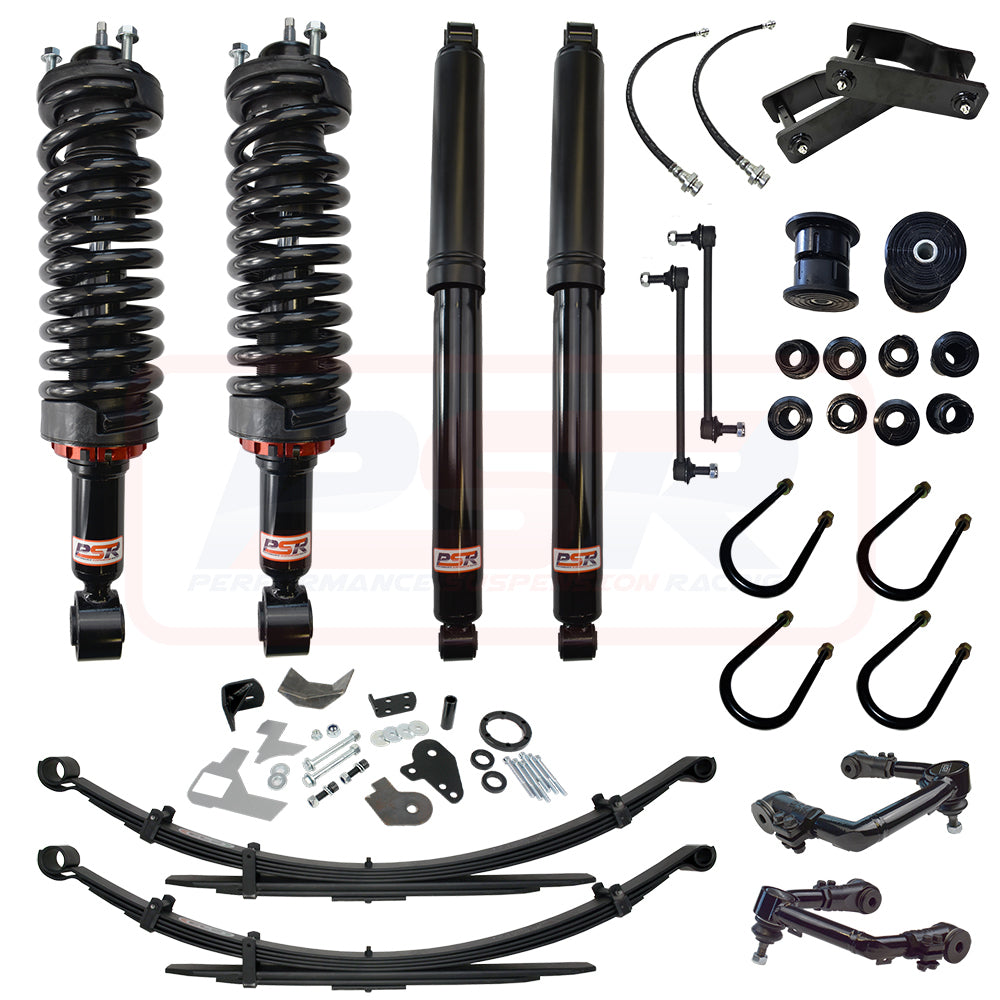

This system sits at 4" front and 3" rear to sit the car level and includes our PSR diff drop kit, PSR shortened link pins, PSR adjustable upper arms, PSR TTG height adjustable 2 - 4" struts, King coil springs, leaf springs, leaf spring bush kit, 1" lift extended shackles (bringing the rear level), extended brake lines and long travel PSR TTG shocks. This kit includes our weld in diff drop which is highly recommended when raising the vehicle 3" or above to save the CV joints from damage due the immense strain put on them at the increased angles.


  • 4/3" lift from factory height
  • If 4" lift desired in rear please advise in checkout (2" shackle will be supplied)
  • Reduce the nose down look
  • Adjustable height front strut
  • Complete lift kit solution
  • Suits PX Ranger MK3 ONLY
  • For more travel or lift height check out other listings
  • Welding required for diff drop

Please be aware that all kits are dispatched at a height that is set from our experience to the advertised height in the product listing, we cannot be held accountable for variations on vehicles and or the variation of weights of accessories that would require further adjustments of heights once installed. Any height adjustment required to achieve the desired ride height is at the installers discretion and at no way our responsibility.

Standard Duty Front and Rear 4/3" lift from factory height If 4" lift desired in rear please advise in checkout (2" shackle will be supplied) Reduce the nose down look Adjustable height front strut Complete lift kit solution Suits PX Ranger MK3 ONLY For more travel or lift height check out other listings Welding required for diff drop

Standard Duty Front and Rear 4/3" lift from factory height If 4" lift desired in rear please advise in checkout (2" shackle will be supplied) Reduce the nose down look Adjustable height front strut Complete lift kit solution Suits PX Ranger MK3 ONLY For more travel or lift height check out other listings Welding required for diff drop
