Complete Formula 4x4 rear leaf-spring package for GWM Ute/Cannon 2020-on and Cannon Alpha models with the leaf-spring rear suspension from 2022-on. It is designed for approximately 40 mm rear lift when the vehicle carries a constant 200–300 kg rear load.

Choose your setup

Select whether the required pair of long-travel Formula 4x4 rear shock absorbers is to be included. Pricing changes automatically and remains exactly 2% below the equivalent current supplier component retail.

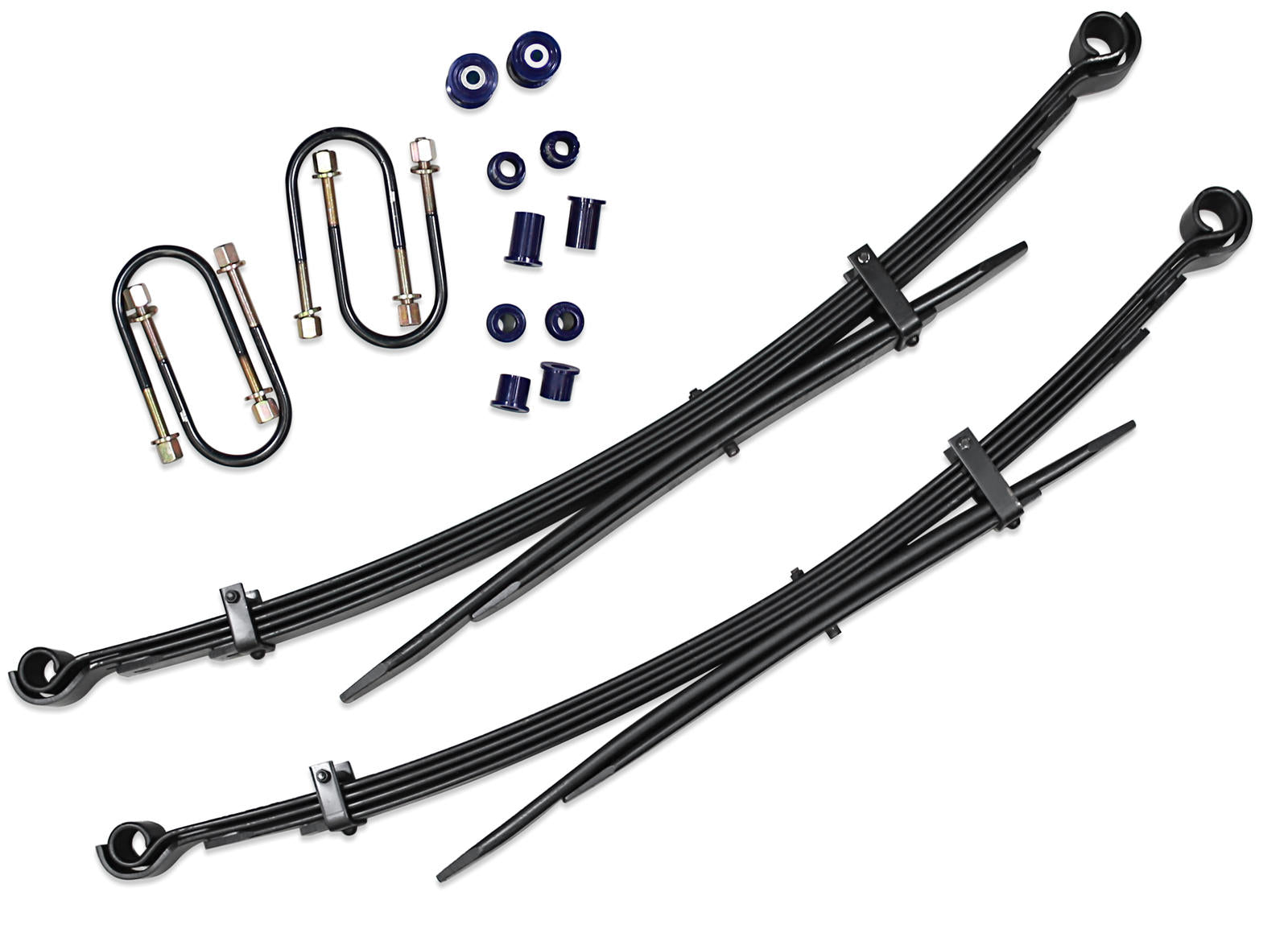

Kit contents

• 2 × Formula 4x4 FLS-152 rear leaf springs.
• 4 × Formula 4x4 FUB-004 U-bolts.
• 1 × SuperPro KIT247SK greaseable shackle, pin and bush kit.

Load and fitment

Approximately 40 mm lift at a 200–300 kg constant rear load. Long-travel rear shock absorbers must be fitted with this leaf-spring kit. Select the load rating from the vehicle’s permanent rear load, not an occasional payload. Professional installation and a post-fit inspection are recommended.

Base SKU: FLSKIT-252 EAN: 9317745839385 Fitting position: Rear axle Nominal lift: approximately 40 mm Constant rear load: 200–300 kg Components per product: 1 complete rear leaf-spring kit Long-travel rear shocks: required Sub-brand: Formula 4x4

2 × FLS-152 Formula 4x4 leaf springs 4 × FUB-004 Formula 4x4 U-bolts 1 × KIT247SK SuperPro greaseable shackle, pin and bush kit Optional selected upgrade: 2 × 50032 Formula 4x4 rear shock absorbers

Warranty: 3 years or 60,000 km, subject to manufacturer terms.
