Complete Formula 4x4 suspension lift package for the Toyota HiLux N90 4WD (GUN226R/GUN227R) from 2025. The kit combines pre-assembled height-adjustable front ReadyStruts with matched rear shocks, leaf springs and the required suspension-correction hardware.

Key features

• Approximately 45–50mm front lift with the standard 0–50kg front-load setup.
• Alternate approximately 30–35mm front-lift ReadyStrut configuration available.
• Rear spring choices for 0–200kg, 200–400kg or 400–500kg constant load; the selected option automatically changes the price.
• Includes two rear leaf springs and a fixed-offset upper control-arm kit.
• Vehicle-specific Formula 4x4 and SuperPro components.

Fitment: Toyota HiLux N90 4WD, GUN226R/GUN227R, 2025-on. Confirm engine, vehicle variant, permanent front accessories and rear constant load before ordering. Professional installation and a post-fit wheel alignment are recommended.

Warranty: 5 years / unlimited kilometres, subject to Formula 4x4 manufacturer terms and warranty activation requirements.

Downloads

• Formula 4x4 8000 Series installation instructions (PDF)
• Lift-kit installation instructions (PDF)

SKU: HILUX-030R Components per product: 1 kit Sub-brand: Formula 4x4 Front lift: approx. 45–50mm at 0–50kg permanent front load Alternate front lift: approx. 30–35mm at 0–50kg permanent front load Rear spring choices: 0–200kg, 200–400kg or 400–500kg constant load EAN: HILUX-030R Warranty: 5 years / unlimited kilometres

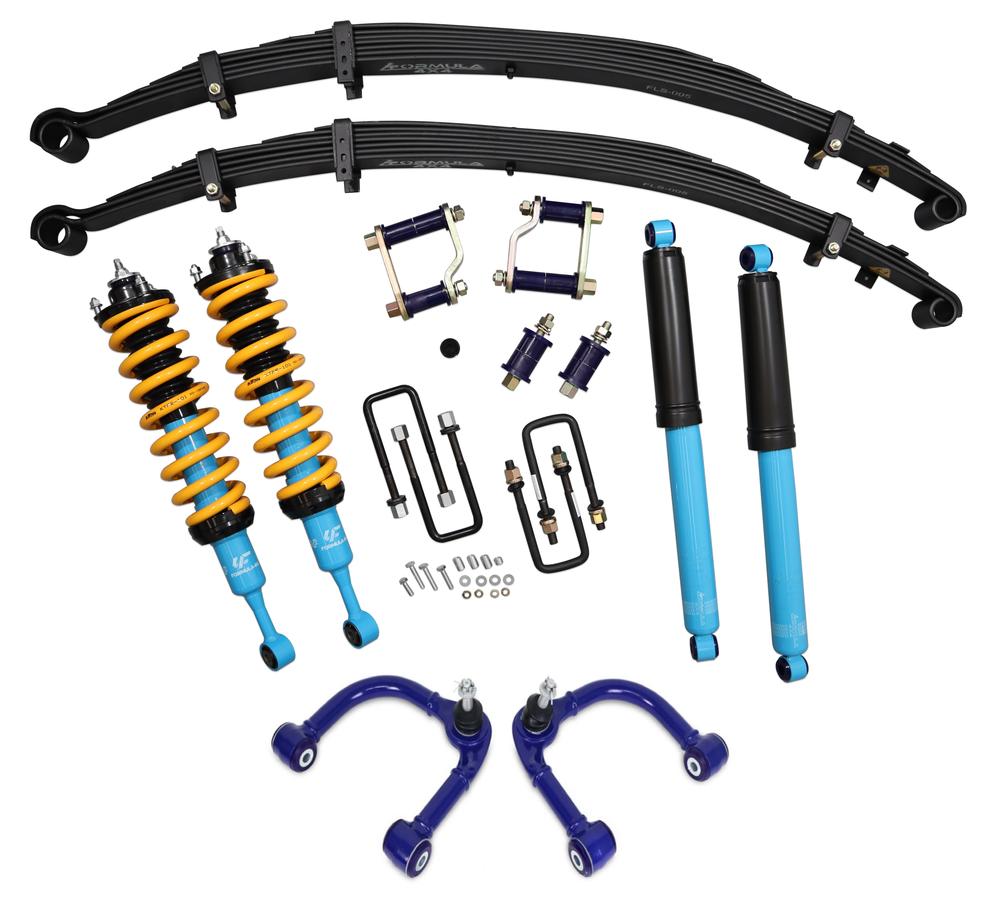

1 × HILUX170H-FOR-ADJ Formula 4x4 height-adjustable ReadyStrut kit 2 × 50016 Formula 4x4 rear shock absorbers 2 × FLS-095 Formula 4x4 leaf springs 4 × FUB-006 U-bolts 1 × KIT219SK SuperPro shackle, pin and bush kit 1 × SPF4855K brake-line spacer kit 1 × TRC6471 SuperPro fixed-offset upper control-arm kit

Warranty: Formula 4x4 lift kit 5 years / unlimited kilometres, subject to manufacturer terms and activation requirements.
