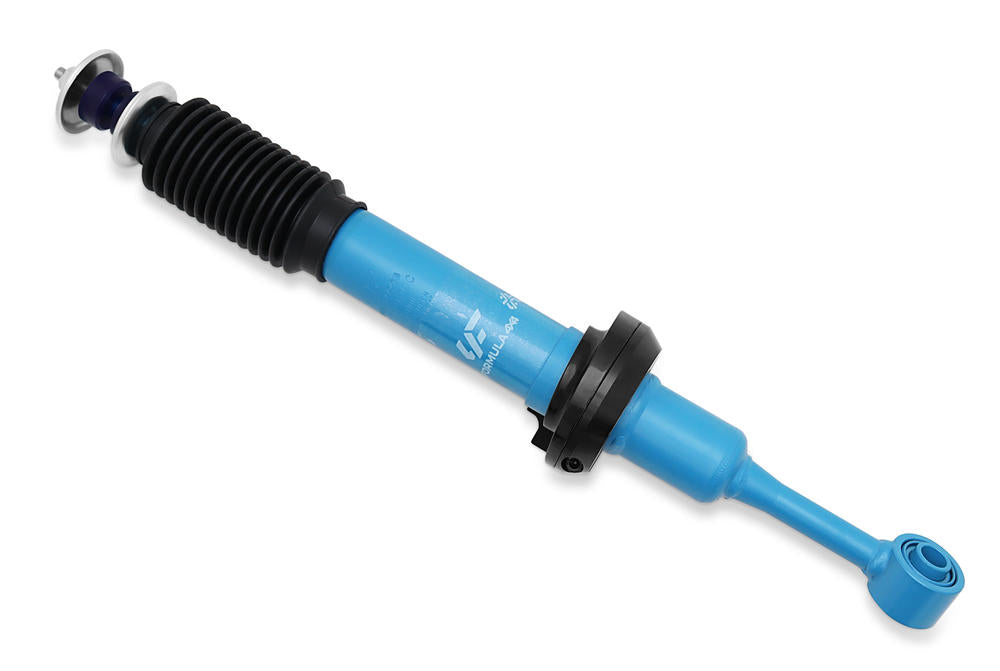

Formula 4x4 80423 height-adjustable front strut for the Toyota HiLux N90. The three-groove spring-seat design allows the front ride height to be matched to the selected spring and permanent accessory load.

Key features

• Three-groove height-adjustable spring seat; the lowest groove retains the original spring-seat height.
• Approximate 50mm lift capability when combined with the correct raised spring and vehicle load.
• 6061-alloy spring seat with polyurethane isolator.
• Large-bore, low-pressure nitrogen damper with NOK seals.
• Corrosion-resistant finish, robotic welds and SuperPro bushings.
• Open length approximately 620mm; closed length approximately 473mm.

Fitment: Toyota HiLux N90 4WD, GUN226R/GUN227R, 2025-on. This listing is for one strut only. Springs and top mounts are not included unless explicitly selected or purchased separately. Professional installation and wheel alignment are recommended.

Warranty: 5 years / unlimited kilometres, subject to Formula 4x4 manufacturer terms.

Downloads

• Formula 4x4 8000 Series installation instructions (PDF)

SKU: 80423 Components per product: 1 shock absorber / strut Sub-brand: Formula 4x4 Adjustment: three-groove height-adjustable spring seat Open length: 620mm Closed length: 473mm EAN: 9317745081630 Warranty: 5 years / unlimited kilometres

1 × Formula 4x4 80423 front strut 1 × 6061-alloy adjustable spring seat 1 × polyurethane spring-seat isolator Coil spring and top mount are not included

Warranty: Formula 4x4 5 years / unlimited kilometres, subject to manufacturer terms.
