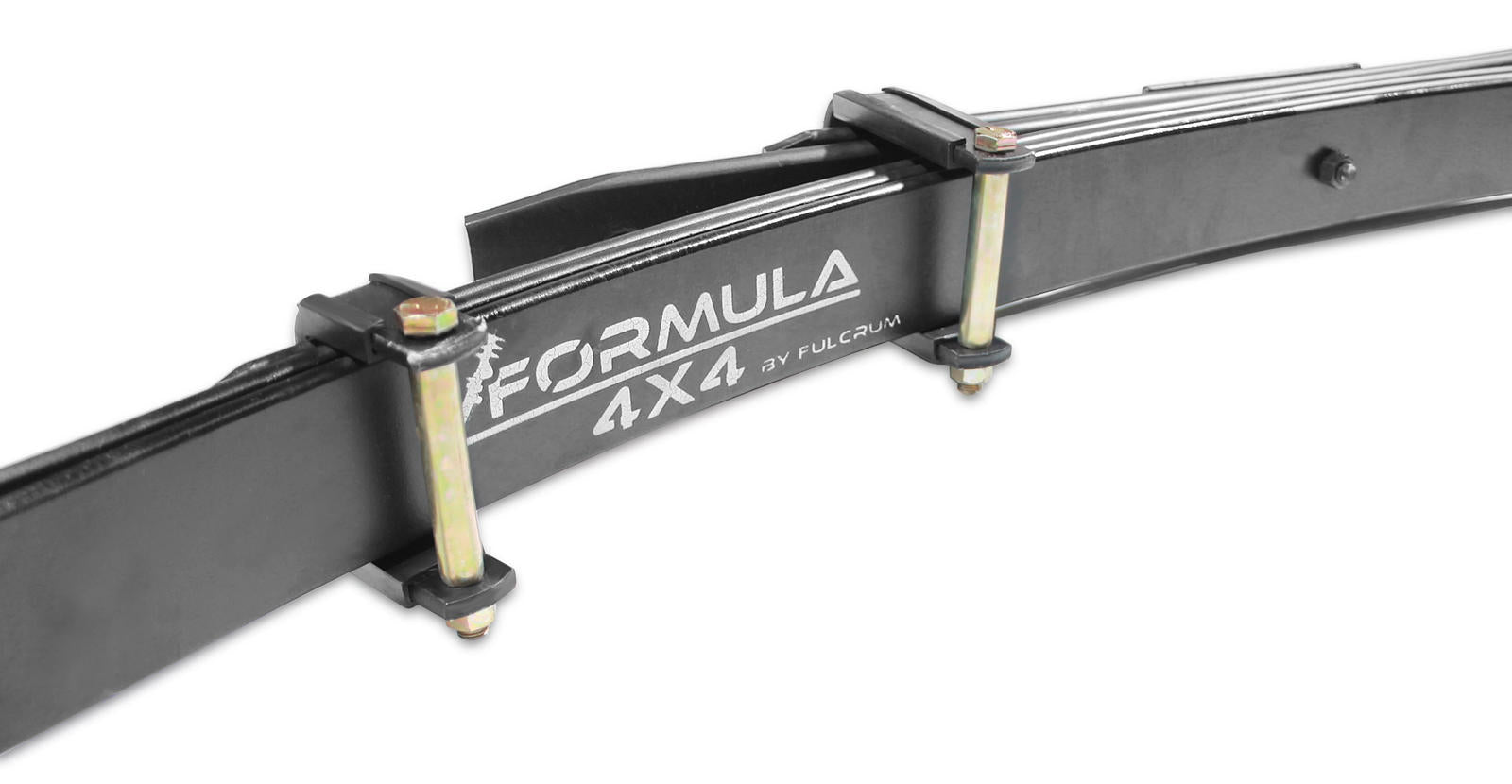

Single heavy-duty Formula 4x4 FLS-105 rear leaf spring for Toyota HiLux N90 and compatible N80 applications. Designed for approximately 45mm of lift at 400–500kg constant rear load.

Specifications

• Leaf-pack composition: 6 main leaves and 2 secondary leaves
• Rear constant load: 400–500kg
• Approximate raised height: 45mm
• EAN: 9317745803096

Kit contents

• 1 × FLS-105 rear leaf spring only

Fitment: Toyota HiLux N90 GUN226R/GUN227R 2025-on. This is one spring, not a pair. Replace U-bolts during installation and use only where the measured permanent rear load matches this heavy-duty spring rate.

SKU: FLS-105 Components per product: 1 leaf spring Position: rear Leaf-pack composition: 6 main, 2 secondary Rear lift: approximately 45mm Constant rear load: 400–500kg Packaged weight: 35.00 kg EAN: 9317745803096 Warranty: 3 years / 60,000 kilometres

1 × FLS-105 Formula 4x4 rear leaf spring

Warranty: Formula 4x4 leaf spring 3 years / 60,000 kilometres, subject to manufacturer terms.
