Complete Formula 4x4 rear leaf-spring package for Toyota HiLux N90 vehicles carrying 0–200kg of constant rear load. It provides approximately 45mm of rear lift when correctly matched to the vehicle and accessories.

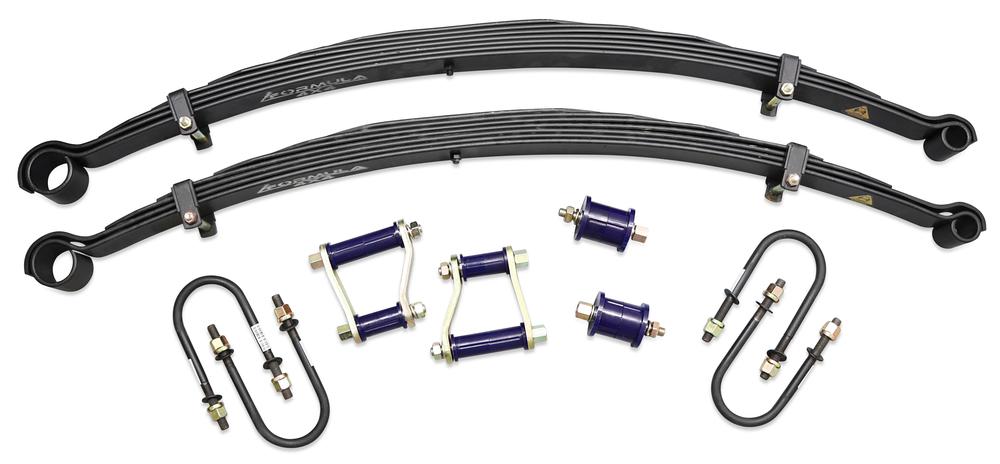

Kit contents

• 2 × FLS-095 Formula 4x4 rear leaf springs
• 4 × FUB-006 Formula 4x4 U-bolts
• 1 × KIT219SK SuperPro shackle, pin and bush kit

Specifications

• Rear constant load: 0–200kg
• Approximate lift: 45mm
• EAN: 9317745838852
• Long-travel rear shock absorbers must be fitted

Fitment: Toyota HiLux N90 GUN226R/GUN227R 2025-on and listed compatible N80 applications. Excludes Rogue wide-body and GR Sport. Confirm actual constant load before ordering.

SKU: FLSKIT-095 Components per product: 1 complete rear leaf-spring kit Rear lift: approximately 45mm Constant rear load: 0–200kg Long-travel shocks required Packaged weight: 70.00 kg EAN: 9317745838852 Warranty: 3 years / 60,000 kilometres

2 × FLS-095 Formula 4x4 rear leaf springs 4 × FUB-006 Formula 4x4 U-bolts 1 × KIT219SK SuperPro shackle, pin and bush kit

Warranty: Formula 4x4 leaf-spring kit 3 years / 60,000 kilometres, subject to manufacturer terms.
