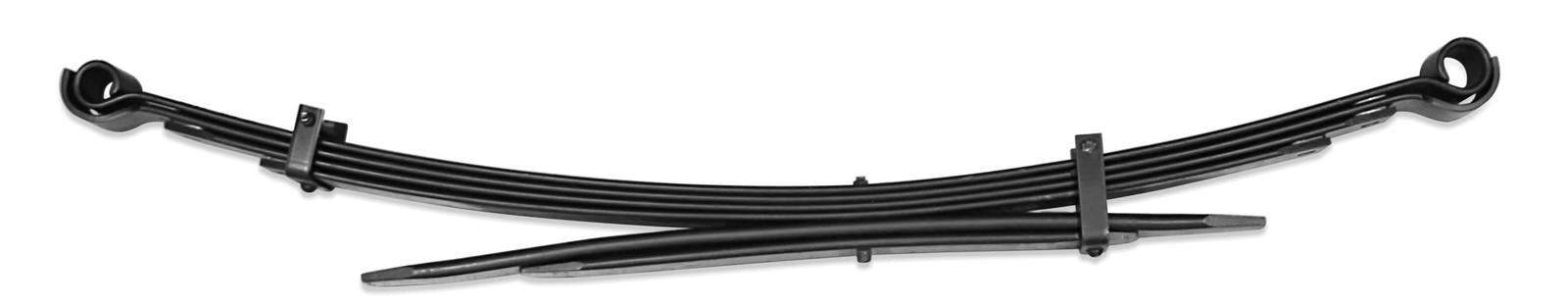

Formula 4x4 FLS-151 rear leaf spring for GWM Ute/Cannon 2020-on. It provides approximately 40 mm lift when matched to a 0–200 kg constant rear load.

This listing is for one leaf spring only, not a pair. Two are required per vehicle.

Specifications

• Fitting position: Rear axle.
• Nominal lift: Approximately 40 mm.
• Constant rear load: 0–200 kg.
• Leaf-pack composition: 4 main leaves and 2 secondary leaves.
• Quantity supplied: 1 spring.
• Quantity required per vehicle: 2.

Fitment

Suits GWM Ute/Cannon 2020-on leaf-spring rear suspension. Match both rear springs and replace U-bolts during installation. Long-travel rear shock absorbers are required when this spring forms part of the supplier’s raised rear kit. Confirm vehicle configuration and permanent rear load before ordering. Professional installation and a post-fit wheel alignment are recommended.

SKU: FLS-151 Fitting position: Rear axle Nominal lift: Approximately 40 mm Constant rear load: 0–200 kg Leaf-pack composition: 4 main, 2 secondary Components per product: 1 single leaf spring Kits required per vehicle: 2 Sub-brand: Formula 4x4 EAN: 9317745811114

1 × Formula 4x4 FLS-151 rear leaf spring This product is sold individually; order quantity 2 for one vehicle.

Warranty: 3 years or up to 60,000 km, subject to manufacturer terms, correct application and installation.
