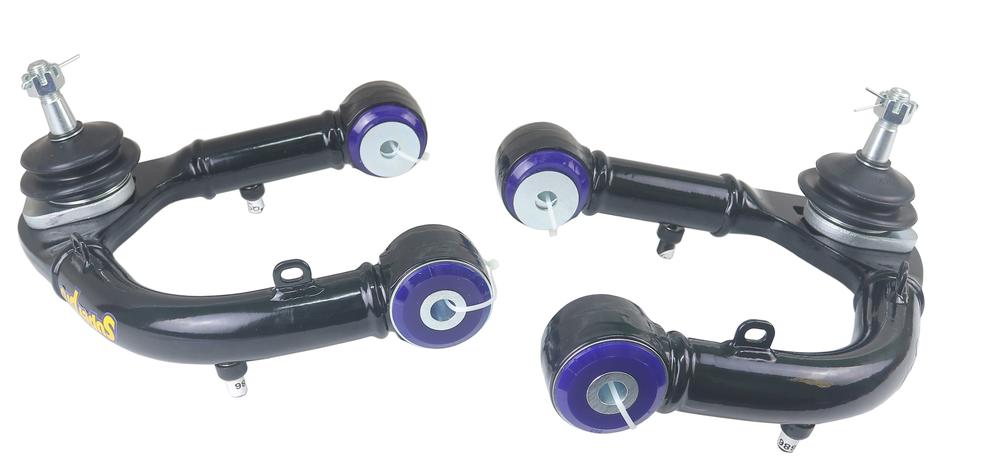

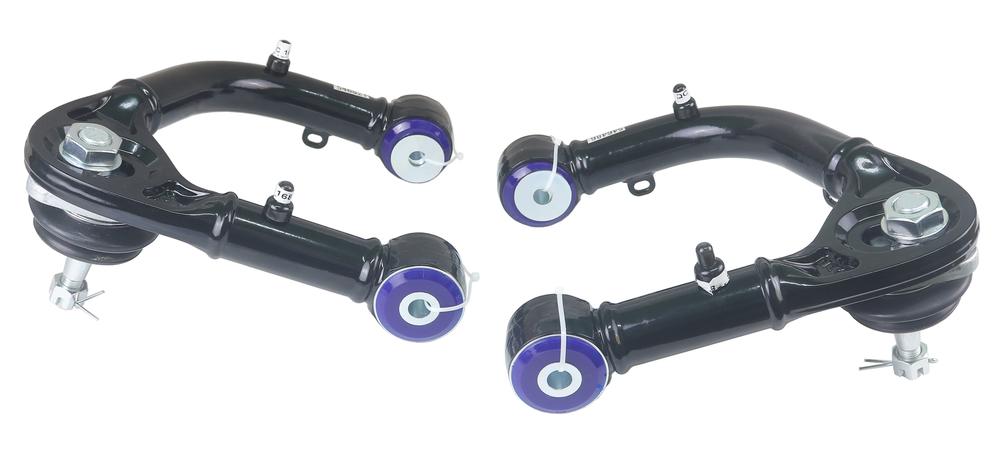

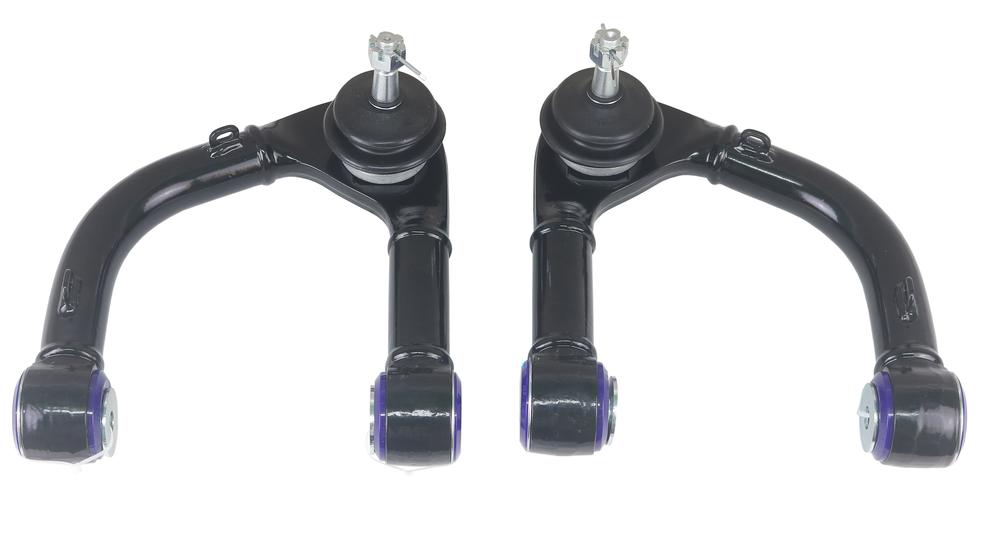

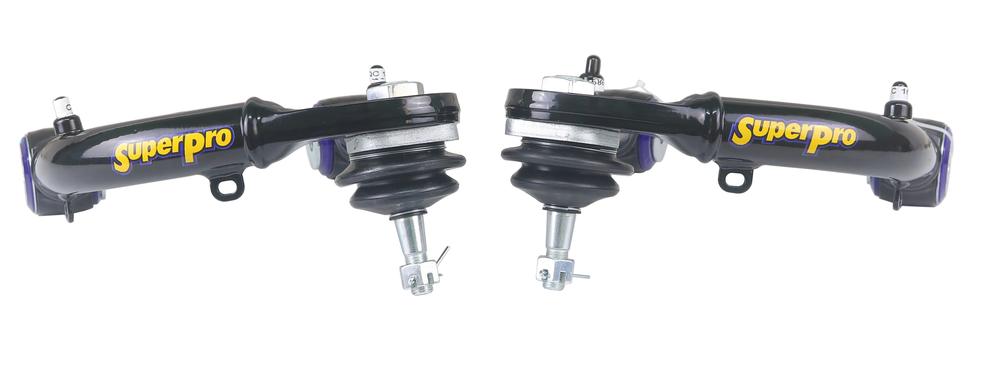

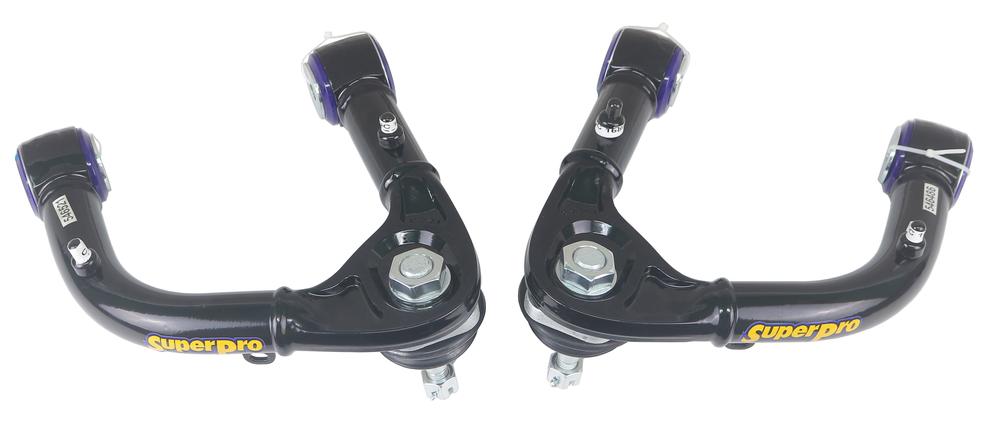

SuperPro Adjustable Upper Control Arms – Ranger PX, Everest & Mazda BT-50 (TRC8560)

The SuperPro TRC8560 adjustable front upper control arm kit is designed for Ford Ranger PX, Ford Everest and Mazda BT-50 vehicles with a 25–75 mm (1–3 inch) suspension lift. Its adjustable high-articulation ball joints provide fine camber and caster correction while maintaining clearance and suspension travel.

Features

• On-car adjustable camber and caster correction
• Heavy-duty high-articulation adjustable ball joints included
• Approximately ±1° additional camber adjustment on the Ranger platform
• High-strength forged and tubular steel construction
• Three-stage powder-coated finish
• Pre-installed SuperPro polyurethane bushings
• VSB 14 compliant
• Designed, tested and engineered in Australia

Kit contents

• 1 × left-hand adjustable front upper control arm assembly
• 1 × right-hand adjustable front upper control arm assembly
• Pre-installed adjustable high-articulation ball joints
• Pre-installed SuperPro polyurethane bushings
• Required installation washers and hardware

Fitment

• Ford Ranger PX/PXII/PXIII, 2011–2021
• Ford Everest UA, 2015–2022
• Mazda BT-50 UP/UR, 2011–2020

Important: Confirm the exact model, year, drivetrain and lift height before ordering. Professional installation and a front wheel alignment are required. The supplied fitting guide includes recommended ball-joint settings for 50 mm and 75 mm lifts.

Downloads

• TRC8560 installation and alignment guide (PDF)
• Supplier product and fitment information

SKU: TRC8560 Brand: SuperPro Product type: Adjustable front upper control arm kit Alignment adjustment: Camber/caster Adjustment type: Eccentric; on-car adjustable Camber adjustment: approximately ±1° on the Ranger platform Lift suitability: approximately 25–75 mm (1–3 inch) Ball joints: Included; heavy-duty high-articulation adjustable type Components per kit: 2 arms Packaged weight: 11.00 kg Package dimensions: 42.5 × 34 × 17 cm Installation time: approximately 2 hours EAN: 9317745801337

1 × left-hand adjustable front upper control arm assembly 1 × right-hand adjustable front upper control arm assembly Pre-installed adjustable high-articulation ball joints Pre-installed SuperPro polyurethane bushings Required installation washers and hardware

Lifetime warranty, subject to manufacturer terms and conditions.
