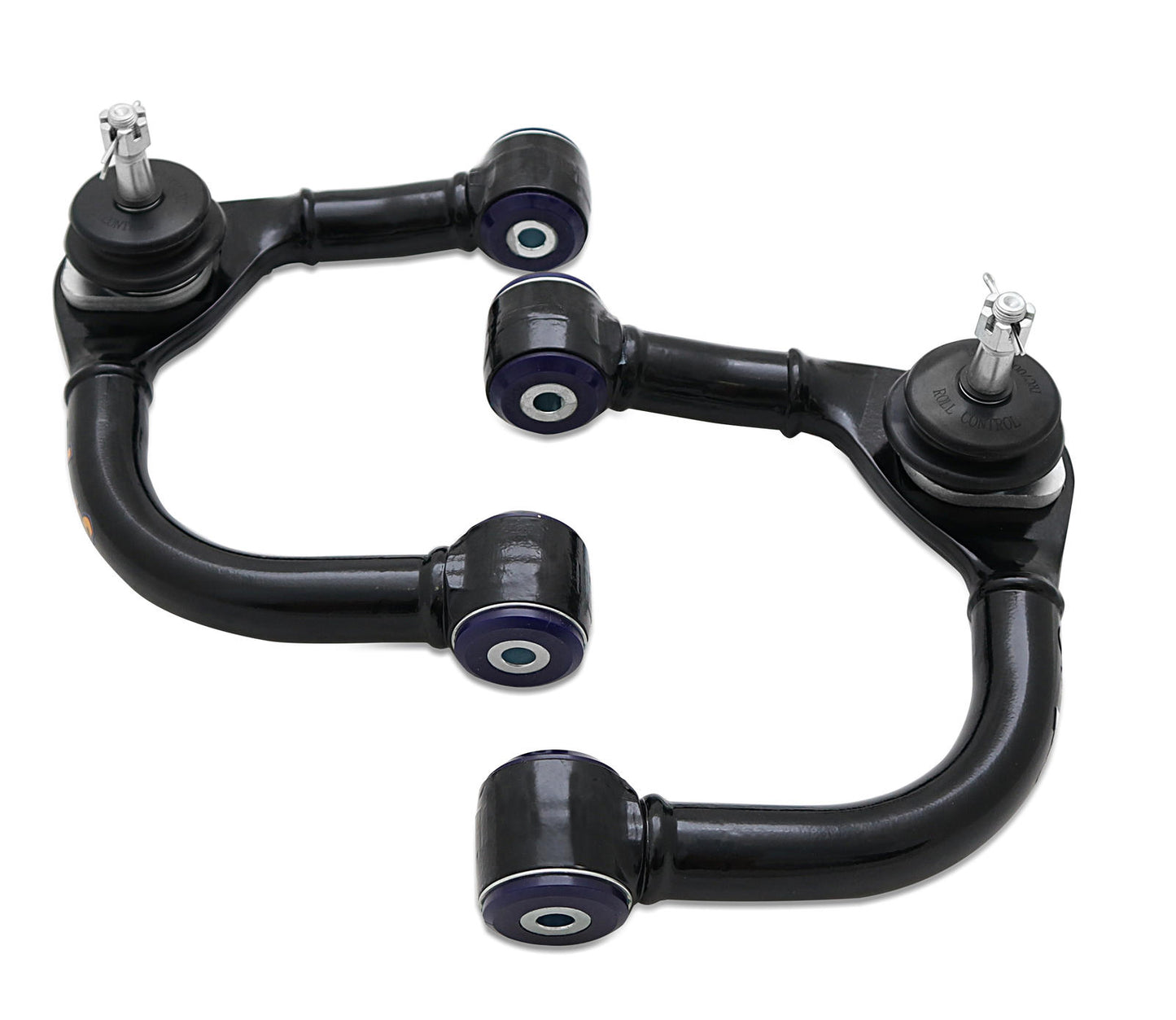

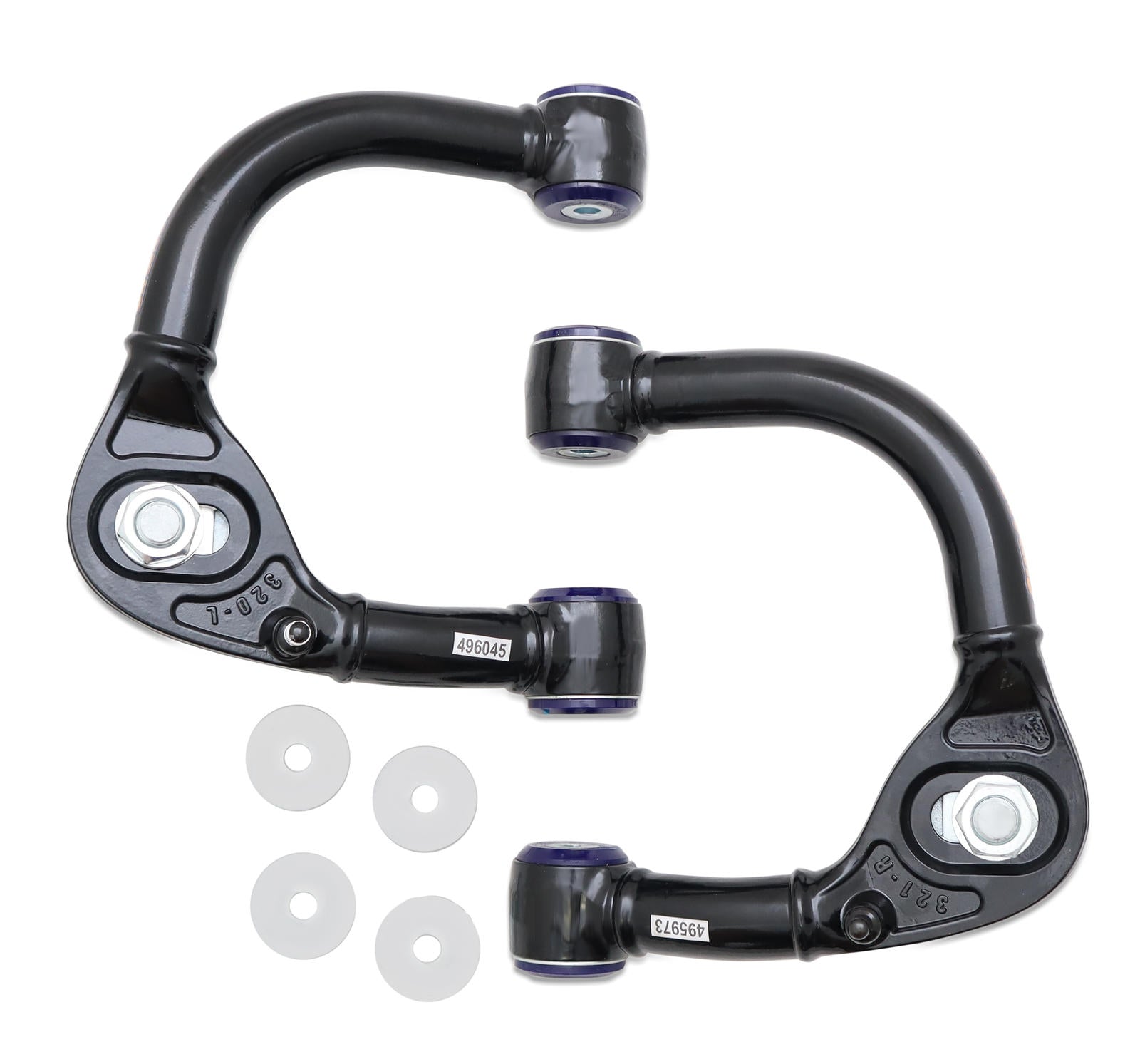

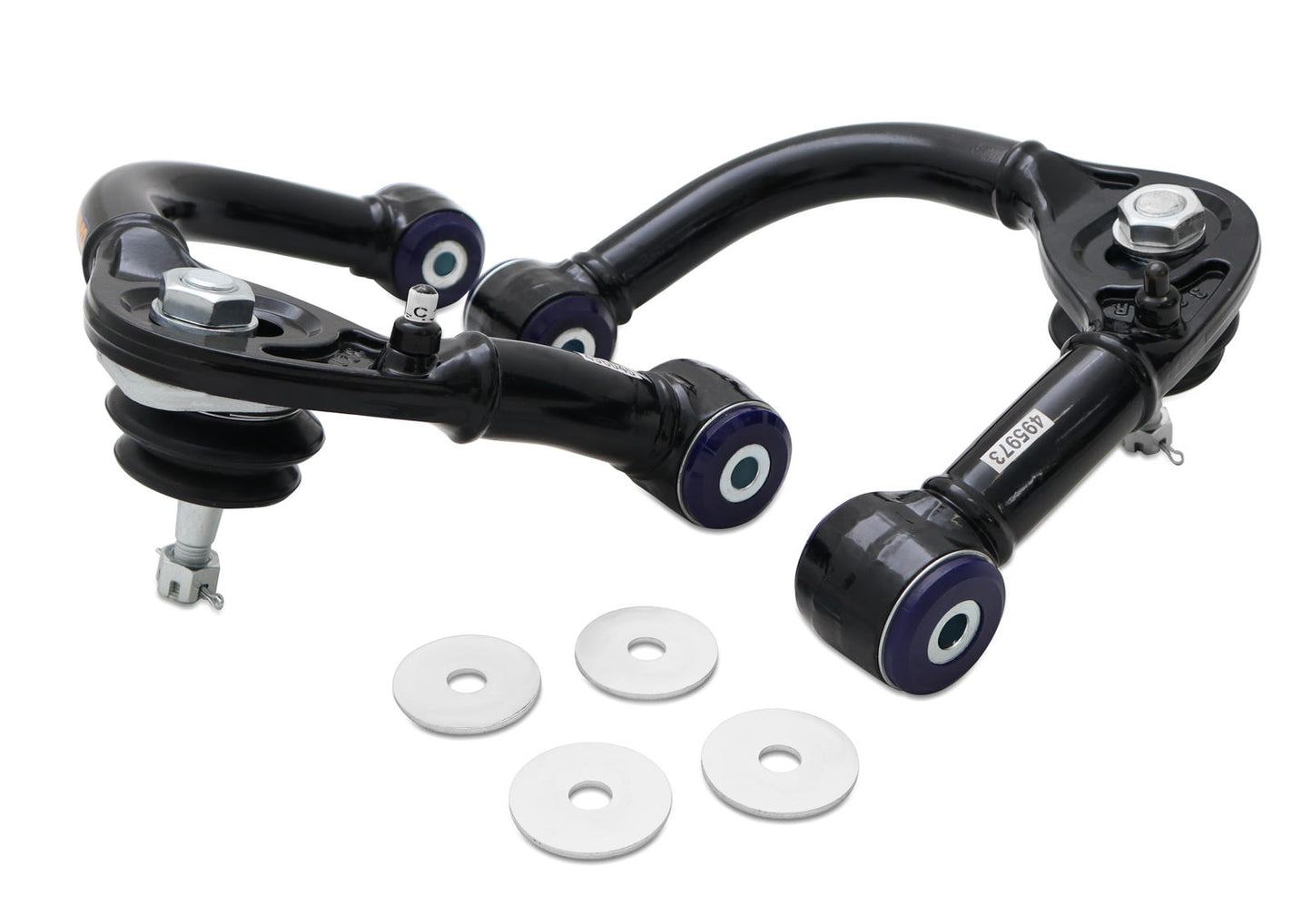

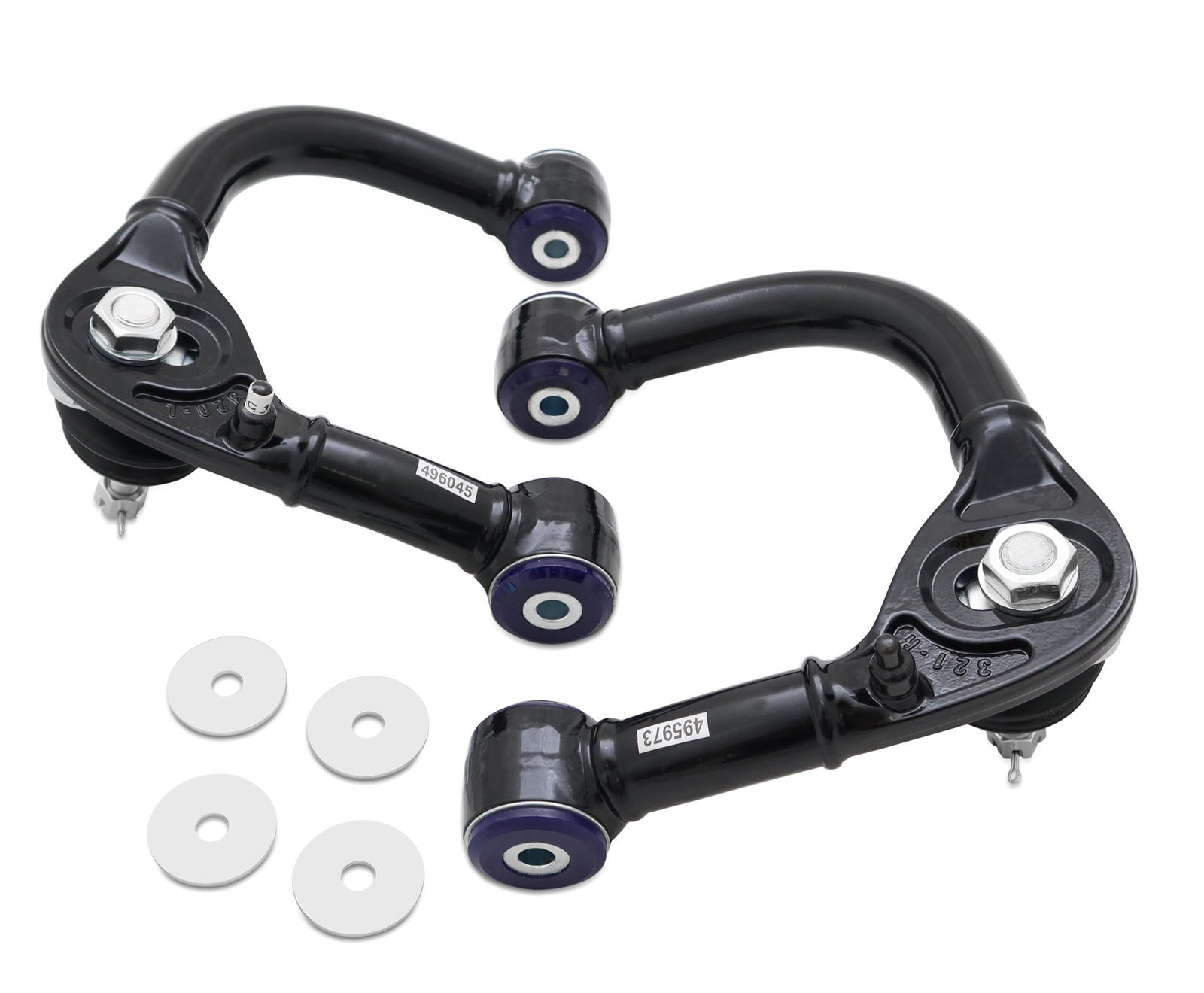

SuperPro Adjustable Front Upper Control Arm Kit – Toyota HiLux N90

SuperPro adjustable front upper-control-arm kit for compatible Toyota HiLux, Fortuner and Foton Tunland 4WD vehicles, including the HiLux N90. Designed for vehicles lifted approximately one to three inches, the kit provides independent camber and caster correction with greater ball-joint articulation and coil-over clearance.

Key features

• Two complete adjustable upper control arms
• Heavy-duty high-articulation adjustable ball joints
• Approximately ±1.5 degrees camber and caster adjustment
• SuperPro polyurethane control-arm bushings
• Forged-steel housings and robot-welded steel tube construction
• Three-stage powder-coated finish
• VSB 14 compliant application design

Fitment

Fits listed Toyota HiLux N90, earlier HiLux, Fortuner and Foton Tunland applications. Confirm vehicle, suspension height and alignment requirements before ordering. Professional installation and a post-fit wheel alignment are required.

Warranty

3 years or 60,000 km, subject to SuperPro manufacturer terms.

Downloads

TRC8470IS installation sheet on the manufacturer page

SKU: TRC8470 EAN: 9317745801375 Position: Front upper Components per product: 2 arms Adjustment: approximately ±1.5° camber and caster Lift suitability: approximately 1–3 inches Sub-brand: SuperPro Roll Control

2 x adjustable front upper control-arm assemblies 2 x heavy-duty adjustable ball joints Pre-installed SuperPro polyurethane control-arm bushings

Warranty: 3 years or 60,000 km, subject to SuperPro manufacturer terms.
