SuperPro Caster-Correction Radius Arm Kit – Toyota LandCruiser 76/78/79/80/105, Straight Arms (TRC1216)

The SuperPro TRC1216 caster-correction radius arm kit is a direct-replacement front suspension upgrade for Toyota LandCruiser 76, 78, 79, 80 and 105 Series vehicles fitted with straight front radius arms and a 50–75 mm (2–3 inch) suspension lift.

Raising these vehicles reduces positive caster, which can cause vague steering, reduced straight-line stability and steering shimmy. TRC1216 builds the required correction into the arm geometry: approximately 4° correction for a 50 mm lift and approximately 2.5° correction for a 75 mm lift.

Features

• Heavy-duty left- and right-hand radius arm assemblies
• Built-in caster correction for lifted vehicles
• Approximately 4° correction at 50 mm lift
• Approximately 2.5° correction at 75 mm lift
• Pre-installed SuperPro bushings
• Direct-replacement straight-arm design
• Designed, tested and engineered in Australia

Kit contents

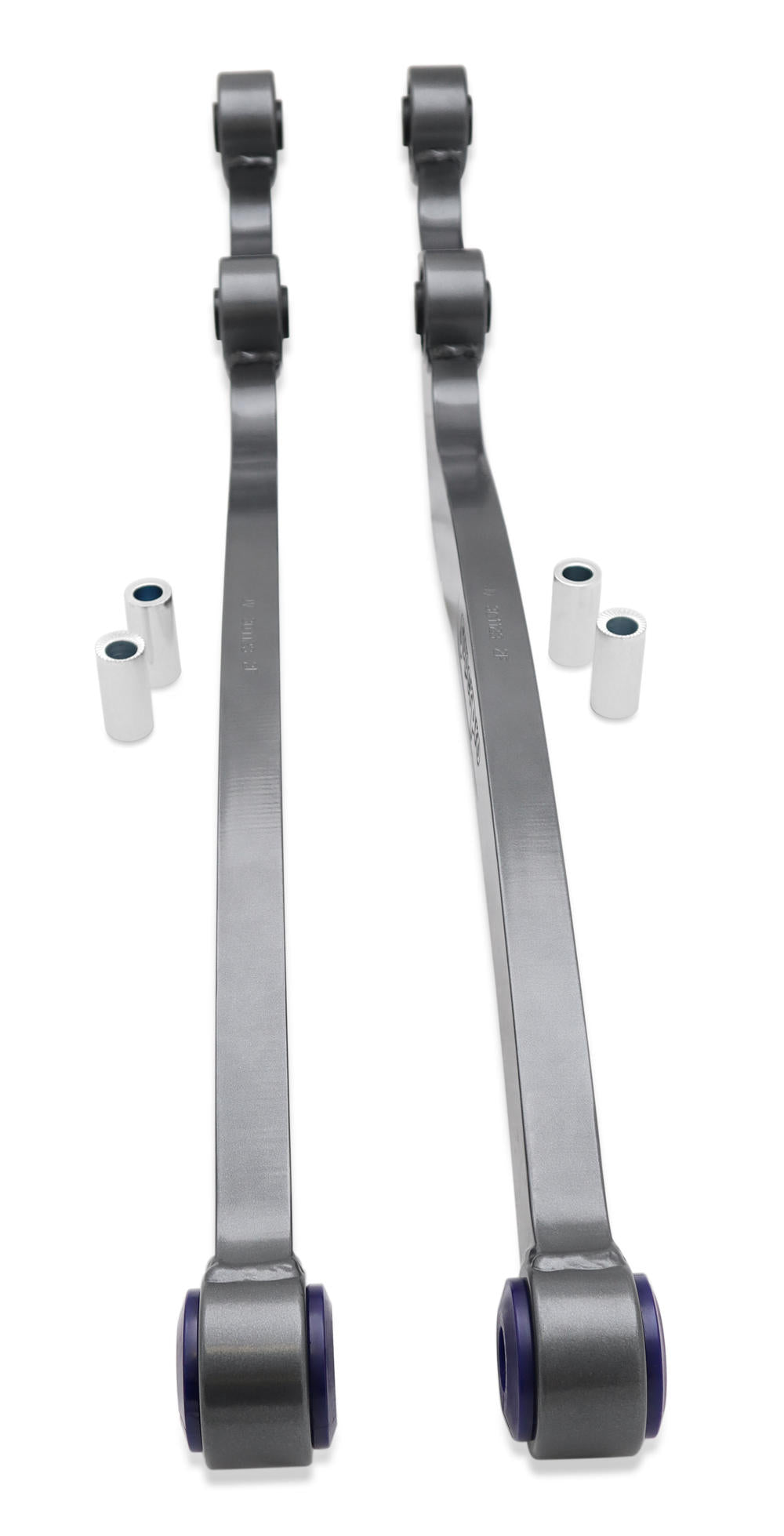

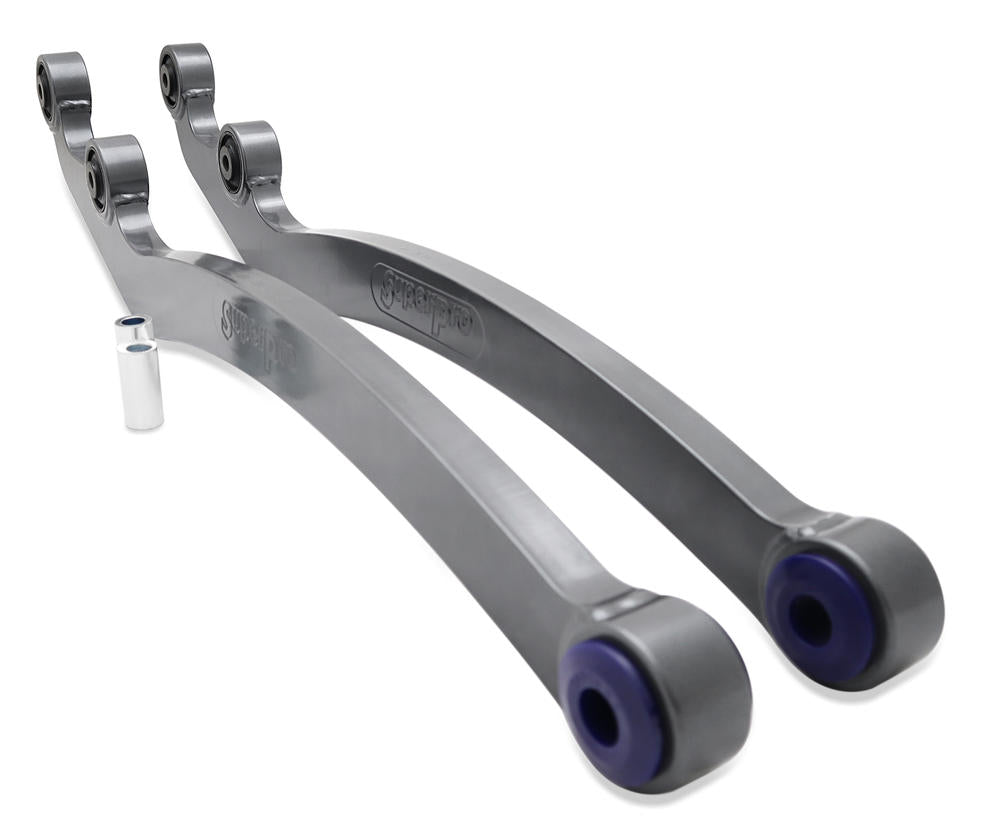

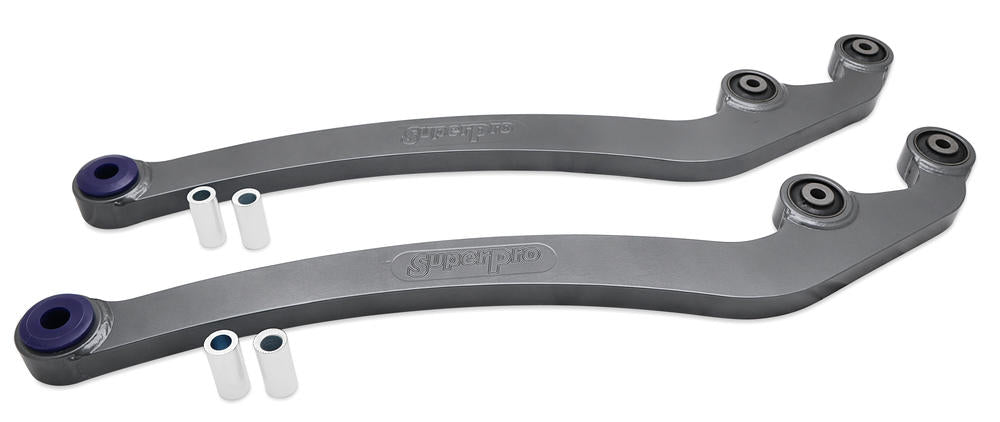

• 1 × left-hand SuperPro caster-correction radius arm assembly
• 1 × right-hand SuperPro caster-correction radius arm assembly
• Pre-installed bushings

Fitment

• Toyota LandCruiser 76 Series with straight front radius arms, up to 07/2016
• Toyota LandCruiser 78 Series with straight front radius arms, up to 07/2016
• Toyota LandCruiser 79 Series with straight front radius arms, up to 07/2016
• Toyota LandCruiser 80 Series with straight front radius arms
• Toyota LandCruiser 105 Series with straight front radius arms

Important: This kit is for vehicles with straight front radius arms. Confirm the arm style, build date and lift height before ordering. Professional installation and a post-fit wheel alignment are recommended.

Downloads

• TRC1216 product and fitment information

SKU: TRC1216 Brand: SuperPro Product type: Front caster-correction radius arm kit Arm style: Straight-arm replacement Lift suitability: 50–75 mm (2–3 inch) Caster correction: approximately 4° at 50 mm lift; approximately 2.5° at 75 mm lift Components per kit: 2 arms Packaged weight: 36.00 kg Package dimensions: 115 × 24 × 18 cm EAN: 9317745835110

1 × left-hand SuperPro caster-correction radius arm assembly 1 × right-hand SuperPro caster-correction radius arm assembly Pre-installed SuperPro bushings

Lifetime warranty, subject to manufacturer terms and conditions.
