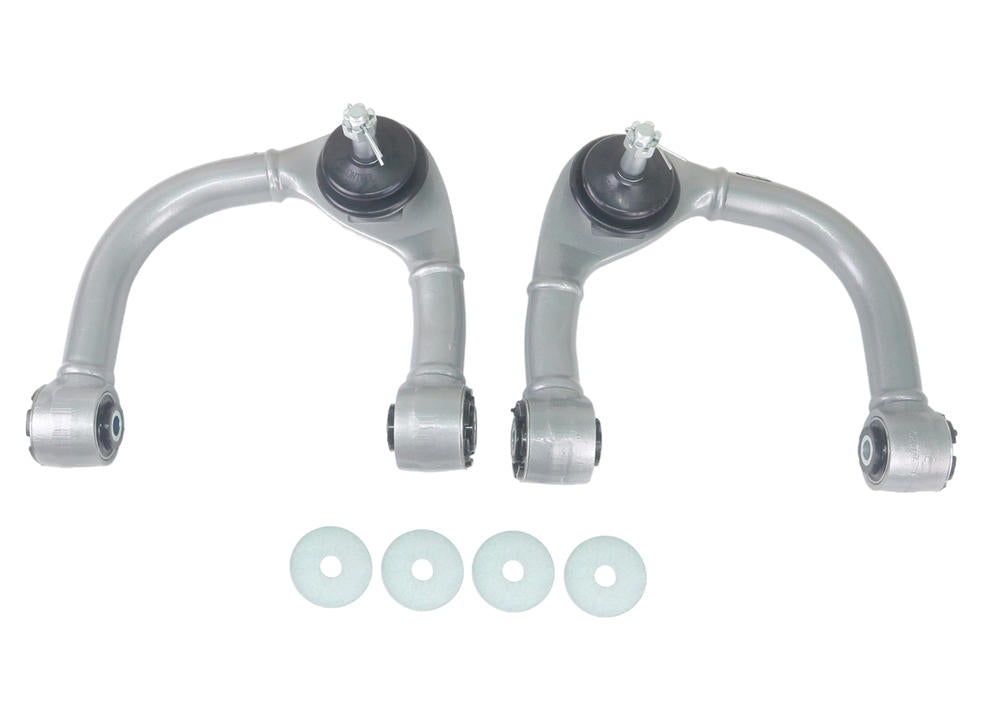

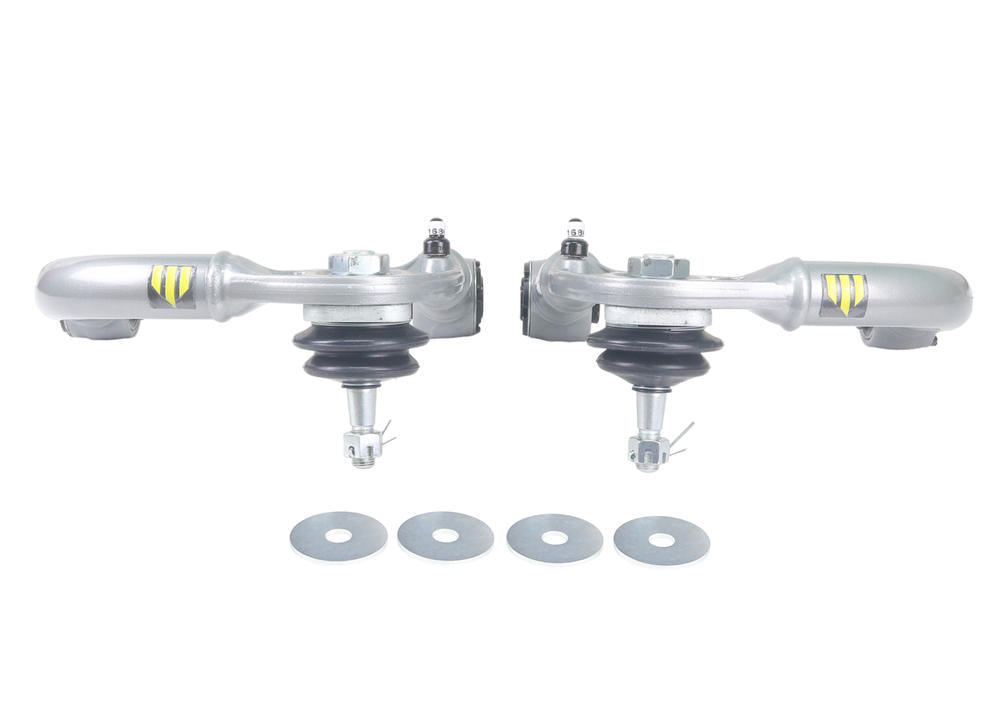

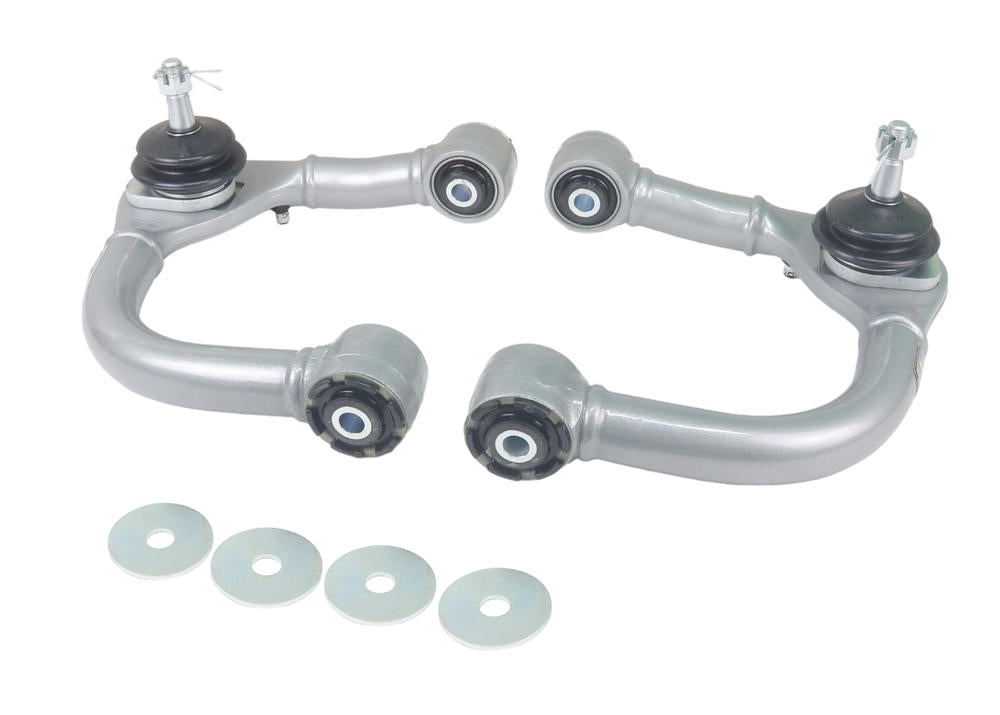

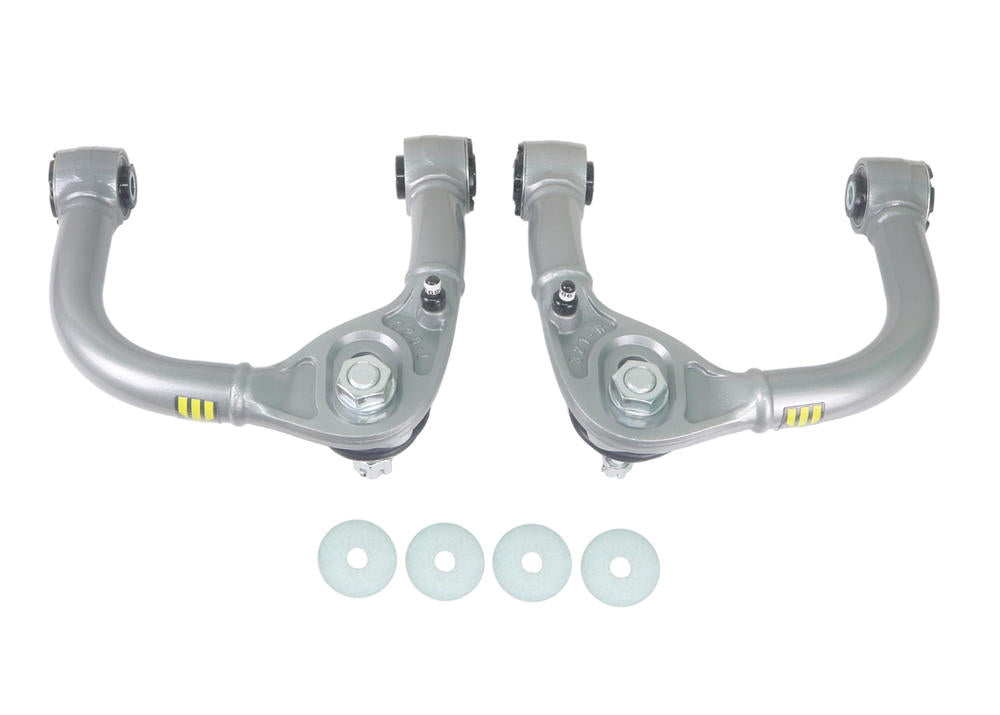

Whiteline Adjustable Front Upper Control Arm Kit – Toyota HiLux N90

Whiteline adjustable front upper-control-arm pair for compatible Toyota HiLux, Fortuner and Foton Tunland 4WD vehicles, including the HiLux N90. The arms restore usable alignment adjustment and improve coil-over clearance on vehicles lifted approximately 30–70 mm.

Key features

• Two complete performance upper control arms
• Designed for approximately 30–70 mm lifted vehicles
• Approximately +0.5 to +3.5 degrees caster adjustment
• Approximately −1.5 to +1.5 degrees camber adjustment at a nominal 50 mm lift
• Maintenance-free GIIRO bushing technology
• Improved ball-joint articulation and coil-over clearance

Fitment

Fits listed Toyota HiLux N90, earlier HiLux, Fortuner and Foton Tunland applications. Confirm suspension height and alignment requirements before ordering. Professional installation and a post-fit wheel alignment are required.

Warranty

3 years or 60,000 km, subject to Whiteline manufacturer terms.

Downloads

Z6194 installation guide (PDF)

SKU: KTA342 EAN: 9319924475919 Position: Front upper Components per product: 2 arms Caster range: approximately +0.5° to +3.5° Camber range: approximately −1.5° to +1.5° at nominal 50 mm lift Lift suitability: approximately 30–70 mm Sub-brand: Whiteline Performance

2 x adjustable front upper control-arm assemblies Pre-installed ball joints and maintenance-free GIIRO bushings

Warranty: 3 years or 60,000 km, subject to Whiteline manufacturer terms.
