SuperPro Fixed-Offset Upper Control Arm Kit – LandCruiser 100 & Lexus LX470 (TRC6720)

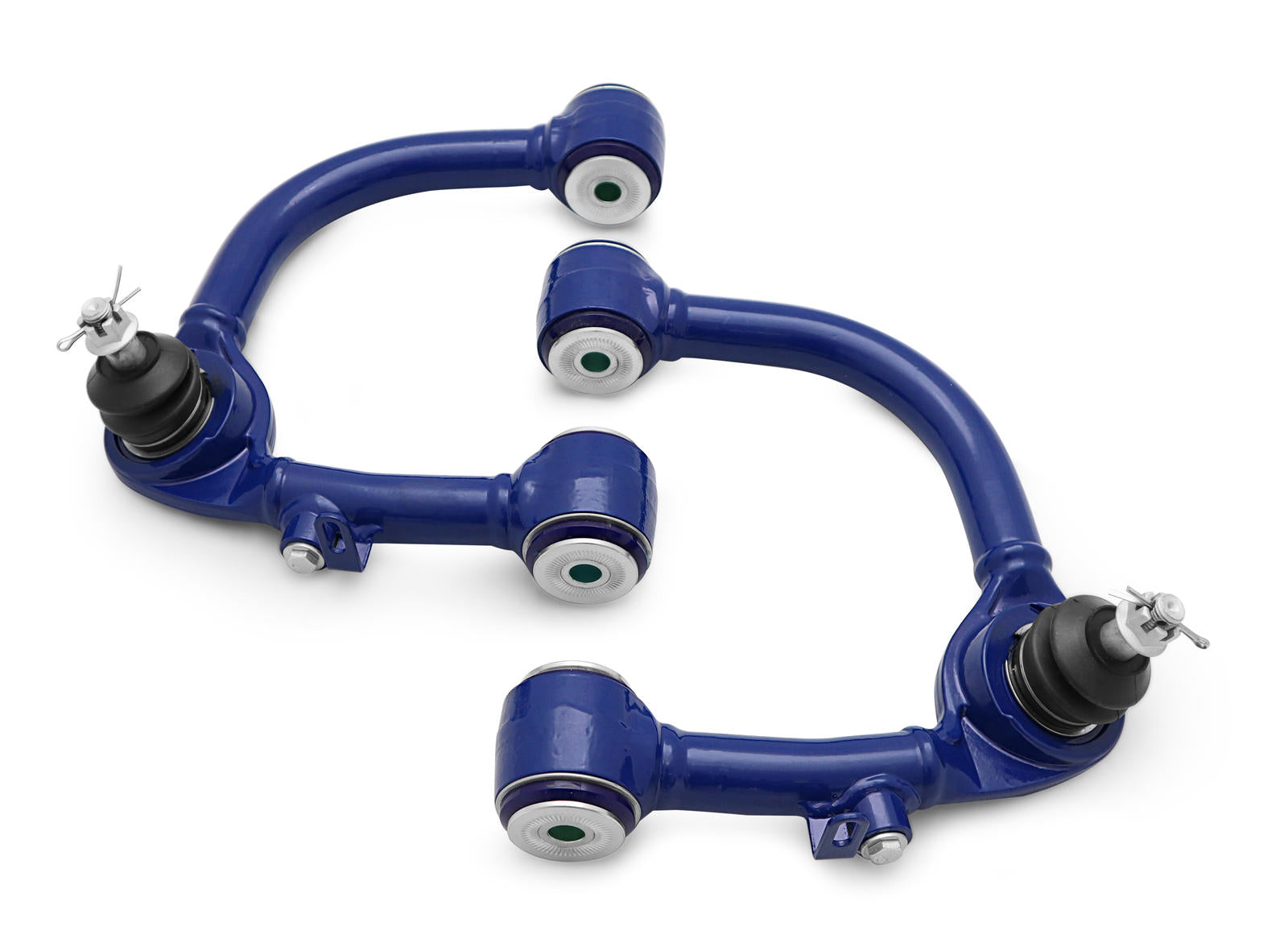

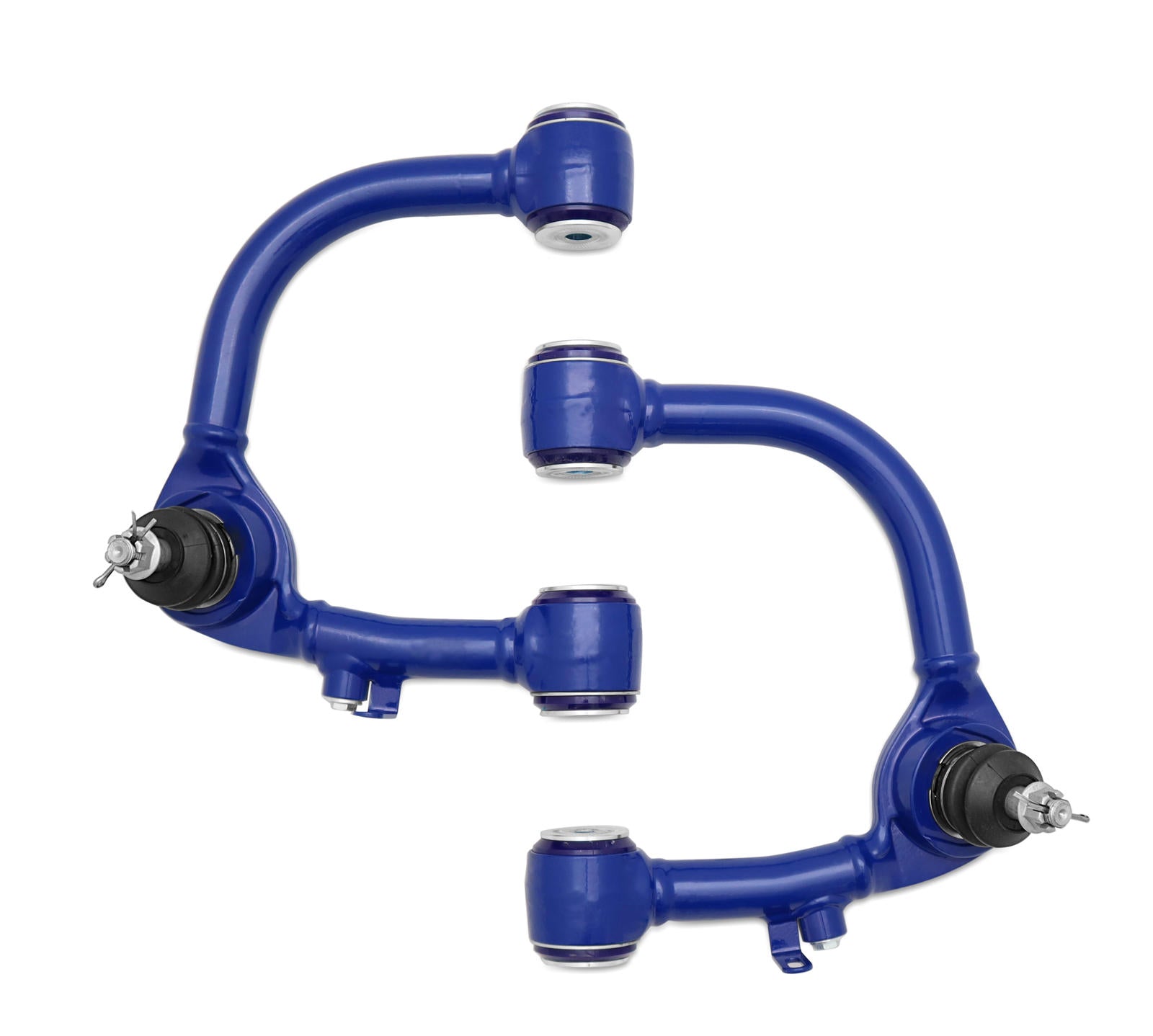

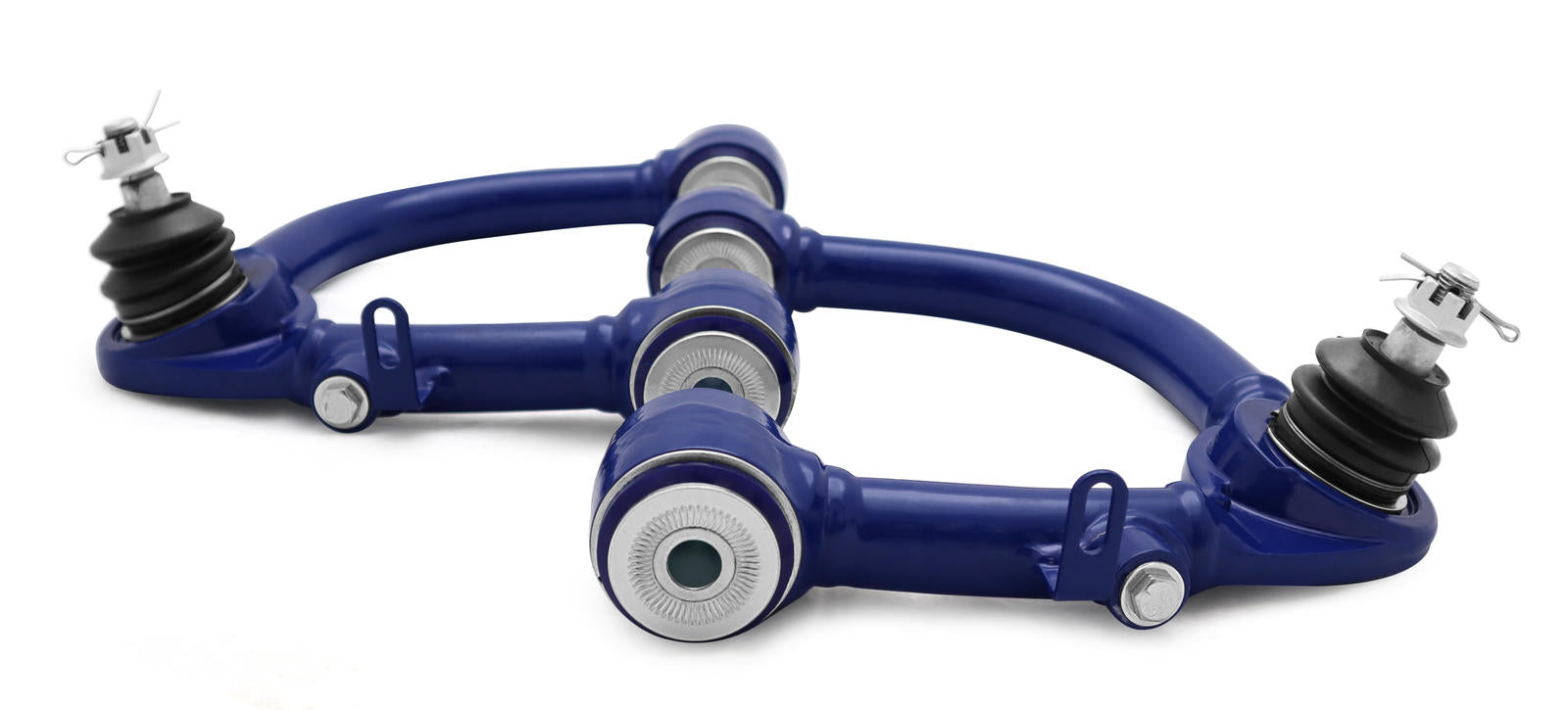

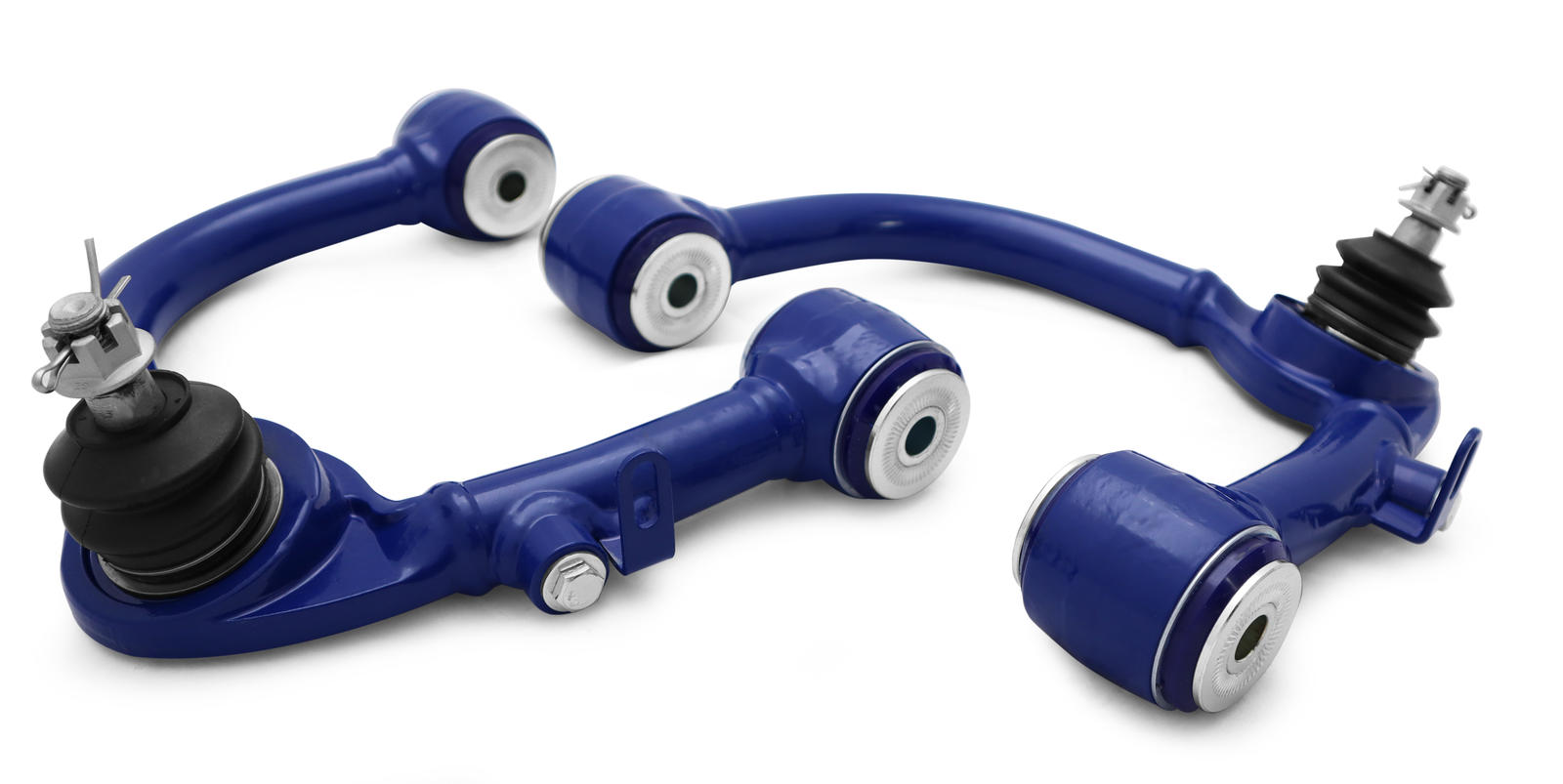

The SuperPro TRC6720 fixed-offset front upper control arm kit is designed for Toyota LandCruiser 100 Series and Lexus LX470 vehicles with a 25–75 mm (1–3 inch) suspension lift. Its corrected geometry helps restore camber and caster after lifting while the high-articulation ball joints and polyurethane bushings improve clearance, articulation and alignment stability.

Features

• Fixed-offset alignment correction for 1–3 inch lifted vehicles
• Heavy-duty high-articulation ball joints included
• High-strength steel construction with robot-welded assemblies
• Pre-installed SuperPro polyurethane bushings
• Mounting provisions for original ABS wiring and AHC ride-height sensors
• VSB 14 compliant
• Designed, tested and engineered in Australia

Kit contents

• 1 × left-hand front upper control arm assembly
• 1 × right-hand front upper control arm assembly
• Pre-installed ball joints and polyurethane bushings

Fitment

• Toyota LandCruiser 100 Series, 1998–2007
• Lexus LX470 J100, 1998–2007

Important: Intended for vehicles with a 25–75 mm (1–3 inch) suspension lift. Confirm the exact variant and suspension configuration before ordering. Professional installation and a front wheel alignment are required.

Downloads

• TRC6720 installation instructions (PDF)
• Supplier product and fitment information

SKU: TRC6720 Brand: SuperPro Product type: Fixed-offset front upper control arm kit Adjustment: Fixed camber/caster correction Lift suitability: 25–75 mm (1–3 inch) Ball joints: Included; heavy-duty high-articulation Components per kit: 2 arms Packaged weight: 10.20 kg Package dimensions: 42.5 × 34 × 17 cm EAN: 9317745800408

1 × left-hand front upper control arm assembly 1 × right-hand front upper control arm assembly Pre-installed heavy-duty ball joints Pre-installed SuperPro polyurethane bushings

Lifetime warranty, subject to manufacturer terms and conditions.
