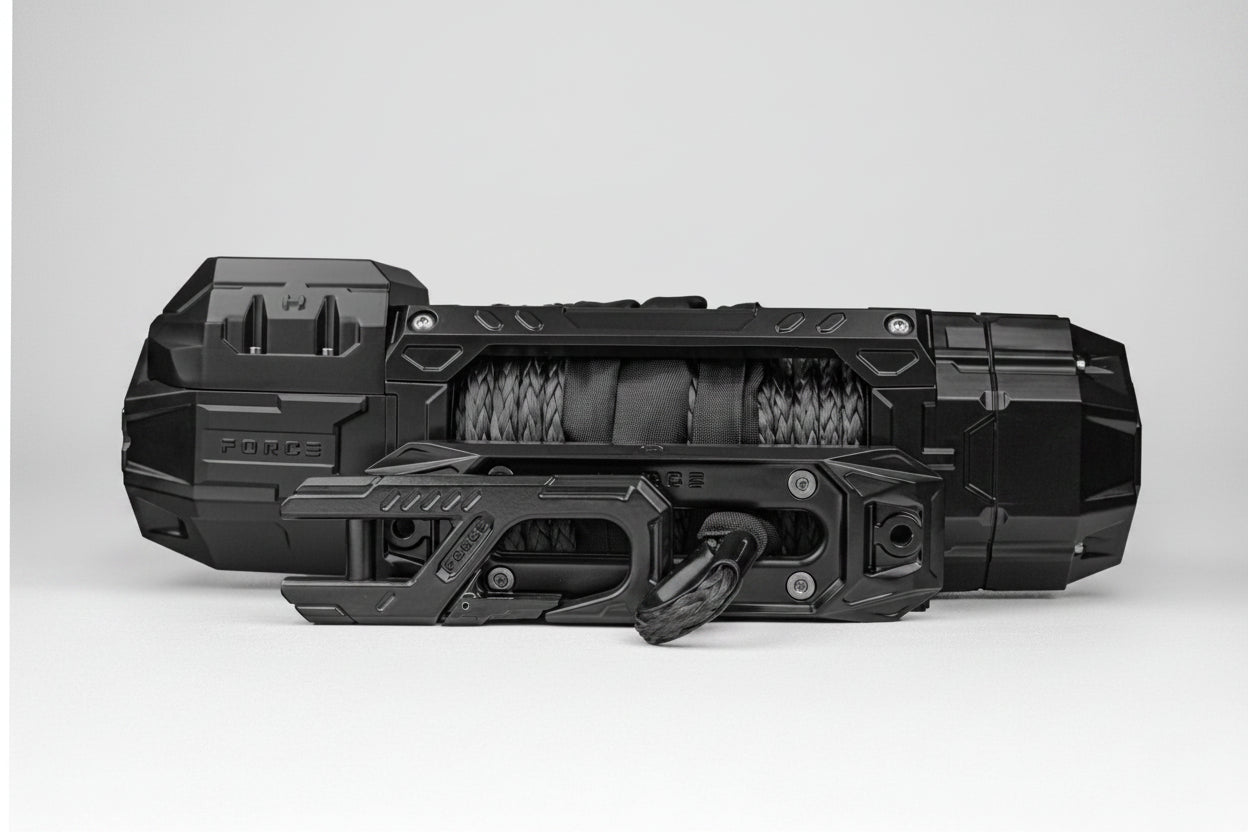

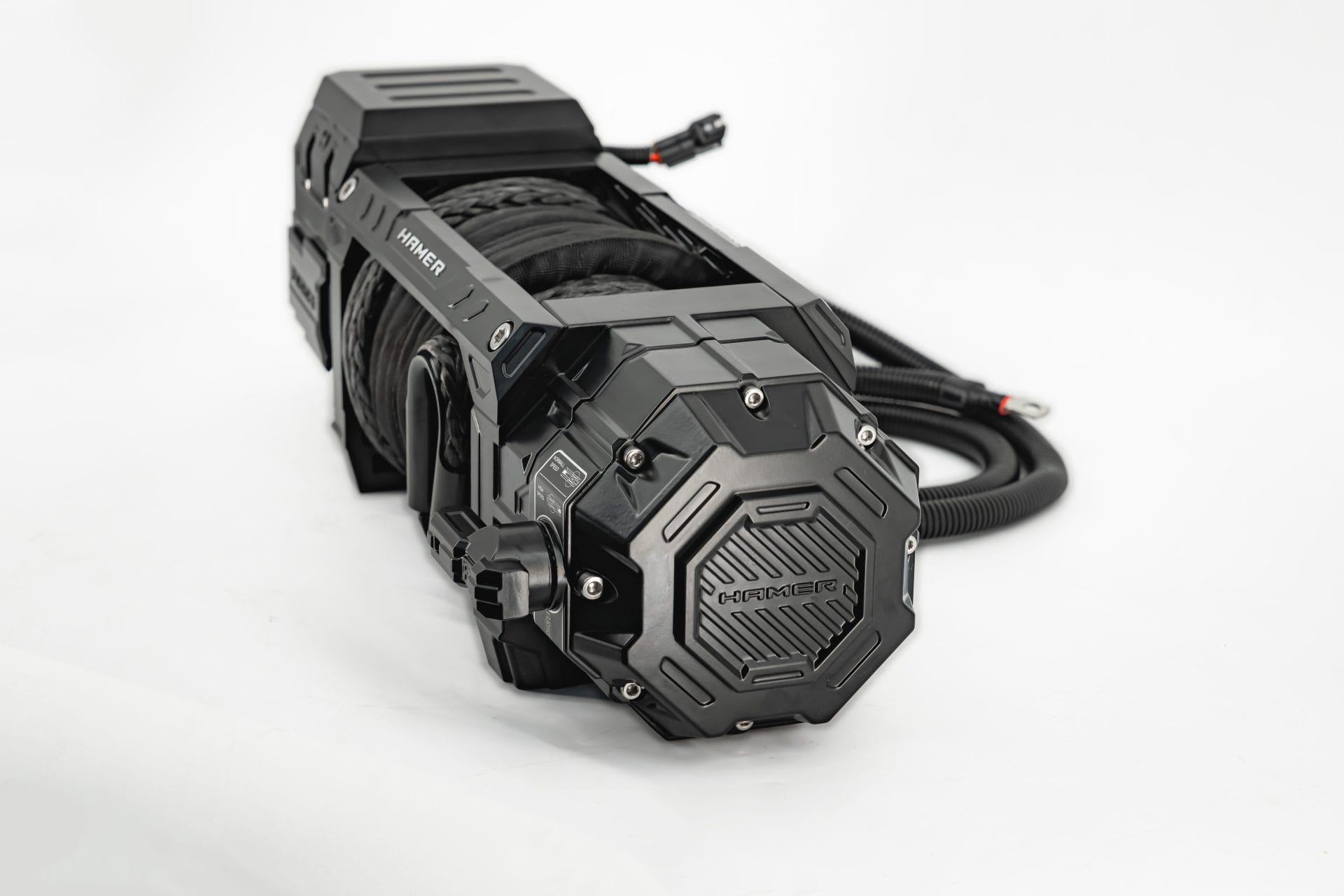

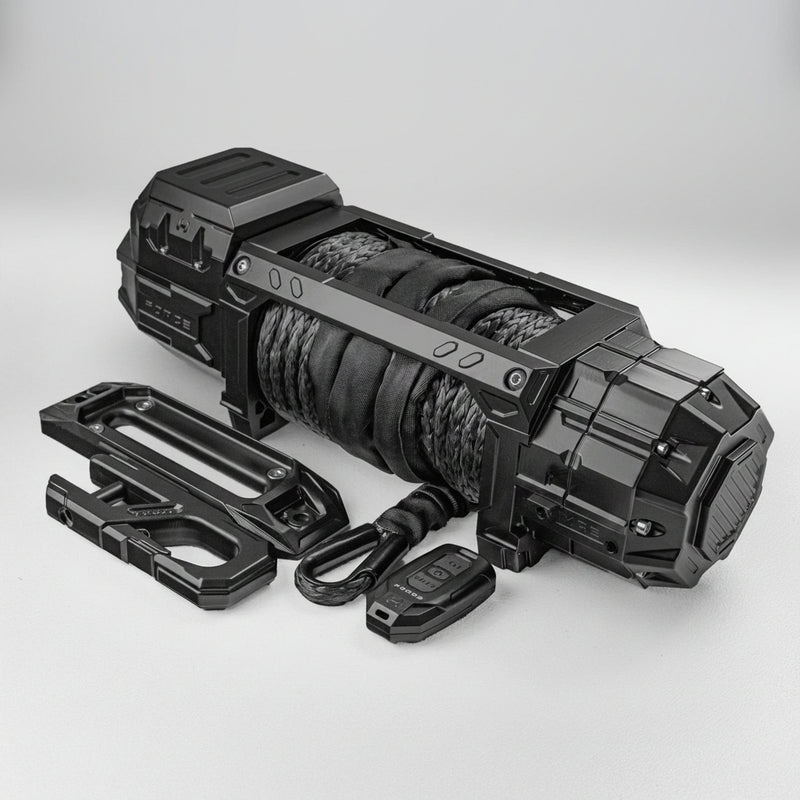

Hamer Force 12 Winch — 12,000 lb

A heavy-duty recovery winch with a 4.5 kW motor, switchable two-speed gearbox, four-stage planetary gearing, synthetic rope and dual wireless/wired control.

Specifications

• Model/SKU: HA407-120
• Rated line pull, first layer: 12,000 lb / 5,443 kg
• Motor: 4.5 kW / 6.0 hp
• Gearbox: switchable two-speed, four-stage planetary gear
• Brake: gearbox-mounted 100% load-holding proportional spring brake
• Clutch: rotating ring gear with turn handle
• Contactor: 500 A DC
• Remote: wireless to 25 m plus 3 m wired lead

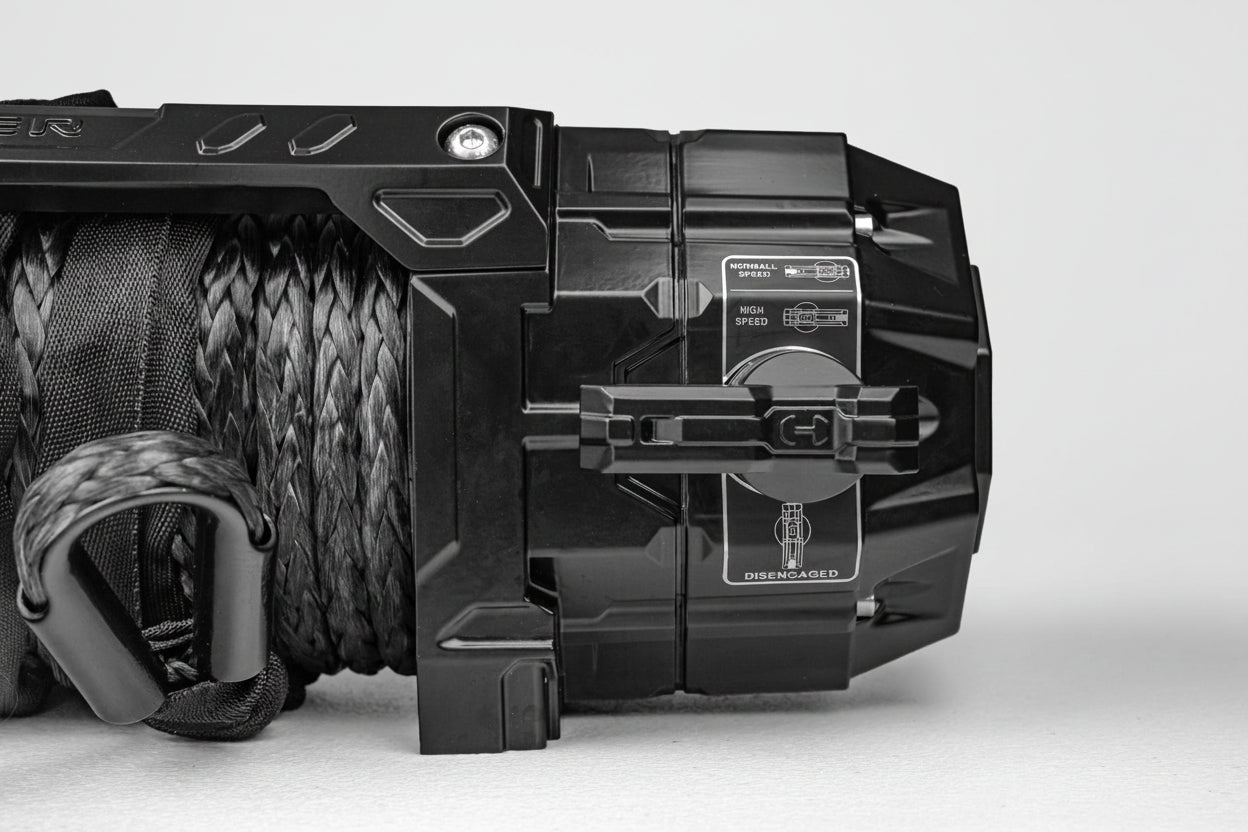

• Rope: black 11 mm × 24 m synthetic rope with protective sleeve
• Fairlead: aircraft-grade aluminium hawse with integrated magnets
• Waterproof rating: IP68 motor and gearbox
• Finish: electrophoresis-pretreated black satin powder coat

Dimensions and freight

Product dimensions: 563 × 194 × 185 mm. Weight: 27 kg. Estimated packed size: 610 × 280 × 260 mm.

Freight: $35 flat domestic freight. Remote-area and island surcharges may require a separate quote.

SKU: HA407-120 Rated line pull: 12,000 lb / 5,443 kg Motor: 4.5 kW / 6.0 hp Gearbox: 2-speed, 4-stage planetary Contactor: 500 A DC Remote: Wireless 25 m / wired 3 m Rope: 11 mm × 24 m black synthetic Waterproof rating: IP68 motor and gearbox Product size: 563 × 194 × 185 mm Weight: 27 kg Estimated packed size: 610 × 280 × 260 mm Freight: $35 flat domestic freight

Limited lifetime warranty, with a 5-year warranty on electrical components. Manufacturer terms, exclusions and claim requirements apply.
