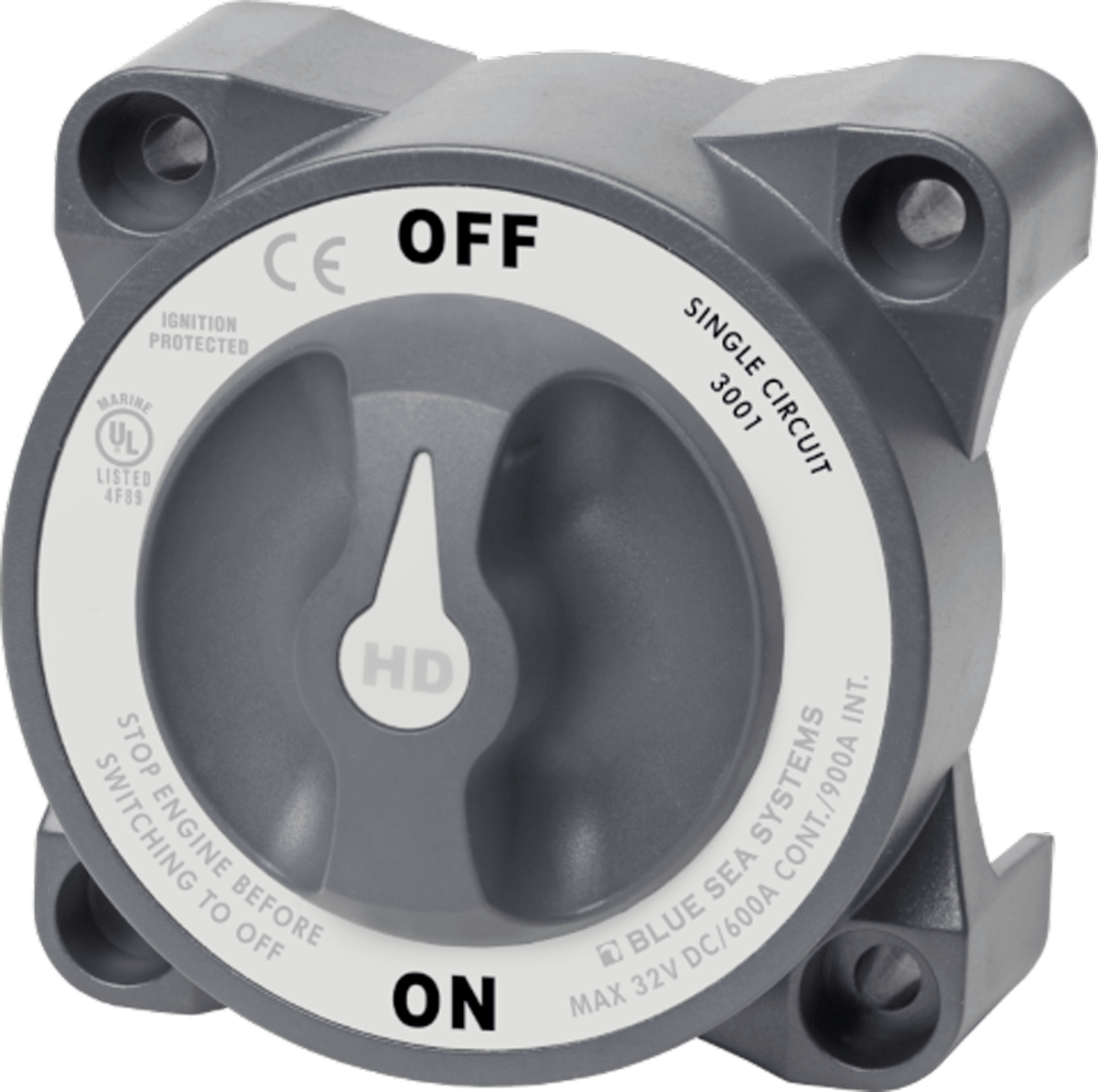

HD-Series Heavy Duty On-Off Battery Switch with AFD BS-3001

HD-Series Heavy Duty On-Off Battery Switch with AFD BS-3001

BS-3001

$181.00 AUD
$181.00 AUD
Sale Sold out

Features

HD-Series Heavy Duty On-Off Battery Switch with AFD

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables

Specifications

HD-Series Heavy Duty On-Off Battery Switch with AFD
Switch Type Single Circuit ON-OFF
Color Grey
Switch Positions 2
Battery Combine No
Alternator Field Disconnect Yes
Maximum Voltage 32V DC
Terminal Stud Torque 220 in-lb (24.86 Nm)
Continuous Rating 600A
Intermittent Rating 900A (5 min)
Cranking Rating 10 Sec 2750A
Cranking Rating 1 min 1325A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Quantity to Meet Ratings Two Cables
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4″ (M6) Screw
Terminal Stud Size 1/2″ – 16 (M12)
Weight 0.59 kg
