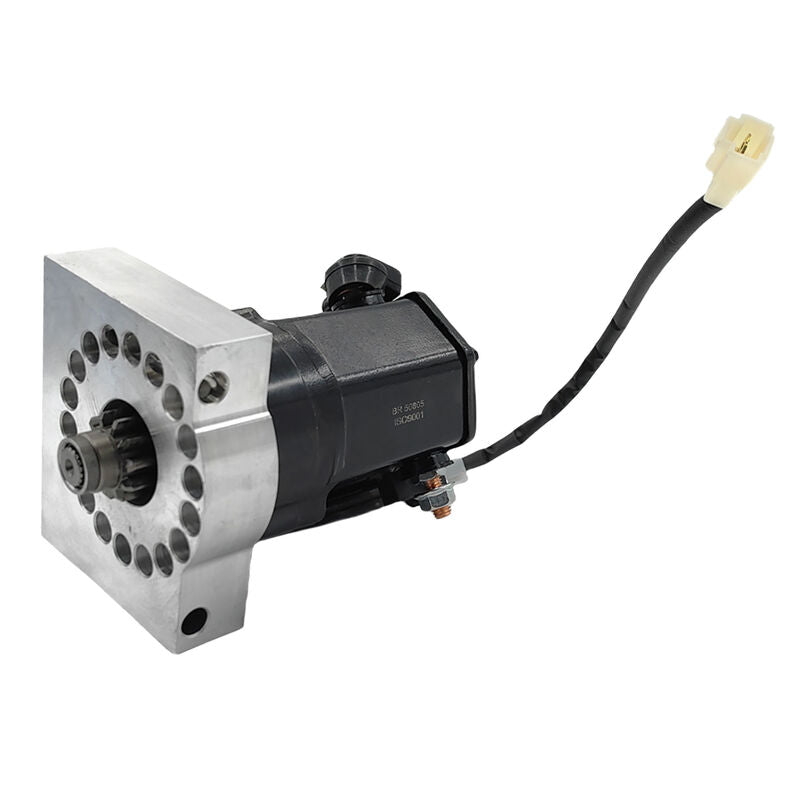

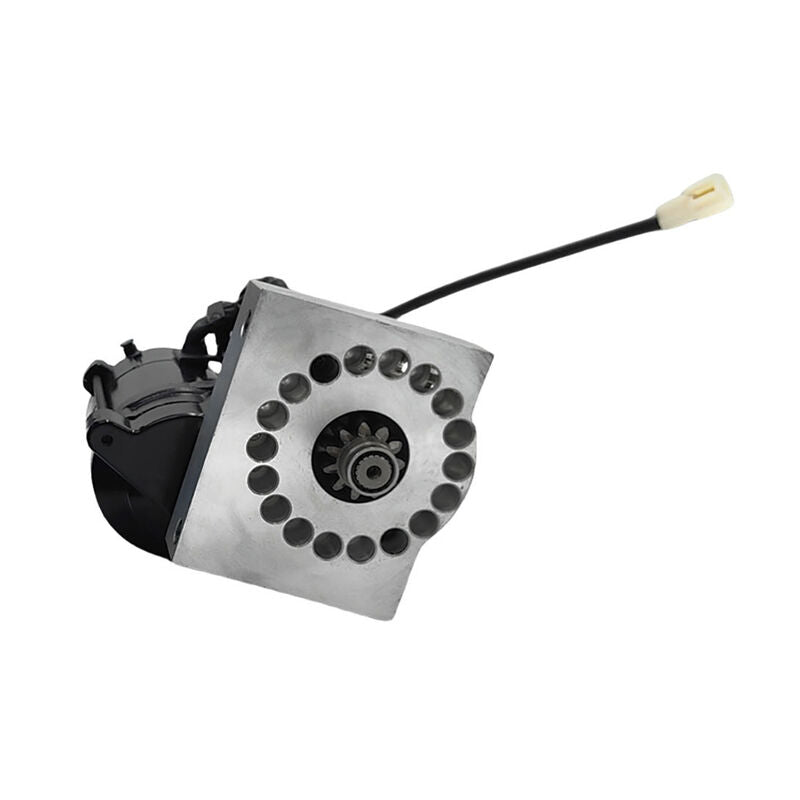

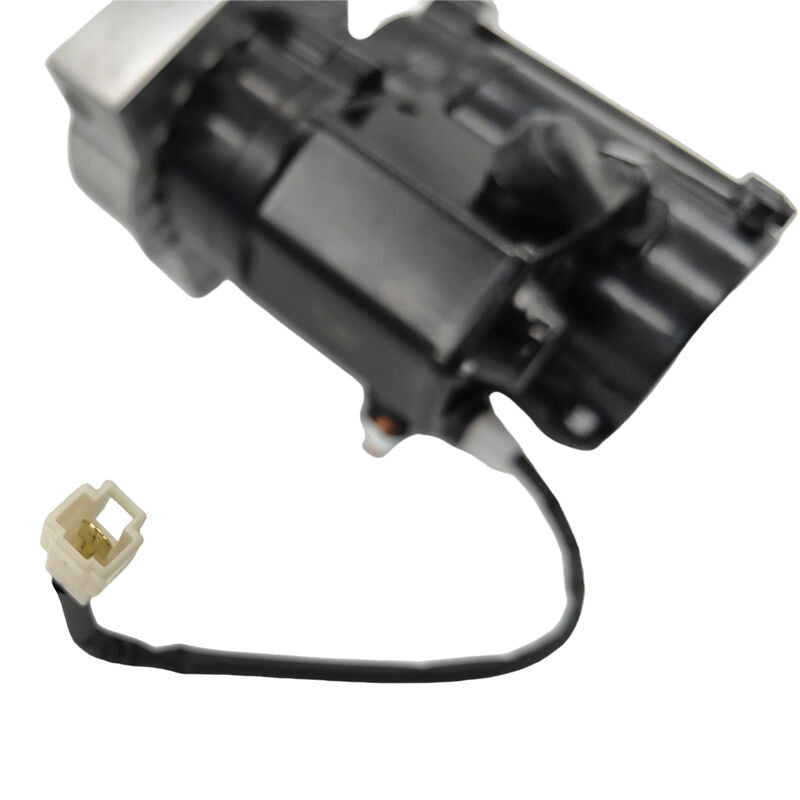

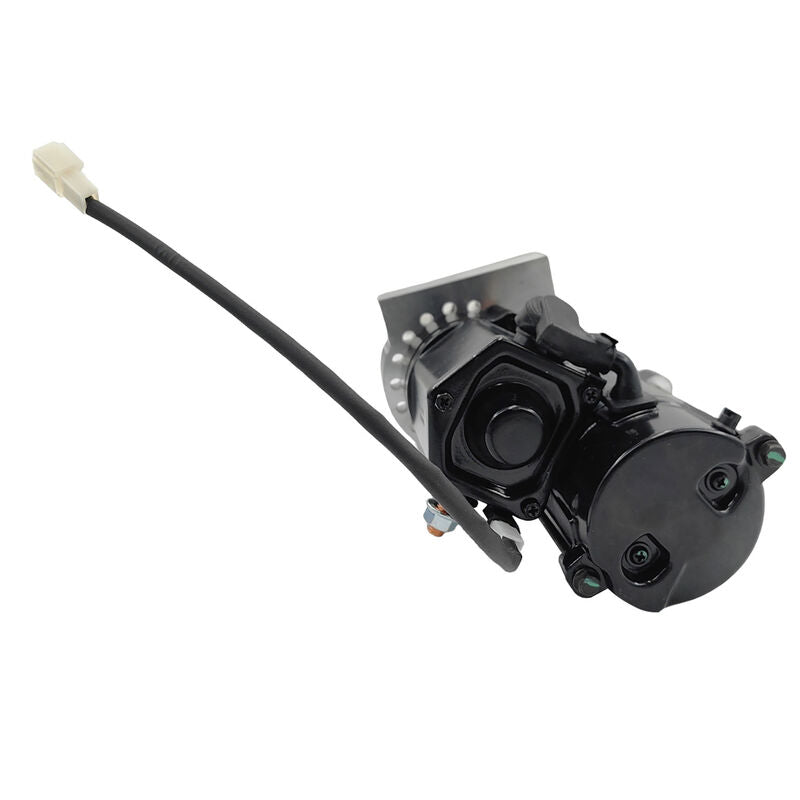

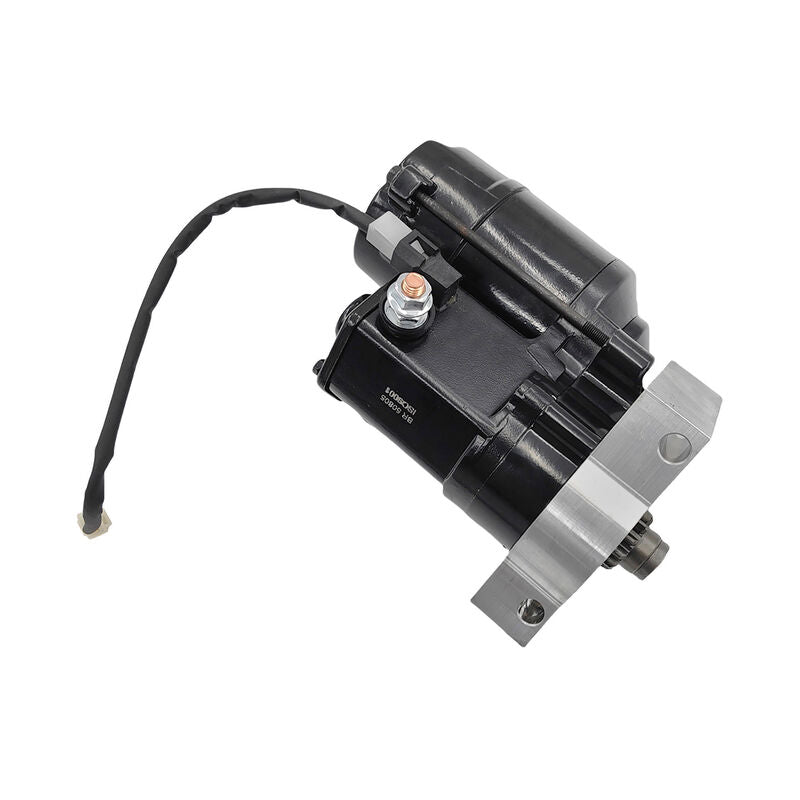

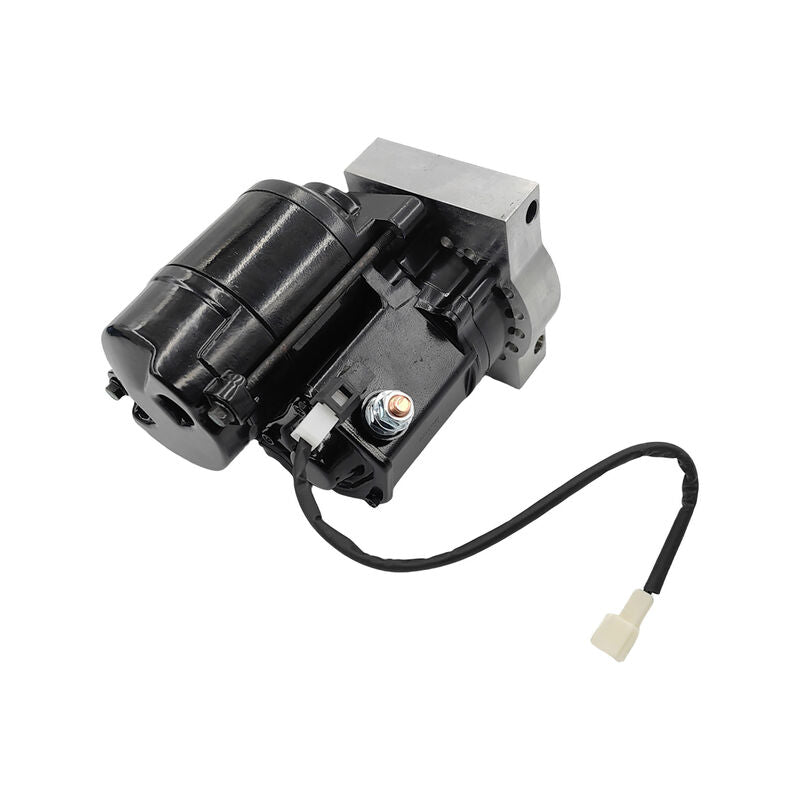

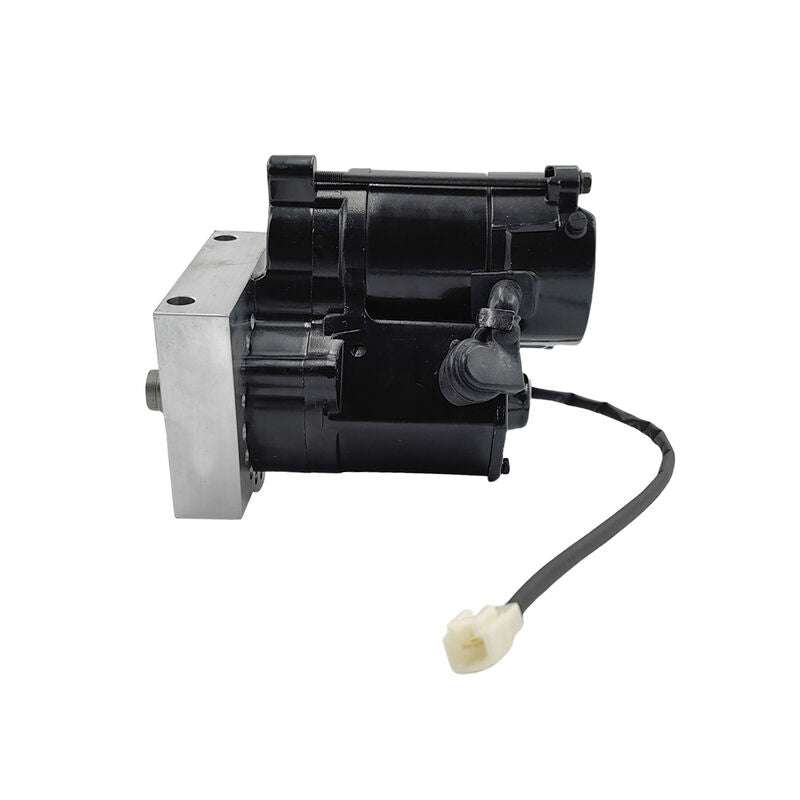

High Torque Starter Motor Fit For Holden HT HG HQ HJ HX HZ WB Torana LH LX Commodore VB VC VH VK VL VN VP VR 253 304 308 V8 Engines Auto Manual

High Torque Starter Motor Fit For Holden HT HG HQ HJ HX HZ WB Torana LH LX Commodore VB VC VH VK VL VN VP VR 253 304 308 V8 Engines Auto Manual

SMOTOR-HLN029

$260.10 AUD
$289.00 AUD $260.10 AUD
Sale Sold out

Product Overview

High Torque Starter Motor Fit For Holden HT HG HQ HJ HX HZ WB Torana LH LX Commodore VB VC VH VK VL VN VP VR 253 304 308 V8 Engines Auto Manual

Specifications

Replace Part Number AF4250-5308
Starter Style Mini
Denso Style Starter Finish Powder Coated Black For Extra Corrosion Protection High Heat
Resistance To Help Eliminate Hot Start Problems 4.44 1
Gear Reduction For Maximum Torque Starter Rotation Standard CNC Machined Adjustable Mounting Block For Maximum Clearance Power Point In Between Block And Starter, Instead Of Between Starter And Headers As Many Other Brands Do, To Allow For Tight Clearances, And Heat Protection To Wiring Heavy Duty Bearing Holds Drive Assembly For Long Life And Accurate Pinion Alignment
Maximum Recommended Compression Ratio Is A Huge 14 1
Voltage 12
Volts Power Rating 1.9
HP / 1.4 KW Pinion Tooth Count 11
Pinion Diameter Approximately 29mm
Mounting Holes Centre To Centre 83mm
Overall Length 189mm
Overall Height 135mm
Overall Width 139mm

Important Notes

Please Check With Pictures / Numbers / Specs Before Ordering

Vehicle Fitment

  • Fit For Holden 253, 304, 308 V8 Engines
  • Fit For Holden HT HG HQ HJ HX HZ WB Auto & Manual Transmission
  • Fit For Holden Torana LH LX Auto & Manual Transmission
  • Fit For Holden Commodore VB VC VH VK VL VN VP VR Auto & Manual Transmission Note:Will Not
  • Fit For Holden Commodore VS.

What’s Included

1 x Starter Motor

Package Details

  • Package size (L × W × H): 28 × 19 × 15 cm
  • Packaged weight: 4.35 kg
  • Shipping volume: 0.00798 m³
