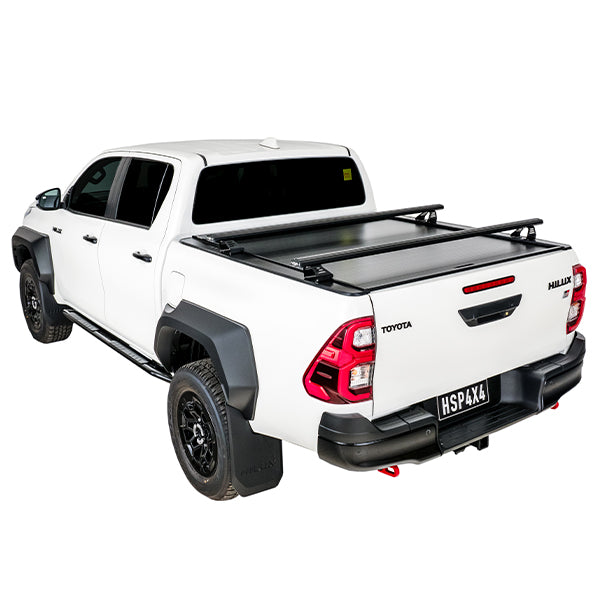

  • White Toyota Hilux SR5 with HSP roller cover closed and load bars fitted rear three-quarter view

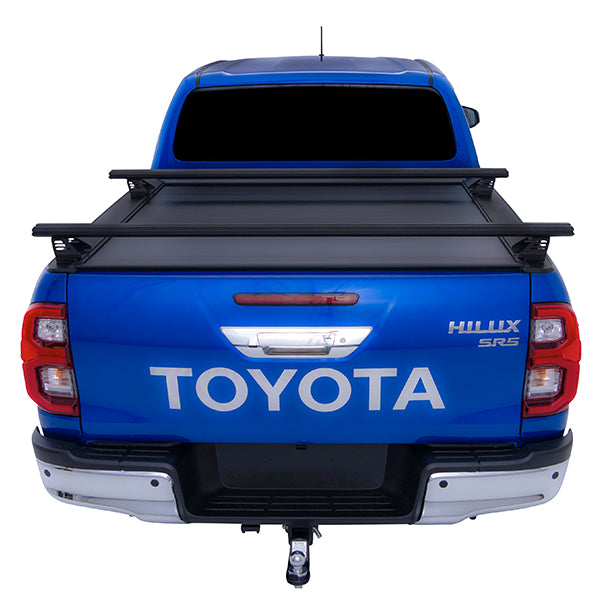

  • Blue Toyota Hilux SR5 with HSP roller cover closed and load bars fitted straight rear view
1 5

HSP

HSP Load Bar (2 Bars) Suits Roll R Cover S3.5 on a Hilux Revo 2015+ Sr, Sr5 + GR

HSP Load Bar (2 Bars) Suits Roll R Cover S3.5 on a Hilux Revo 2015+ Sr, Sr5 + GR

LB80-H

$550.00 AUD
$550.00 AUD
Sale Sold out

The Load Bar is a purpose-built full metal frame roll top rack, specifically designed to suit the HSP Roll R Cover Series 3 and above. The Toyota Hilux Load Bar Kit suits the Hilux SR, SR5 & GR and has a custom cross bar length to ensure a perfect fit for your vehicle. Only suits Toyota Hilux Roller Covers. Can also suit Hilux SR Roller Covers.

Features

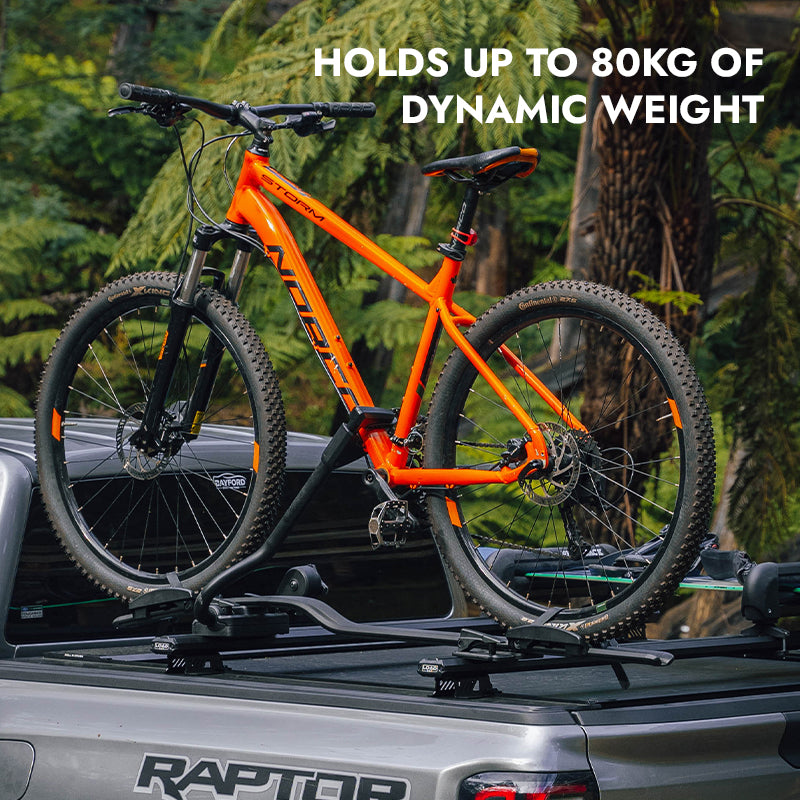

  • No Sports Bars or A-Frame Sports Bars variant can support up to 80Kg of dynamic load & 200kg static (Evenly Distributed Weight)
  • Extended Sports Bars or Armour Bar variant can support up to 40Kg of dynamic load (Evenly Distributed Weight)
  • 1594.4mm crossbar width
  • Aluminium construction with a matte black finish
  • Full metal frame legs
  • Effortless installation, simply slides into the HSP Roll R Cover channels and is adjustable to suit your requirements.
  • Universal top and bottom accessory channels to easily add accessories from brands including Rhino-Rack, Thule & Yakima
  • Maximum compatible channel nut size: 21.9mm wide and 7mm thick
  • Proudly Australian: 100% designed, made & sourced in Australia
  • The world’s first roll top specific crossbar to suit the HSP Roll R Cover with advanced weight distribution technology

Compatibility

This Load Bar kit is compatible with the below Roll R Cover models:

LB80-H:

  • Toyota Hilux SR 2015+ (HJ4RS3.5) J-Deck
  • Toyota Hilux SR5 + GR (H4RS3.5) A-Deck
  • Toyota Hilux SR5 with sports bar (H42RS3.5)

2410-LB2-RC:

  • To Suit Armour Bar – Hilux SR/ SR5 /GR (H4RS3.5-AB)

NOTE: This kit also suits a range of other vehicles which is outlined in the technical specifications tab.

Specifications

This Load Bar Kit suits all of the below makes and models:

  • LB80-DM: Isuzu D-Max Gen 3 MY2021+
  • LB80-MBT: Mazda Bt50 TF- 2020+
  • LB80-C: Holden Colorado RG MY 2012+
  • LB80-X: Isuzu D-Max Gen 2 MY2012-2020MY19
  • LB80-H: Toyota Hilux REVO 2015+ J-Deck (SR)
  • LB80-RT: Ram 1500 and 2500 MY 2018+, MY 2021+, MY 2024+
  • LB80-F: F150 5.5″ TUB MY 2015+ & MY 2021+, F150 6.5″ TUB MY 2023+
  • LB80-CS: Chevrolet Silverado T1 – MY 2020+, MY 2021+
  • LB80-T: Mitsubishi Triton MV 2024+
  • LB80-TUN: Toyota Tundra 2024+
  • LB80-SYL: SsangYong Musso Long Bed and Short Bed 2024+
  • LB80-A: Volkswagen Amarok 2H-2011+

Warranty

Load Bar Kits to suit Hilux SR/ SR5/ GR 2015+ are Australian Made and have a 2 year warranty.
