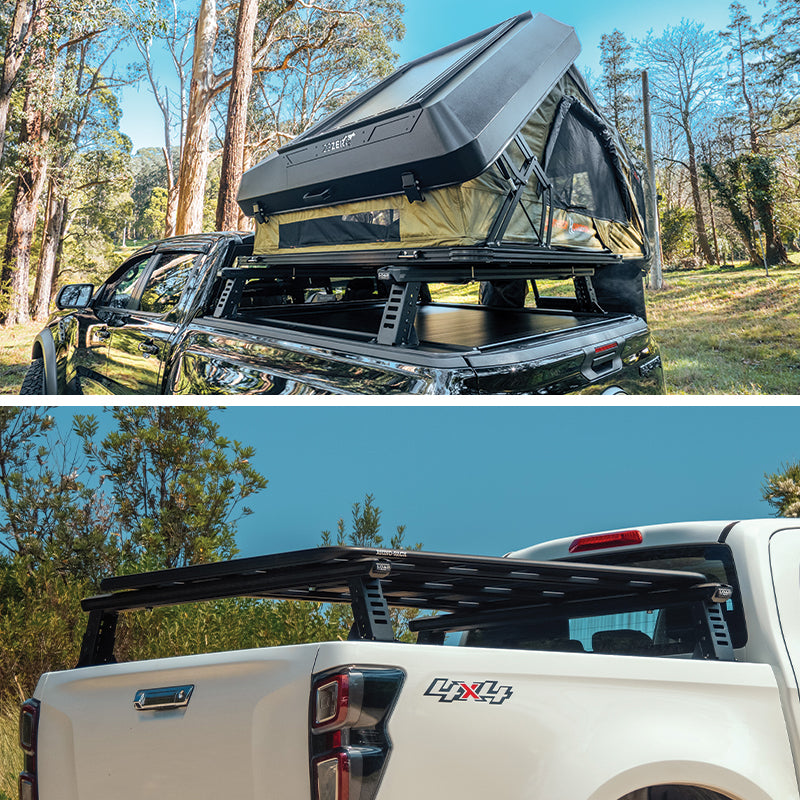

This Ford Ranger PX Tub Rack is only Direct to Tub. The HSP Load Rack JNR is a fully adjustable Ford Ranger Tub Rack designed to meet your specific needs, offering industry-leading support! Perfect for rooftop tents and platforms, it seamlessly accommodates a wide range of accessories from popular brands like Rhino Rack, Yakima, Front Runner, Thule, and more, ensuring versatility and compatibility for your adventures. See all Ford Ranger accessories today!

Features

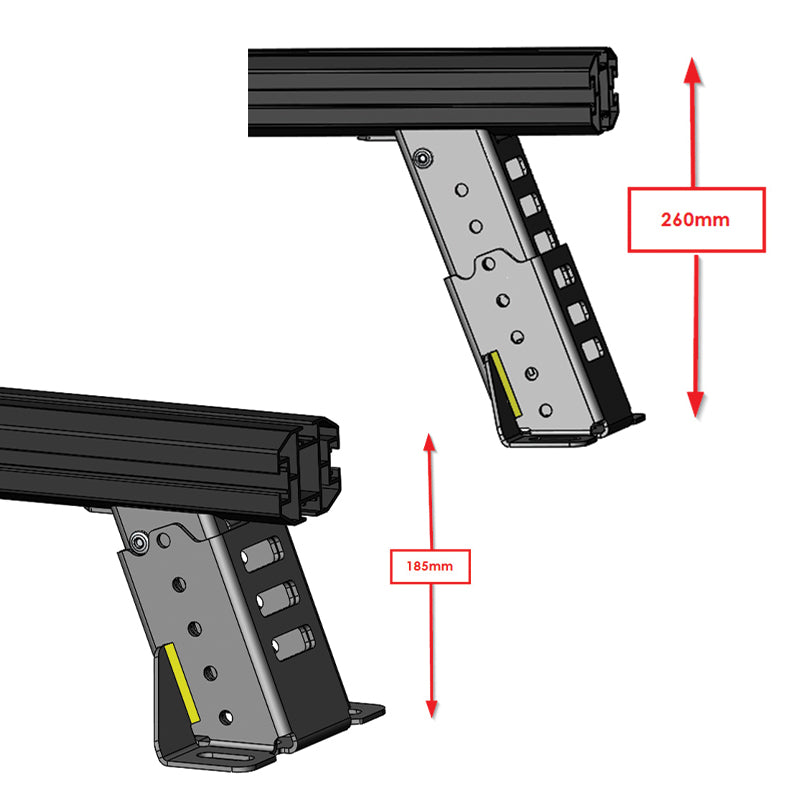

• Fully adjustable from 185mm – 260mm
• NOTE: Due to the weak tub of this ute, you can only hold 60kg of Dynamic Weight Capacity.
• Can be mounted directly on tub (not Roll R Cover compatible)
• Integrated 8 universal smart channels – suits leading accessories brands like Rhino Rack, Thule and Yakima
• Maximum compatible channel nut size: 21.9mm wide and 7mm thick
• Constructed from light weight alloy with a powder coated finish and steel legs
• Decreases GVM compared to traditional tub racks
• Proudly Australian: 100% designed & made & sourced in Australia

Compatibility

This Load Rack JNR Kit also suits the below makes and models for NAKED TUB ONLY:

• Toyota Hilux: Revo 2015+ SR, SR5, GR & Rugged X
• Nissan Navara: NP300 D23-2021+
• Isuzu D-Max: Gen 3 MY2021+
• Mazda BT50: TF 2020+
• GWM Haval Cannon: NPW-2020+
• LDV T-60: SK80C-2018+
• Mitsubishi Triton: MV 2024+ (Naked Tub Only)
• Isuzu D-Max: Gen 2 MY2012-2020MY19 (Naked Tub Only)
• Nissan Navara: NP300 2015-2020 (Naked Tub Only)
• Mazda BT50: UP + UR 2013-2020 (Naked Tub Only)
• Ford PX Ranger: 2011-2022 (Naked Tub Only)

Fitting

Please note the HSP Load Rack JNR is fully adjustable to suit your needs, ensuring low fitting times and is DIY friendly.

Warranty

Warranties are very low on HSP products so you can rest assured knowing that you have a quality product. However, in the instance something does go wrong we have some reassurances that if anything goes wrong, we have you covered.

• 2-year warranty on the unit (don’t forget to register it on the HSP website (hsputelids.com))
• Minimal moving parts make replacing any items simple
• Australian manufactured item meaning parts are readily available
• Australian based customer service team

Although the Load Rack Pro is rated at 150Kg dynamic weight, this vehicle tub is unable to handle this. HSP is not liable to tub related issues.

Specifications

• Suits for which Vehicles: Manufacturer Ford
  Make Ranger PX mk1, mk2, mk3
  Model XL, XLS, XLT, SPORT, FX4, WILDTRAK, Raptor
  Year 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, mid-2022
  Variant Dual Cab Only
• Height Adjustable Range 185mm – 260mm
• Complete Kit Has 36 Tie Down Points:
  • 5 tie down points on each leg
  • 4 universal channels on each top bar
• Weight Capacity:
  • Complete Kit: 150Kg Dynamic / 300Kg Static
• What is the material & manufacturing process for the Load Rack JNR?

  Inner Leg

  • Materials Used: 3mm Bluescope GALVABOND steel (Australian-made)
  • Manufacturing Processes: Fibre optic laser cutting, CNC press brake folding, hardware insertion (Hemlock Structural Rivet), powder coating (Interpon Textura Black), and packaging.

  Outer Leg

  • Materials Used: 3mm Bluescope 250 Mpa Mild Steel (Australian-made)
  • Manufacturing Processes: Fibre optic laser cutting, CNC press brake folding, laser welding, zinc plating (outsourced to a local plating supplier), hardware insertion (Hemlock Structural Rivets), and powder coating (Interpon Textura Black).
