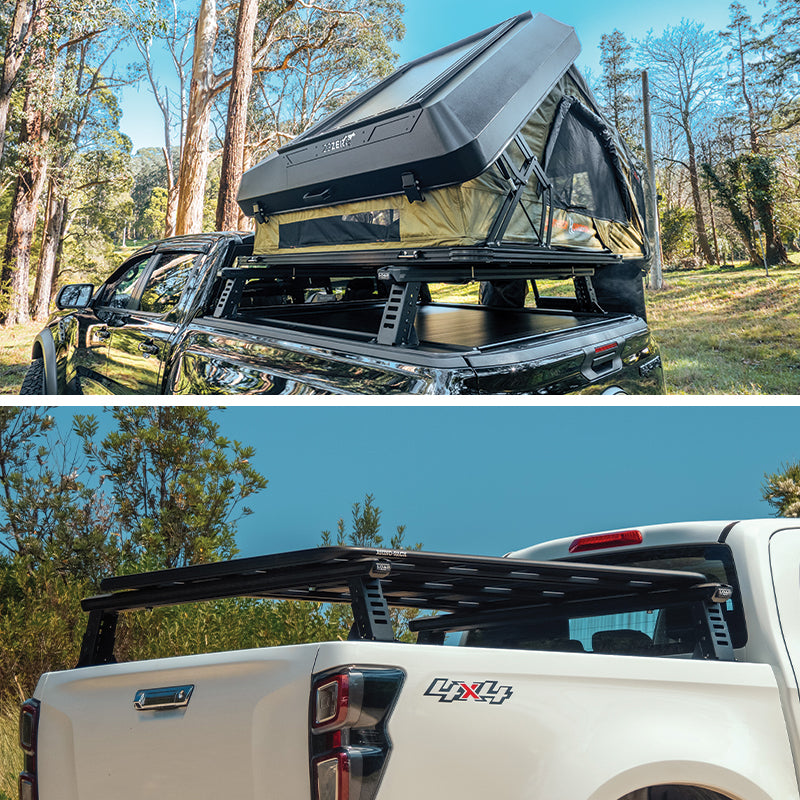

The HSP Load Rack JNR for the MG U9 is a fully adjustable MGU9 Tub Rack designed to meet your specific needs. Perfect for rooftop tents and platforms, it seamlessly accommodates a wide range of accessories from popular brands like Rhino Rack, Yakima, Front Runner, Thule, and more, ensuring versatility and compatibility for your adventures.

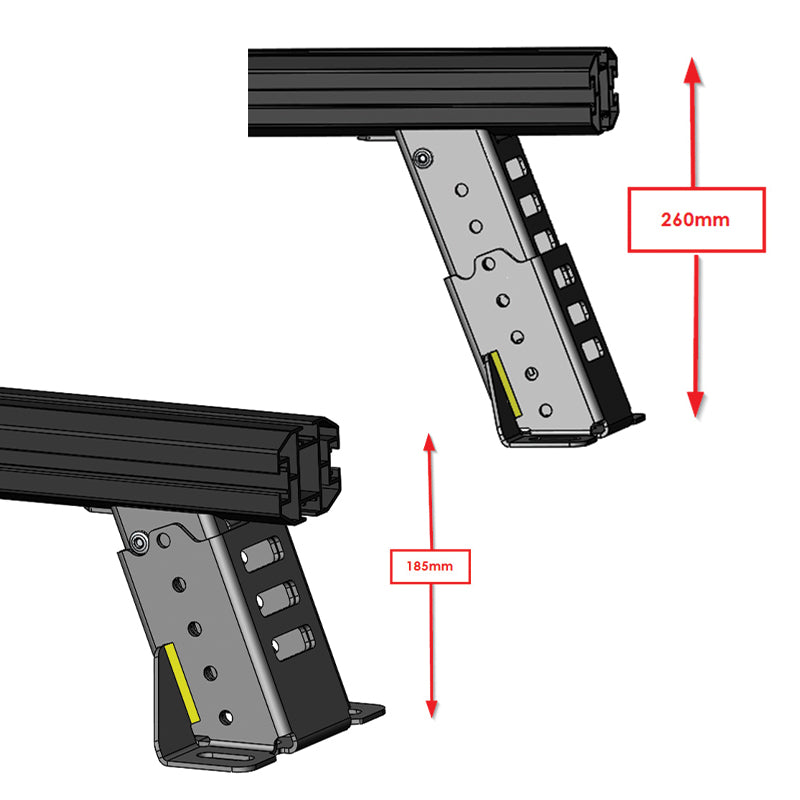

• Fully adjustable from 185mm – 260mm
• 150kg Static weight capacity (complete kit), 120kg Mild to Moderate vehicle vibration or 72kg Moderate to Heavy vibration (as a complete kit)
• Works seamlessly with Roll R Cover or can be mounted directly on tub
• Integrated 8 universal smart channels – suits leading accessories brands like Rhino Rack, Thule and Yakima
• Maximum compatible channel nut size: 21.9mm wide and 7mm thick
• Constructed from light weight alloy with a powder coated finish and steel legs
• Proudly Australian: 100% designed & made & sourced in Australia

Fitting

Please note the HSP Load Rack JNR is fully adjustable to suit your needs, ensuring low fitting times and is DIY friendly.

Warranty

Warranties are very low on HSP products so you can rest assured knowing that you have a quality product. However, in the instance something does go wrong we have some reassurances that if anything goes wrong, we have you covered.

• 2-year warranty on the unit (don’t forget to register it on the HSP website (hsputelids.com))
• Minimal moving parts make replacing any items simple
• Australian manufactured item meaning parts are readily available
• Australian based customer service team

Specifications

COMPATIBILITY:

• This Load Rack JNR is compatible with MGU9 & LDV Terron 9

IMPORTANT:

• 150kg Static weight capacity (complete kit), 120kg Mild to Moderate vehicle vibration or 72kg Moderate to Heavy vibration (as a complete kit)

SPECS:

• Height Adjustable Range 185mm – 260mm
• Complete Kit Has 36 Tie Down Points:
  • 5 tie down points on each leg
  • 4 universal channels on each top bar
• Weight Capacity:
  • Complete Kit: 150Kg Dynamic / 300Kg Static
• What is the material & manufacturing process for the Load Rack JNR?

  Inner Leg

  • Materials Used: 3mm Bluescope GALVABOND steel (Australian-made)
  • Manufacturing Processes: Fibre optic laser cutting, CNC press brake folding, hardware insertion (Hemlock Structural Rivet), powder coating (Interpon Textura Black), and packaging.

  Outer Leg

  • Materials Used: 3mm Bluescope 250 Mpa Mild Steel (Australian-made)
  • Manufacturing Processes: Fibre optic laser cutting, CNC press brake folding, laser welding, zinc plating (outsourced to a local plating supplier), hardware insertion (Hemlock Structural Rivets), and powder coating (Interpon Textura Black).
