The HSP Load Rack Pro is fully adjustable Ford Ranger PX Ladder Rack and represents the perfect blend of functionality and aesthetics. It is also available in single rear sets to suit your A-frame sports bars and unique vehicle set ups. The Load Rack provides a more stylized finish than traditional tubular racks, and is ready to accommodate a variety of accessories from your favourite brands like Rhino Rack, Yakima, Front Runner, Thule, and more.

NOTE: Due to the weak tub of the PX Ranger, this can only hold 60kg of Dynamic Weight Capacity.

Features

• Fully adjustable to suit your docking heights
• NOTE: Due to the weak tub of the PX Ranger, this can only hold 60kg of Dynamic Weight Capacity.
• ONLY available for direct to tub mounting

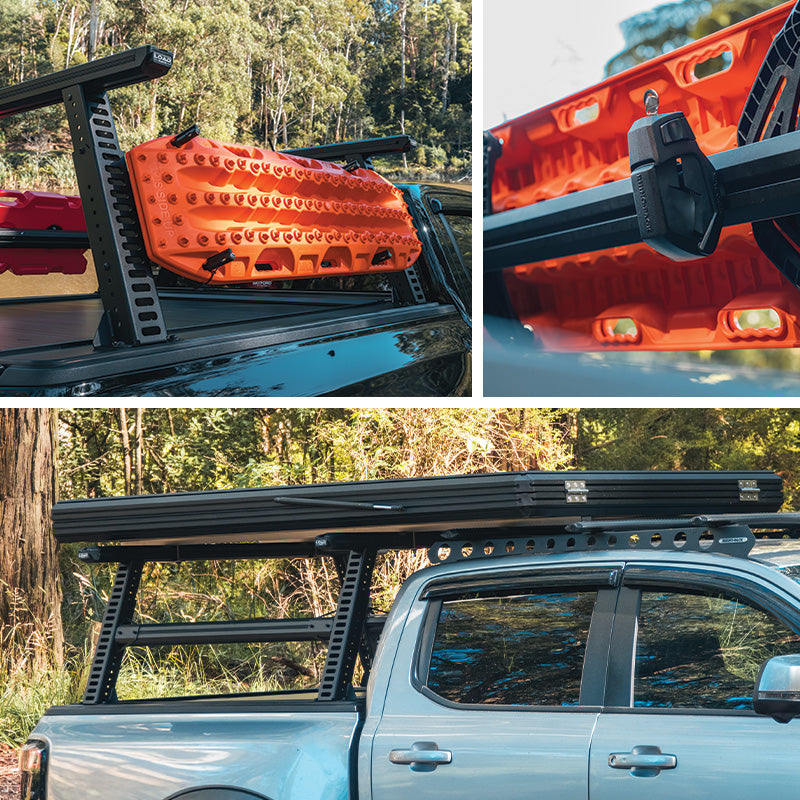

• Integrated 16 universal smart channels – suits leading accessories brands like Rhino Rack, Thule and Yakima
• Maximum compatible channel nut size: 21.9mm wide and 7mm thick
• Available as full kits or individual bars to suit different requirements

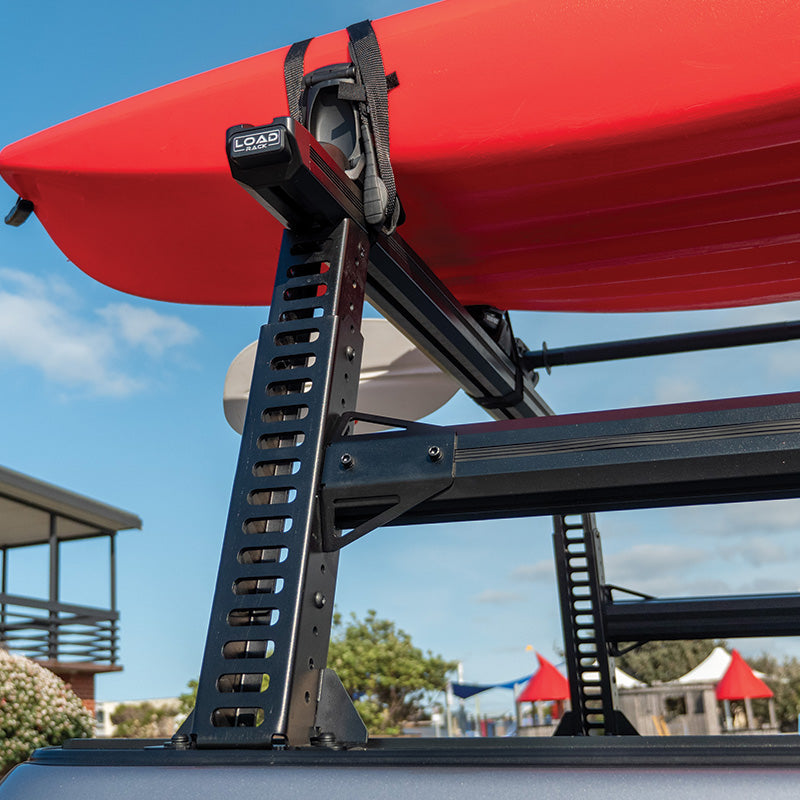

• Constructed from light weight alloy with a powder coated finish and steel legs
• Decreases GVM compared to traditional ladder racks
• Proudly Australian: 100% designed & made & sourced in Australia

Compatibility

This Load Rack Kit also suits the below makes and models:

• Toyota Hilux: Revo 2015+ SR, SR5, GR & Rugged X
• Nissan Navara: NP300 D23-2021+
• Isuzu D-Max: Gen 3 MY2021+
• Mazda BT50: TF 2020+
• GWM Haval Cannon: NPW-2020+
• LDV T-60: SK80C-2018+
• Mitsubishi Triton: MV 2024+ (Naked Tub Only)
• Isuzu D-Max: Gen 2 MY2012-2020MY19 (Naked Tub Only)
• Nissan Navara: NP300 2015-2020 (Naked Tub Only)
• Mazda BT50: UP + UR 2013-2020 (Naked Tub Only)

Fitting

Please note the HSP Load Rack Pro is fully adjustable to suit your needs, ensuring low fitting times and is DIY friendly.

• Rear Bar/ Leg
• Complete Load Rack Pro Set (including joiner bar)

NOTE: Due to the weak tub of the PX Ranger, this can only hold 60kg of Dynamic Weight Capacity.

Warranty

Warranties are very low on HSP products so you can rest assured knowing that you have a quality product. However, in the instance something does go wrong we have some reassurances that if anything goes wrong, we have you covered.

• 2-year warranty on the unit (don’t forget to register it on the HSP website (hsputelids.com))
• Minimal moving parts make replacing any items simple
• Australian manufactured item meaning parts are readily available
• Australian based customer service team

Although the Load Rack Pro is rated at 150Kg dynamic weight, this vehicle tub is unable to handle this. HSP is not liable to tub related issues.

Specifications

• Suits for which Vehicles:
  Manufacturer Ford
  Make Ranger PX mk1, mk2, mk3
  Model XL, XLS, XLT, SPORT, FX4
  Year 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, mid-2022
  DOES NOT Suit Wildtrak

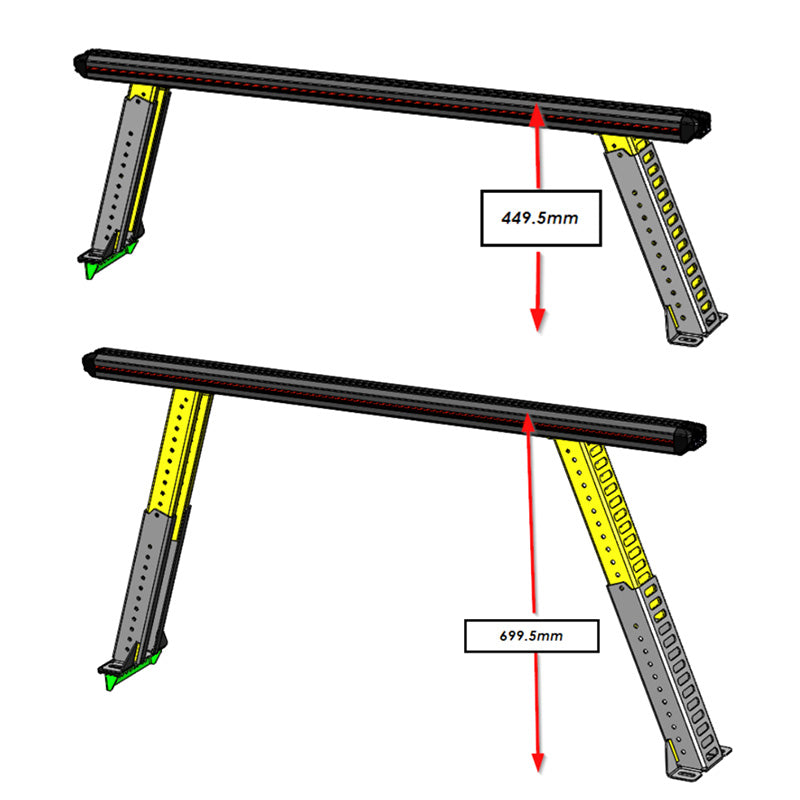

• Height Adjustable Range 450mm – 700mm
• Complete Kit Has 140 Tie Down Points:
  • 14 large points on each leg
  • 19 small points on each leg (both sides)
  • 4 on each joiner bar
• Single Leg Kit Has 72 Tie Down Points:
  • 14 Large points on each leg
  • 24 small points (12 each side of leg)
• Weight Capacity:
  • Single Legs: 60Kg Dynamic / 120Kg Static
  • Complete Kit: 60Kg Dynamic / 120Kg Static
