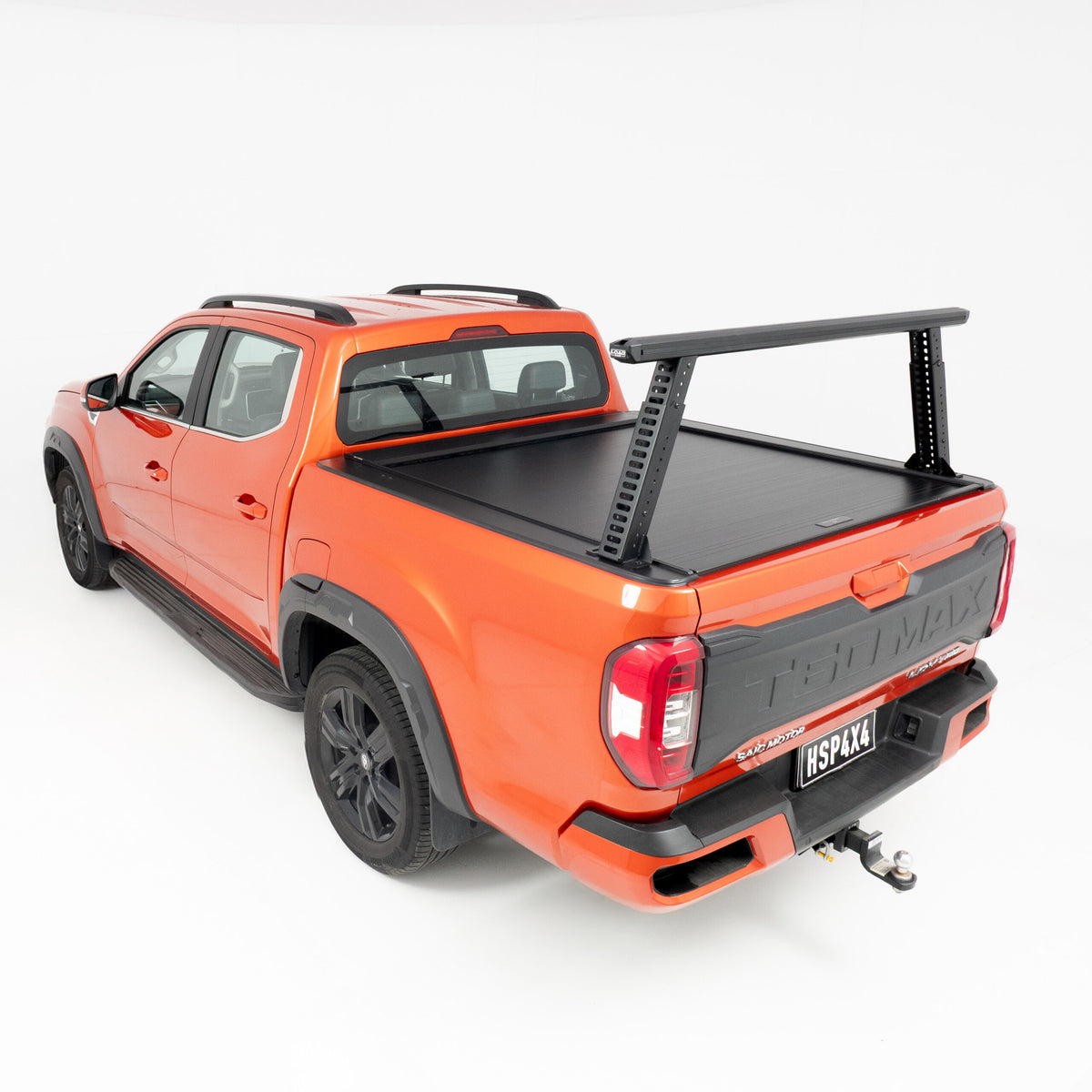

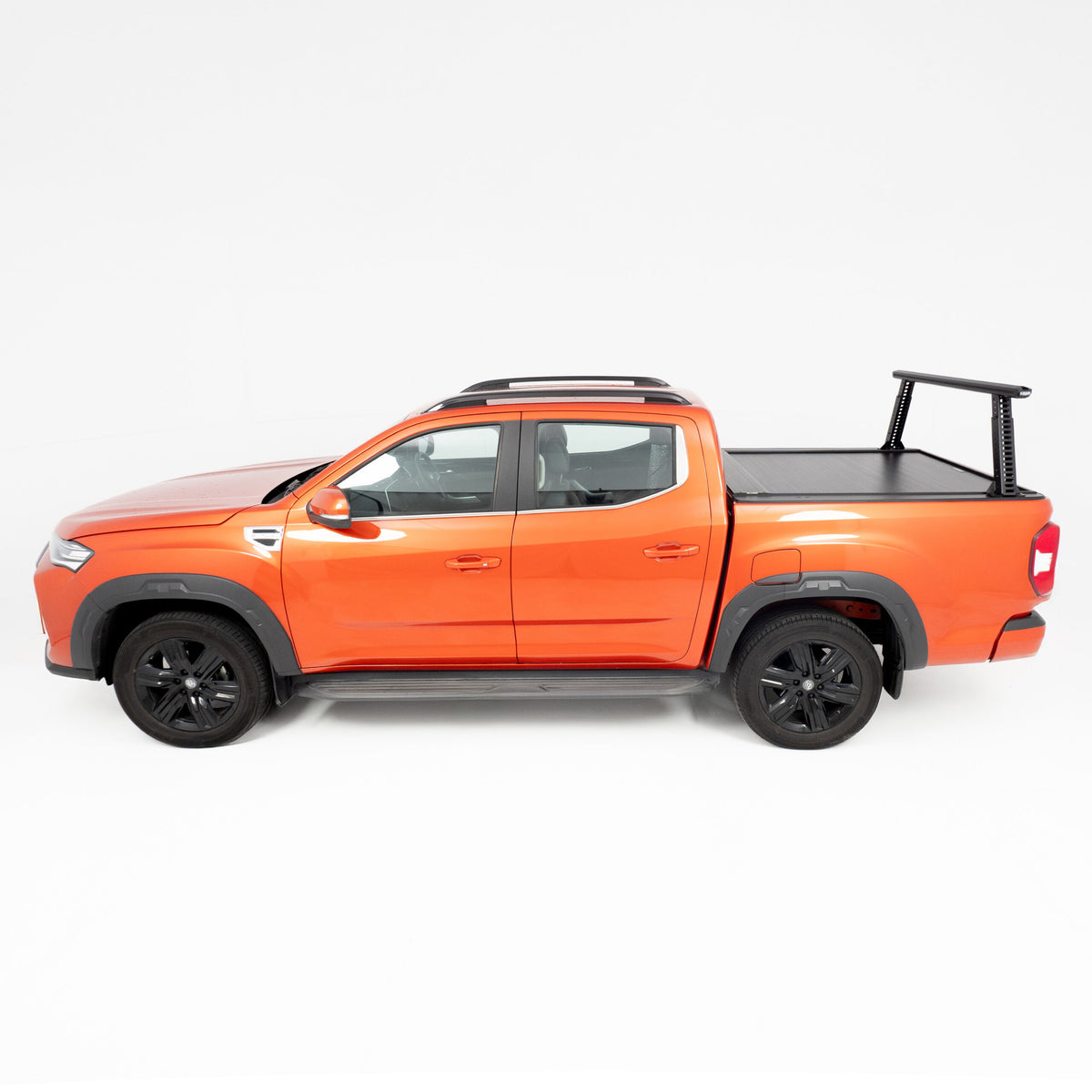

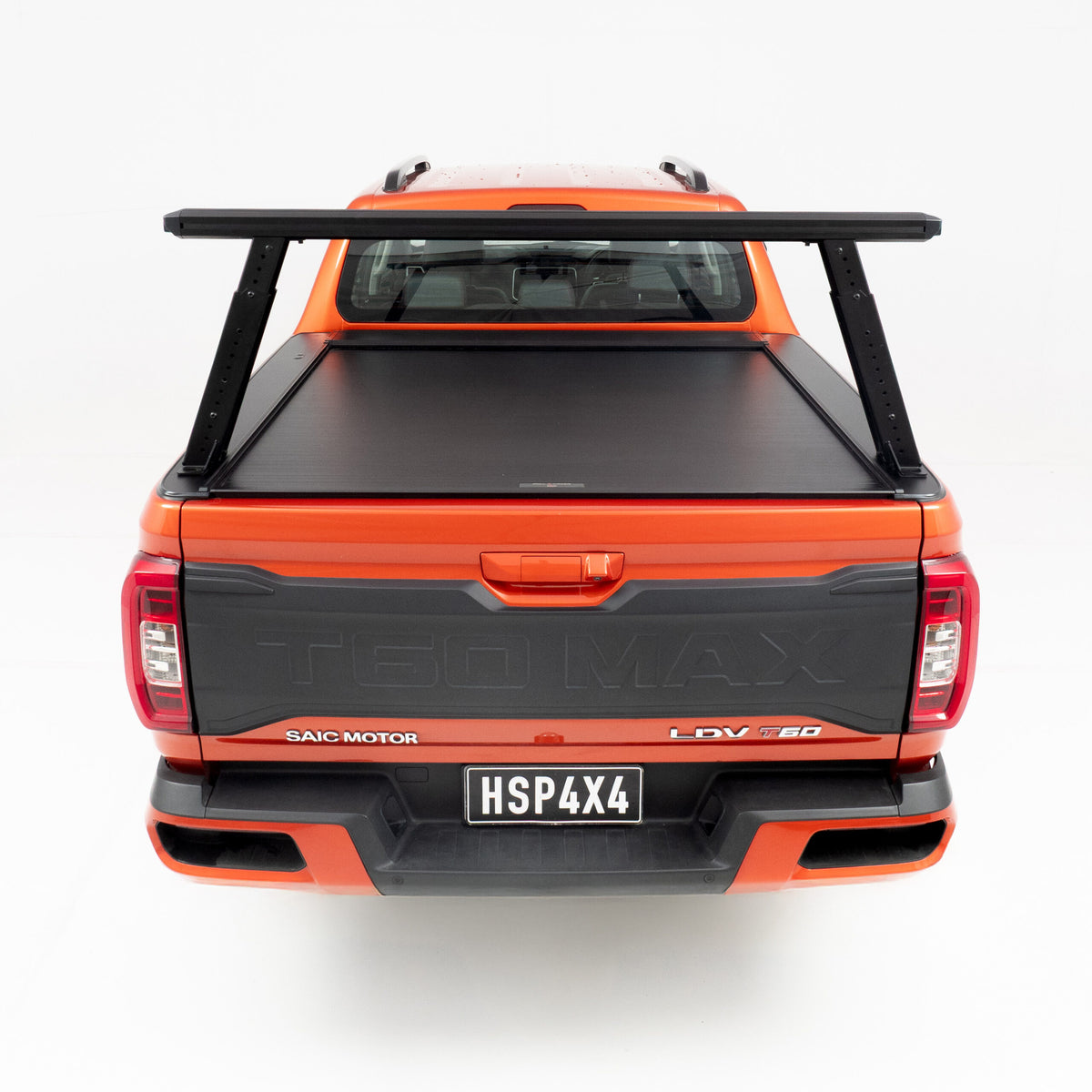

The HSP Load Rack Pro is fully adjustable LDV T60 Ladder Rack and represents the perfect blend of functionality and aesthetics. Designed for today’s worker and adventurer, the HSP LDV T60 rear ladder rack, can support an industry-leading weight of up to 60kg dynamic and 100Kg static. The Load Rack provides a more stylized finish than traditional tubular racks, and is ready to accommodate a variety of accessories from your favourite brands like Rhino Rack, Yakima, Front Runner, Thule, and more.

Features

• Fully adjustable to suit your docking heights
• 150Kg Dynamic weight capacity (For complete kit) (Evenly Distributed Weight)
• 300Kg Static weight capacity (For complete kit) (Evenly Distributed Weight)
• Works seamlessly with Roll R Cover or can be mounted directly on tub

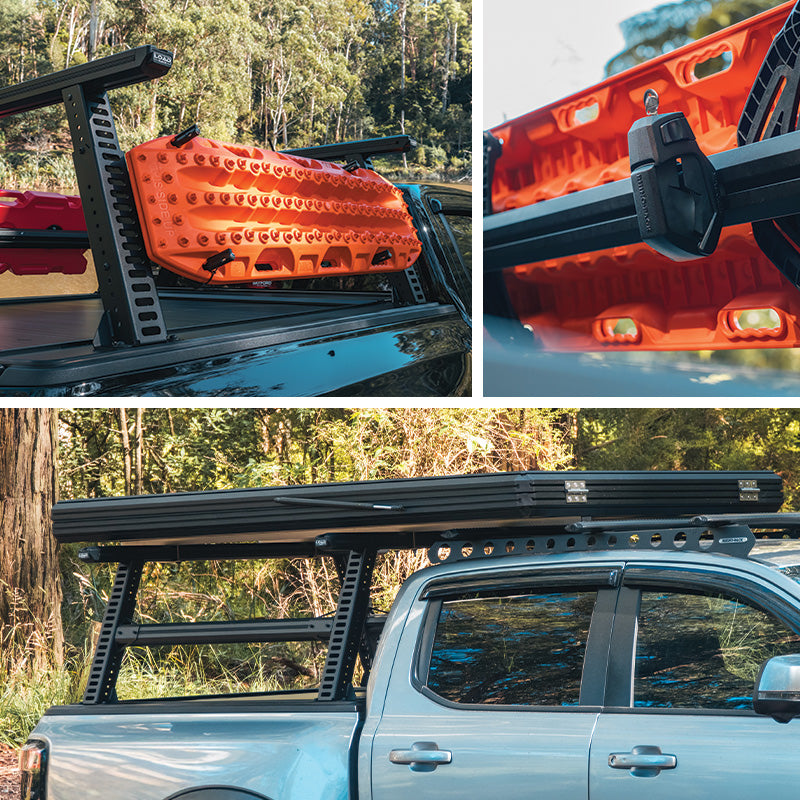

• Integrated 16 universal smart channels – suits leading accessories brands like Rhino Rack, Thule and Yakima
• Maximum compatible channel nut size: 21.9mm wide and 7mm thick
• Available as full kits or individual bars to suit different requirements

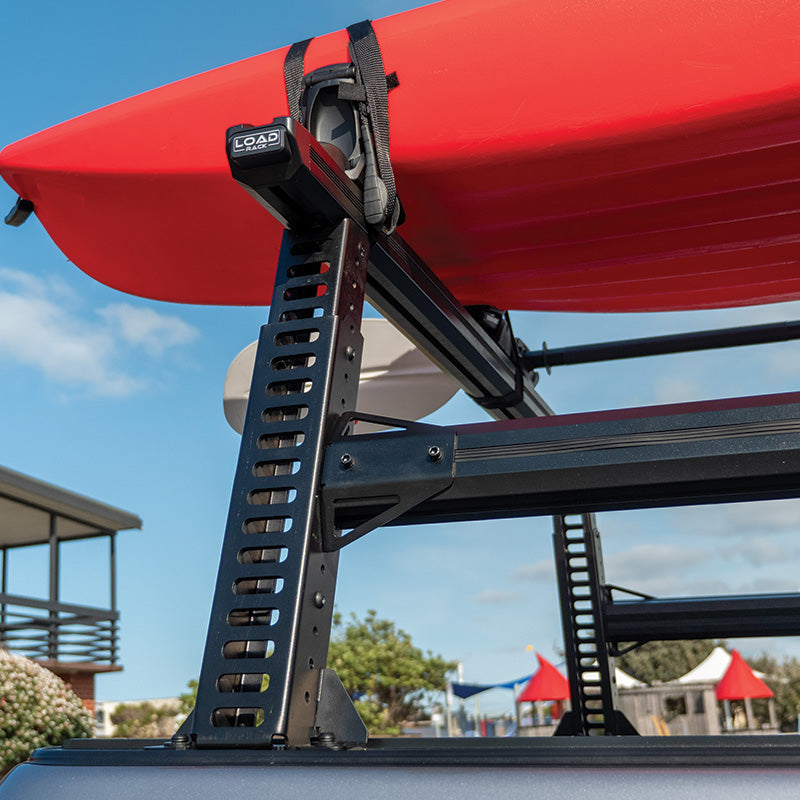

• Constructed from light weight alloy with a powder coated finish and steel legs
• Decreases GVM compared to traditional ladder racks
• Proudly Australian: 100% designed & made & sourced in Australia

Compatibility

This Load Rack Kit also suits the below makes and models:

• Toyota Hilux: Revo 2015+ SR, SR5, GR & Rugged X
• Nissan Navara: NP300 D23-2021+
• Isuzu D-Max: Gen 3 MY2021+
• Mazda BT50: TF 2020+
• GWM Haval Cannon: NPW-2020+
• LDV T-60: SK80C-2018+
• Mitsubishi Triton: MV 2024+ (Naked Tub Only)
• Isuzu D-Max: Gen 2 MY2012-2020MY19 (Naked Tub Only)
• Nissan Navara: NP300 2015-2020 (Naked Tub Only)
• Mazda BT50: UP + UR 2013-2020 (Naked Tub Only)

Fitting

Please note the HSP Load Rack Pro is fully adjustable to suit your needs, ensuring low fitting times and is DIY friendly.

• Rear Bar/ Leg
• Complete Load Rack Pro Set (including joiner bar)

Warranty

Warranties are very low on HSP products so you can rest assured knowing that you have a quality product. However, in the instance something does go wrong we have some reassurances that if anything goes wrong, we have you covered.

• 2-year warranty on the unit (don’t forget to register it on the HSP website (hsputelids.com))
• Minimal moving parts make replacing any items simple
• Australian manufactured item meaning parts are readily available
• Australian based customer service team

Specifications

• Suits for which Vehicles:
  Manufacturer LDV
  Make T60 Dual Cab
  Model MAX, LUXE, MAX-LUXE, PRO, MAX-PRO, TRAILRIDER
  Year 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
  (Does NOT suit Mega Tub)

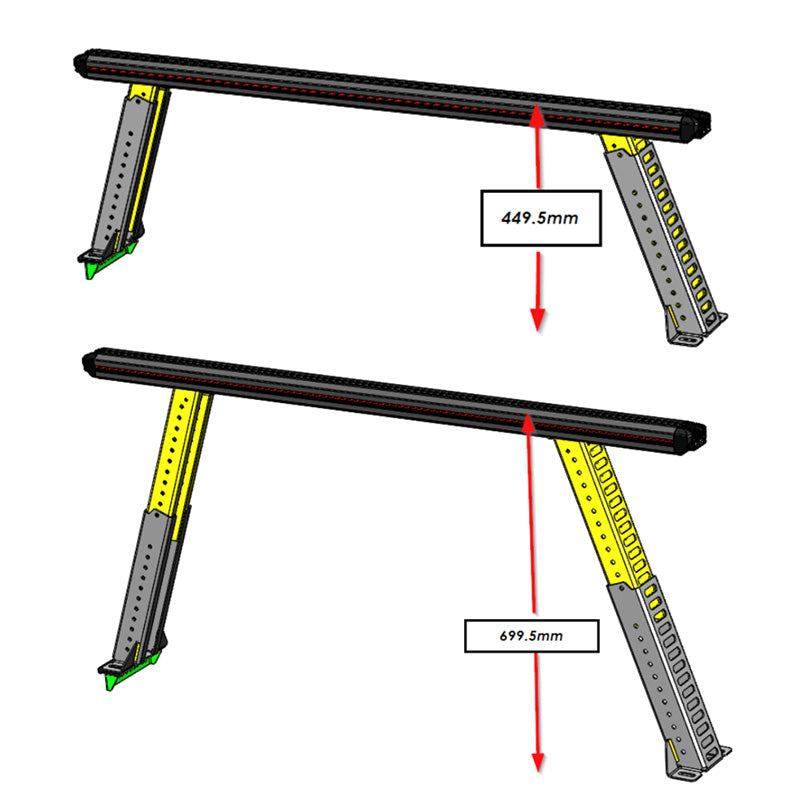

• Height Adjustable Range 450mm – 700mm
• Complete Kit Has 140 Tie Down Points:
  • 14 large points on each leg
  • 19 small points on each leg (both sides)
  • 4 on each joiner bar
• Single Leg Kit Has 72 Tie Down Points:
  • 14 Large points on each leg
  • 24 small points (12 each side of leg)
• Weight Capacity:
  • Single Legs: 60Kg Dynamic / 120Kg Static
  • Complete Kit: 150Kg Dynamic / 300Kg Static
