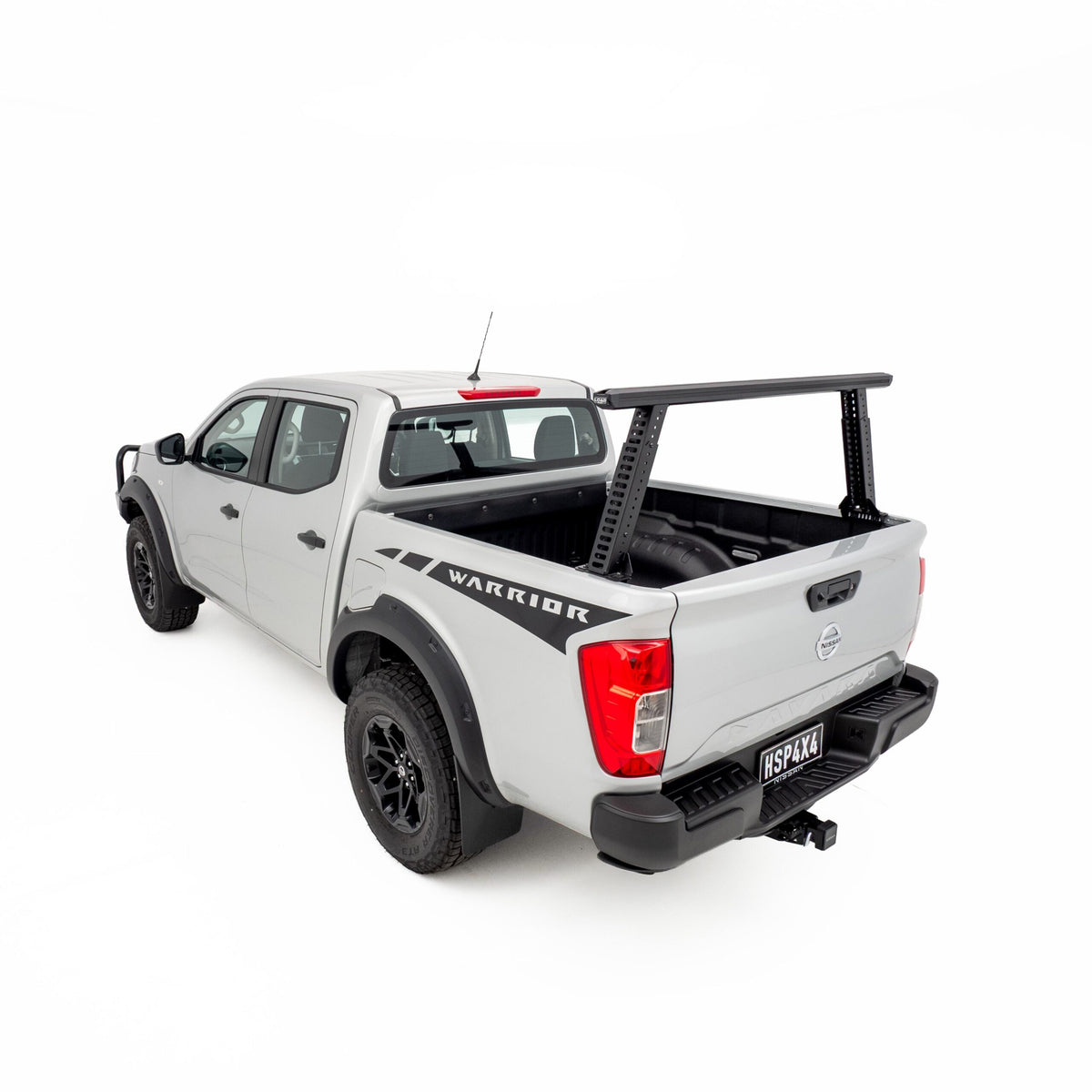

This Adjustable Rear Bar Load Rack Pro Kit is designed for today’s worker and adventurer and can support a dynamic weight capacity of up to 60kg. Compatible with the Nissan Navara NP300 2021+ naked tub and can suit your A-frame sports bars and unique vehicle set ups. Universal channels suit accessories from your favourite brands like Rhino Rack, Yakima, Front Runner, Thule, and more.

NOTE: The Load Rack Pro is available in a complete kit, rear bar or front bar to suit your needs.

Features

• Fully adjustable to suit your docking heights
• 150Kg Dynamic weight capacity (For complete kit) (Evenly Distributed Weight)
• 300Kg Static weight capacity (For complete kit) (Evenly Distributed Weight)
• Works seamlessly with Roll R Cover or can be mounted directly on tub

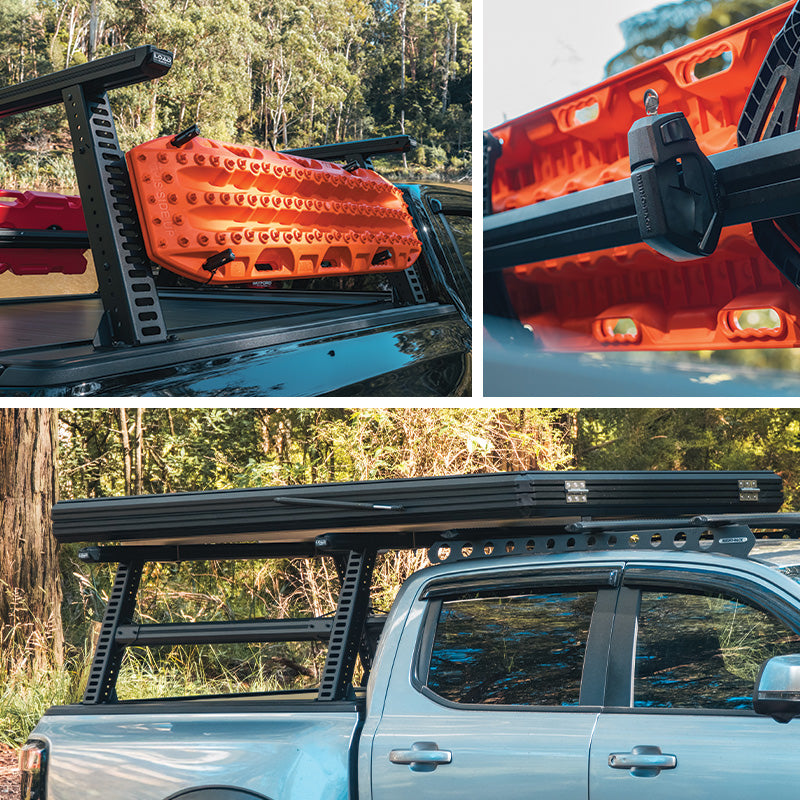

• Integrated 16 universal smart channels – suits leading accessories brands like Rhino Rack, Thule and Yakima
• Maximum compatible channel nut size: 21.9mm wide and 7mm thick
• Available as full kits or individual bars to suit different requirements

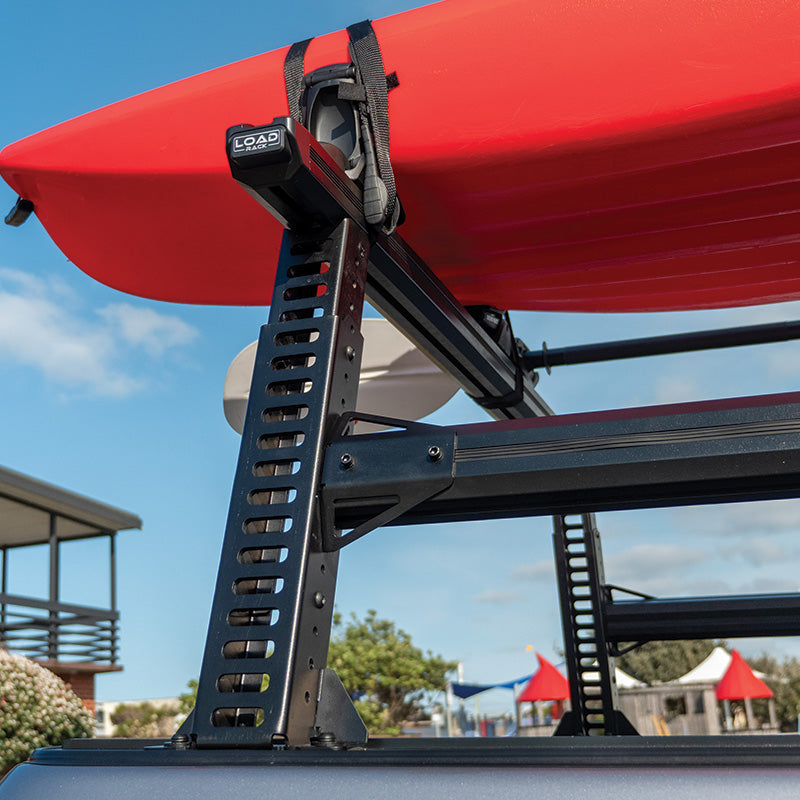

• Constructed from light weight alloy with a powder coated finish and steel legs
• Decreases GVM compared to traditional ladder racks
• Proudly Australian: 100% designed & made & sourced in Australia

Compatibility

This Load Rack Kit also suits the below makes and models:

• Toyota Hilux: Revo 2015+ SR, SR5, GR & Rugged X
• Nissan Navara: NP300 D23-2021+
• Isuzu D-Max: Gen 3 MY2021+
• Mazda BT50: TF 2020+
• GWM Haval Cannon: NPW-2020+
• LDV T-60: SK80C-2018+
• Mitsubishi Triton: MV 2024+ (Naked Tub Only)
• Isuzu D-Max: Gen 2 MY2012-2020MY19 (Naked Tub Only)
• Nissan Navara: NP300 2015-2020 (Naked Tub Only)
• Mazda BT50: UP + UR 2013-2020 (Naked Tub Only)

Fitting

Please note the HSP Load Rack Pro is fully adjustable to suit your needs, ensuring low fitting times and is DIY friendly.

• Rear Bar/ Leg
• Complete Load Rack Pro Set (including joiner bar)

Warranty

Warranties are very low on HSP products so you can rest assured knowing that you have a quality product. However, in the instance something does go wrong we have some reassurances that if anything goes wrong, we have you covered.

• 2-year warranty on the unit (don’t forget to register it on the HSP website (hsputelids.com))
• Minimal moving parts make replacing any items simple
• Australian manufactured item meaning parts are readily available
• Australian based customer service team

Specifications

• Suits:
  • Pro4X, ST, ST-X, SL, SL Warrior, Pro4X Warrior

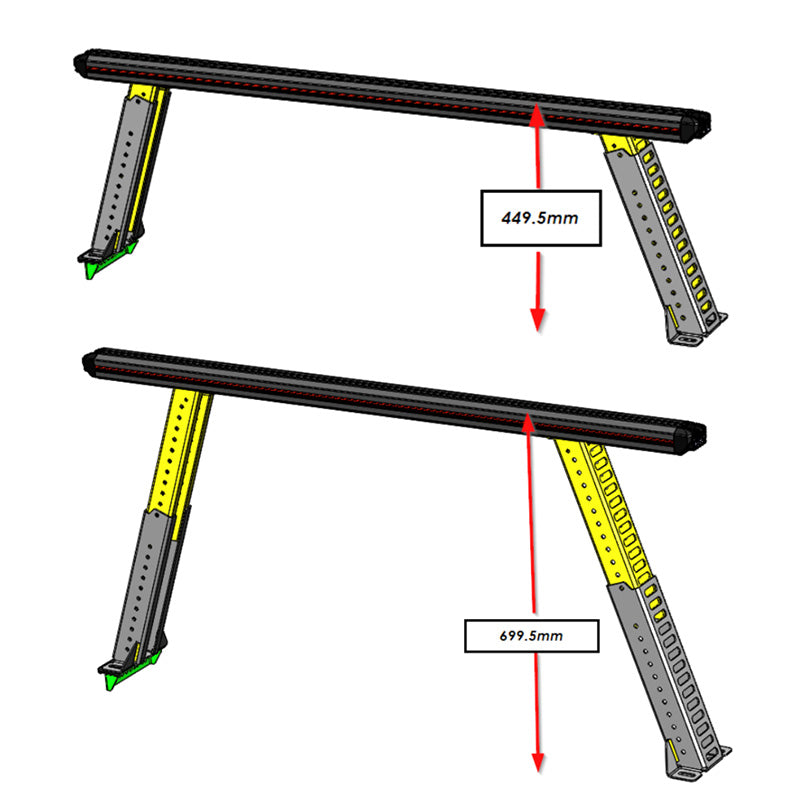

• Height Adjustable Range 450mm – 700mm
• Complete Kit Has 140 Tie Down Points:
  • 14 large points on each leg
  • 19 small points on each leg (both sides)
  • 4 on each joiner bar
• Single Leg Kit Has 72 Tie Down Points:
  • 14 Large points on each leg
  • 24 small points (12 each side of leg)
• Weight Capacity:
  • Single Legs: 60Kg Dynamic / 120Kg Static
  • Complete Kit: 150Kg Dynamic / 300Kg Static
