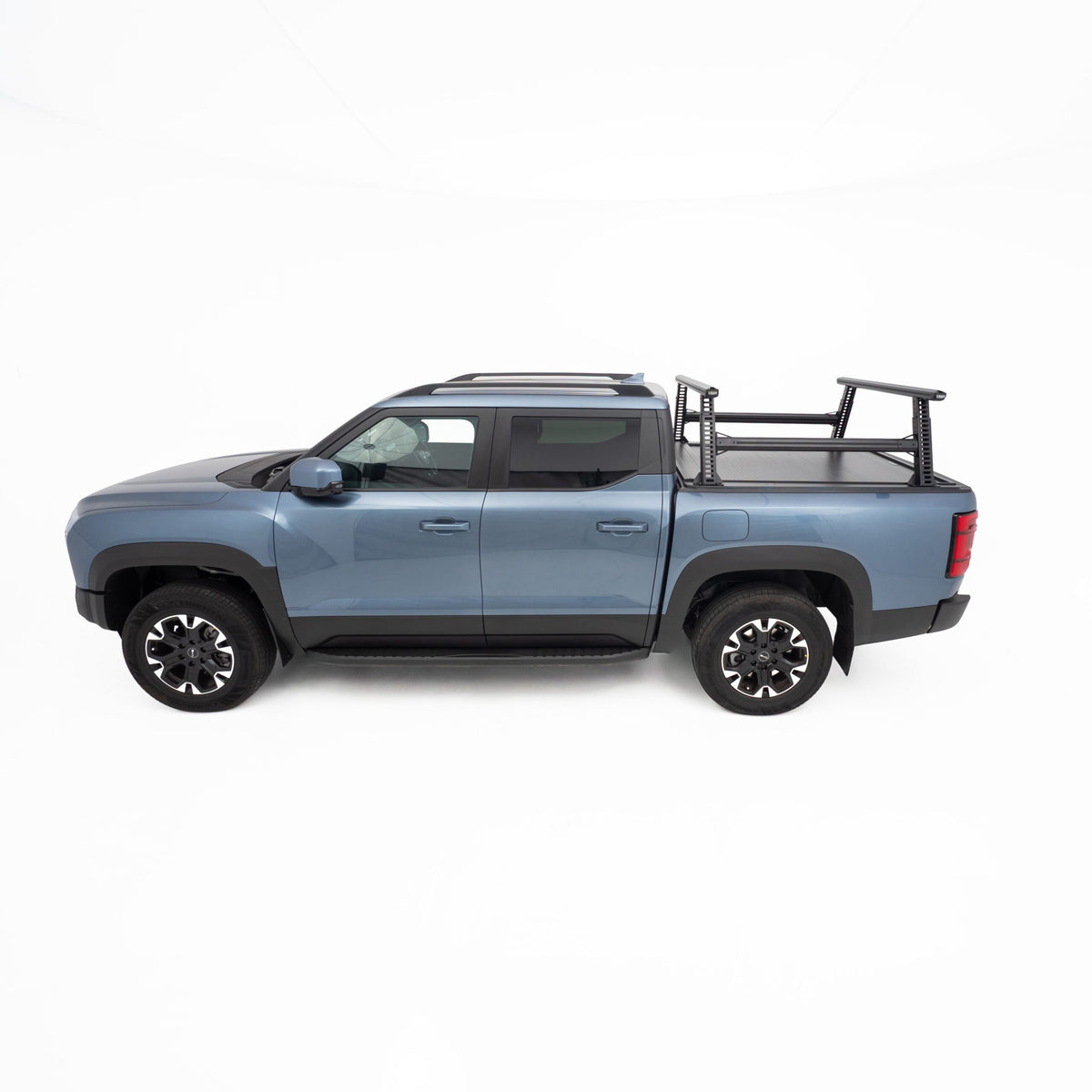

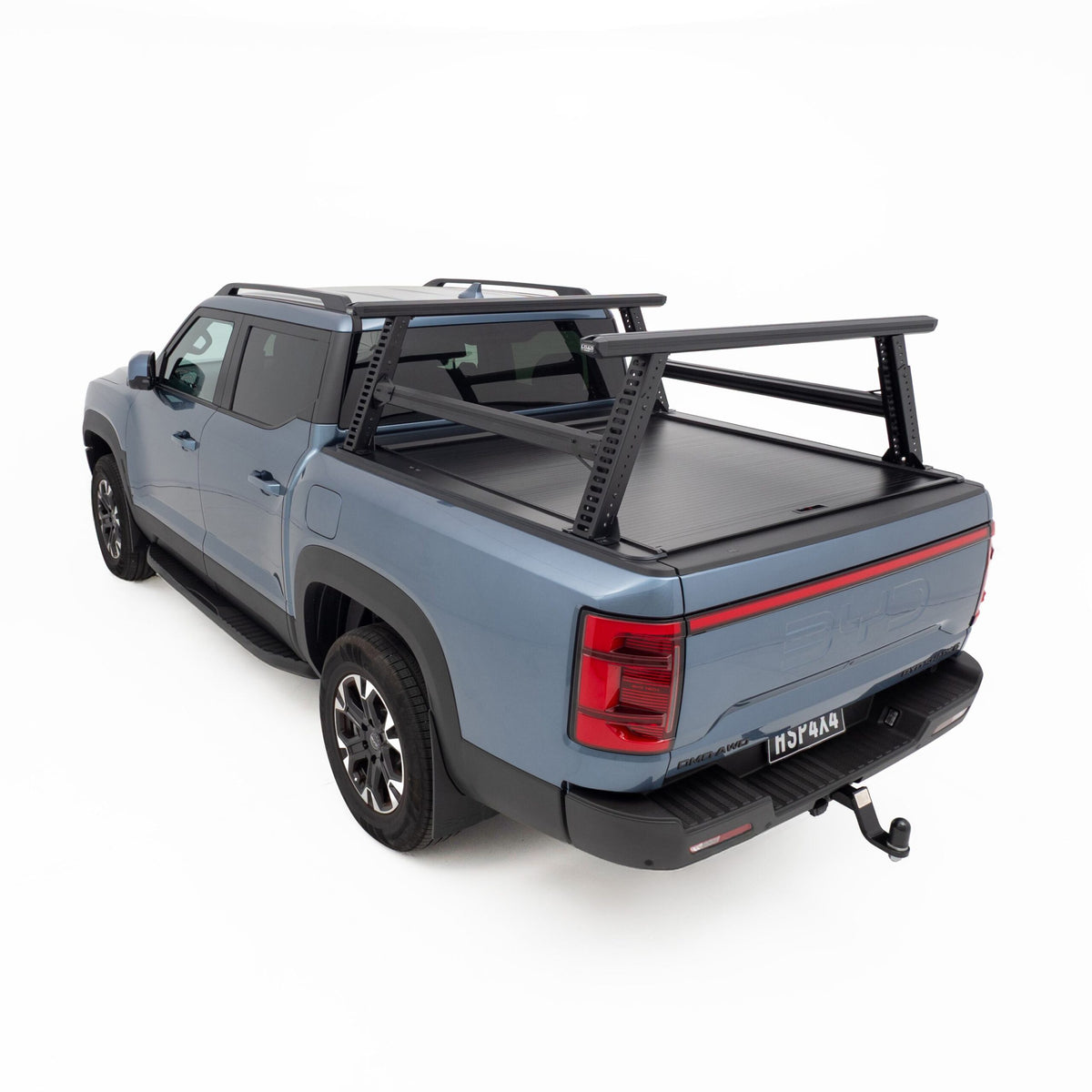

The HSP Load Rack Pro is fully adjustable BYD Shark Ladder Rack and represents the perfect blend of functionality and aesthetics. Designed for today’s worker and adventurer, the HSP Shark 6 ladder rack, in its full set, can support an industry-leading weight of up to 150kg dynamic and 300Kg static. It is also available in single rear sets to suit your A-frame sports bars and unique vehicle set ups. The Load Rack provides a more stylized finish than traditional tubular racks, and is ready to accommodate a variety of accessories from your favourite brands like Rhino Rack, Yakima, Front Runner, Thule, and more.

Features

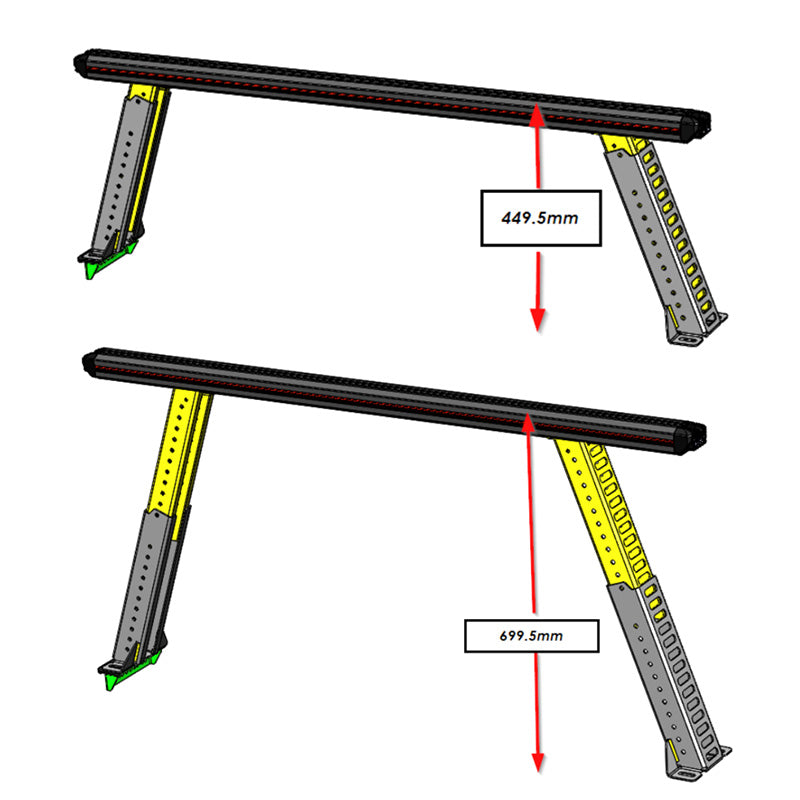

• Fully adjustable to suit your docking heights
• 150Kg Dynamic weight capacity (For complete kit)
• 300Kg Static weight capacity (For complete kit)
• Works seamlessly with Roll R Cover or can be mounted directly on tub

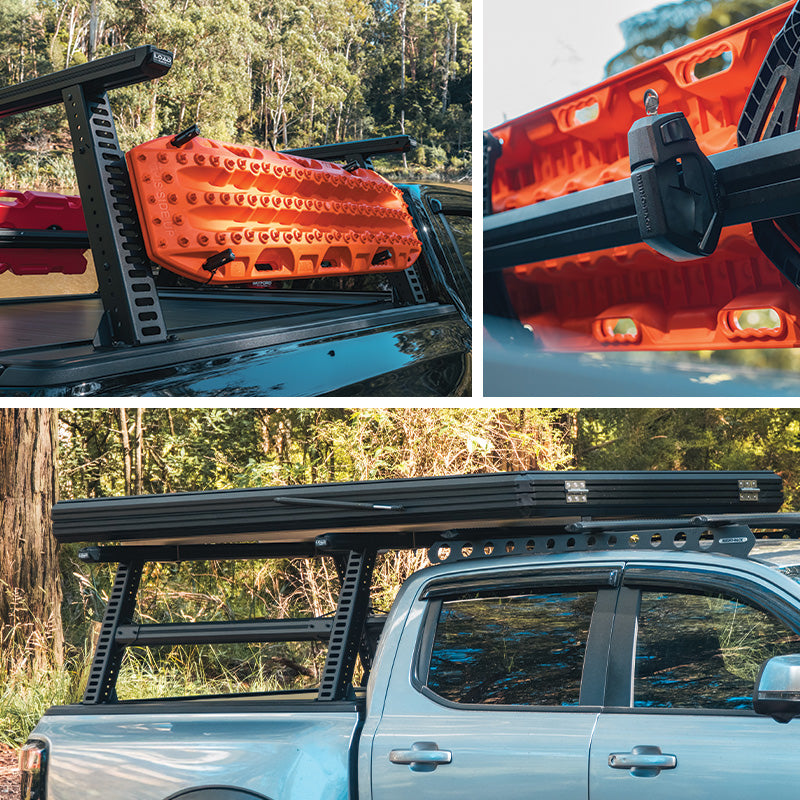

• Integrated 16 universal smart channels – suits leading accessories brands like Rhino Rack, Thule and Yakima
• Maximum compatible channel nut size: 21.9mm wide and 7mm thick
• Available as full kits or individual bars to suit different requirements

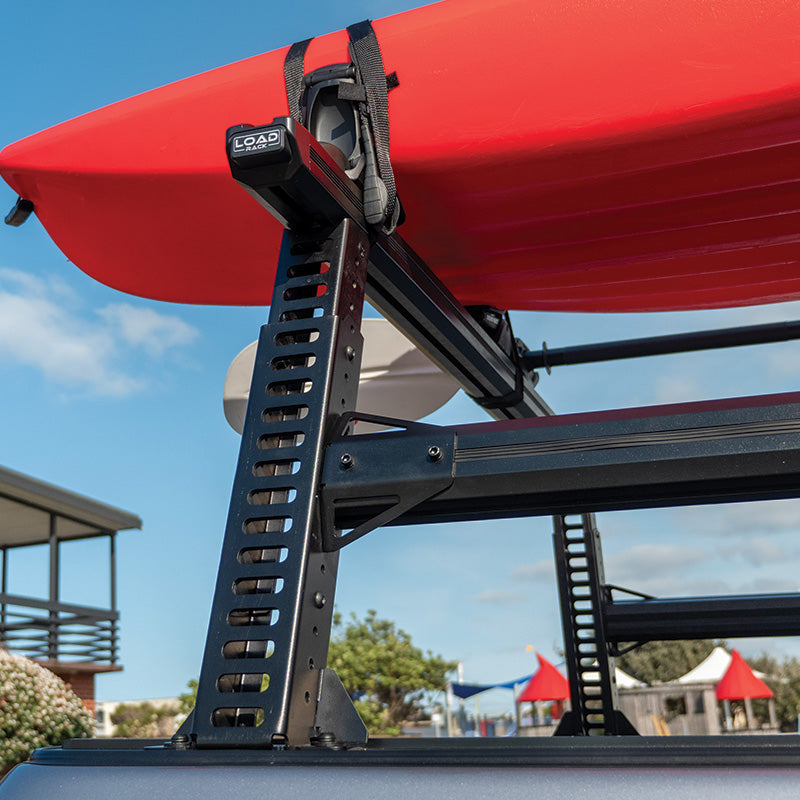

• Constructed from light weight alloy with a powder coated finish and steel legs
• Decreases GVM compared to traditional ladder racks
• Proudly Australian: 100% designed & made & sourced in Australia

Fitting

Please note the HSP Load Rack Pro is fully adjustable to suit your needs, ensuring low fitting times and is DIY friendly.

• Rear Bar/ Leg
• Complete Load Rack Pro Set (including joiner bar)

Warranty

Warranties are very low on HSP products so you can rest assured knowing that you have a quality product. However, in the instance something does go wrong we have some reassurances that if anything goes wrong, we have you covered.

• 2-year warranty on the unit (don’t forget to register it on the HSP website (hsputelids.com))
• Minimal moving parts make replacing any items simple
• Australian manufactured item meaning parts are readily available
• Australian based customer service team

Specifications

• Only suits BYD Shark 6 and not suitable with other Models
• Complete Kit Has 140 Tie Down Points:
  • 14 large points on each leg
  • 19 small points on each leg (both sides)
  • 4 on each joiner bar
• Single Leg Kit Has 72 Tie Down Points:
  • 14 Large points on each leg
  • 24 small points (12 each side of leg)
• Weight Capacity:
  • Single Legs: 60Kg Dynamic / 120Kg Static (Evenly Distributed Weight)
  • Complete Kit: 150Kg Dynamic / 300Kg Static (Evenly Distributed Weight)
