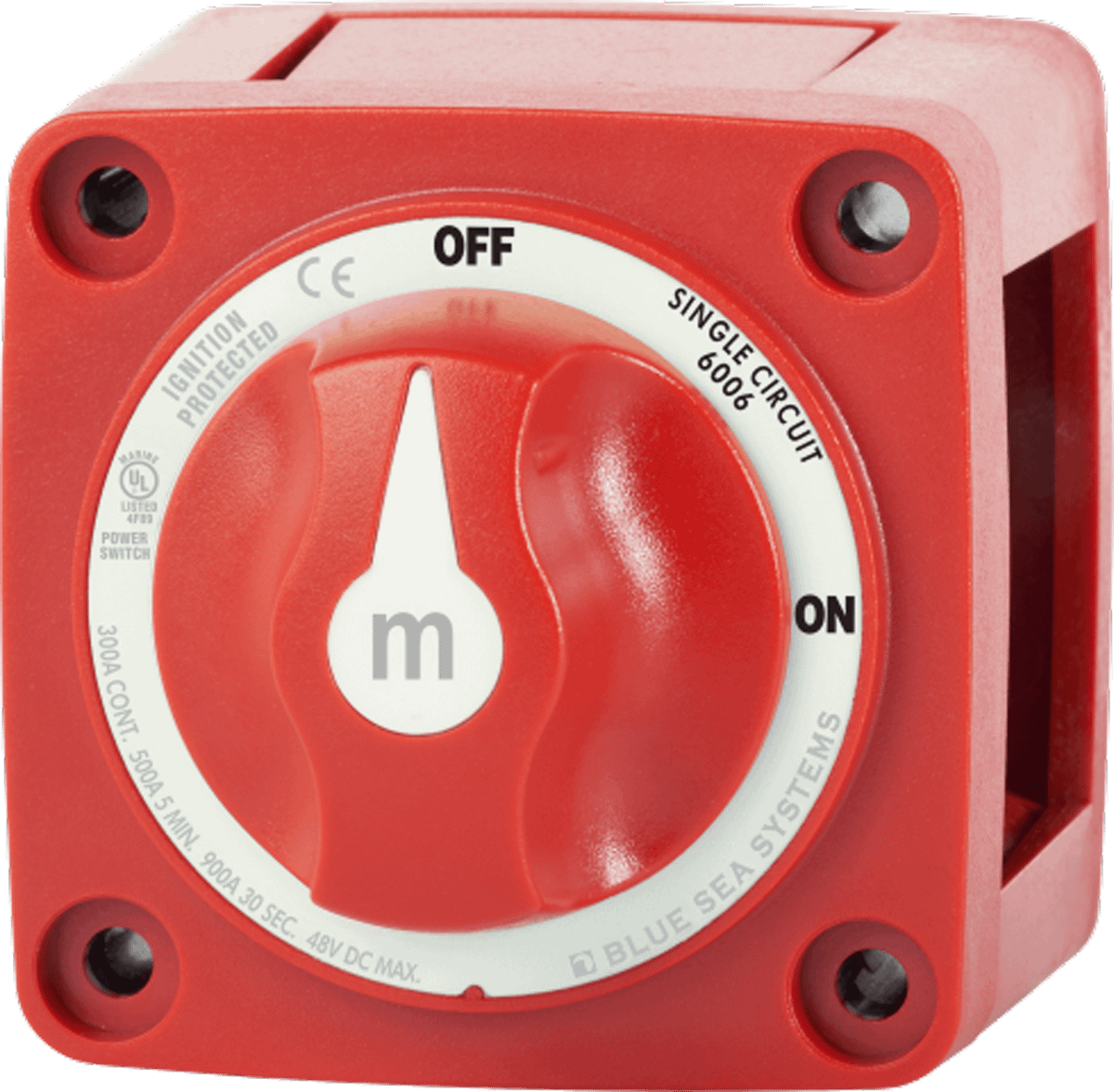

m-Series Mini On-Off Battery Switch with Knob – Red BS-6006

m-Series Mini On-Off Battery Switch with Knob – Red BS-6006

BS-6006

$57.00 AUD
$57.00 AUD
Sale Sold out

Features

Switches a single battery to a single load group

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts

Specification

m-Series Mini On-Off Battery Switch with Knob – Red
Switch Type Single Circuit ON-OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect No
Maximum Voltage 48V DC
Continuous Rating 300A
Intermittent Rating 500A (5 min)
Cranking Rating 10 Sec 1500A
Cranking Rating 1 min 775A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Terminal Stud Size 3/8″ – 16 (M12)
Terminal Stud Torque 120 in-lb (13.56 Nm)
Weight 0.29 kg
