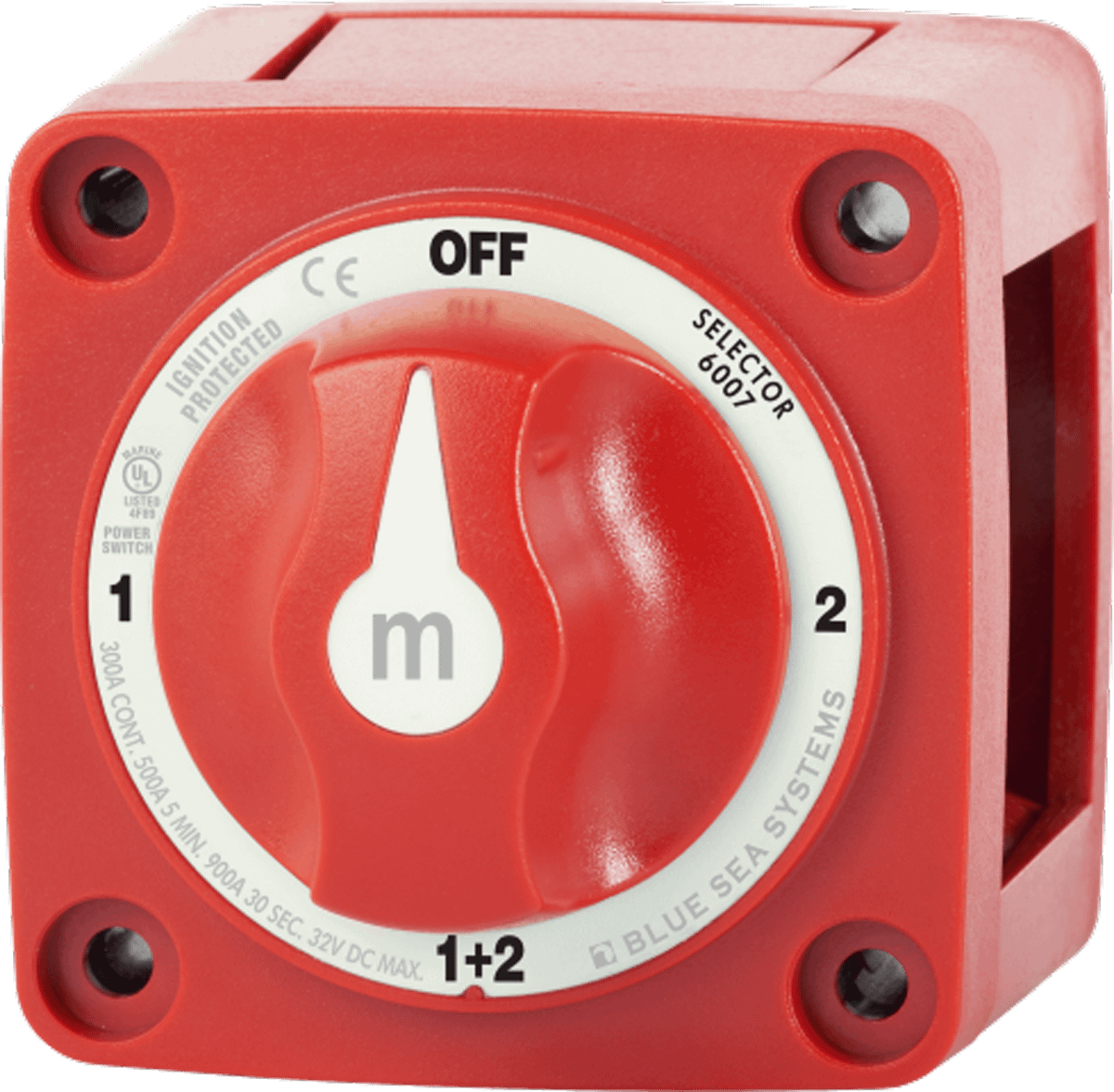

m-Series Mini Selector Battery Switch – Red BS-6007
m-Series Mini Selector Battery Switch – Red BS-6007
SKU:BS-6007
Regular price
$80.00 AUD
Regular price
Sale price
$80.00 AUD
Unit price
/
per
Couldn't load pickup availability
Features
m-Series Mini Selector Battery Switch – Red
- Switches isolated battery banks to all loads or combines battery banks to all loads.
- Make before break contact design allows switching between battery banks without power interruption.
Specifications
| m-Series Mini Selector Battery Switch – Red | |
|---|---|
| Switch Type | Selector 4 Position |
| Color | Red |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 Sec | 1500A |
| Cranking Rating 1 min | 775A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Terminal Stud Size | 3/8″ – 16 (M12) |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.35 kg |
